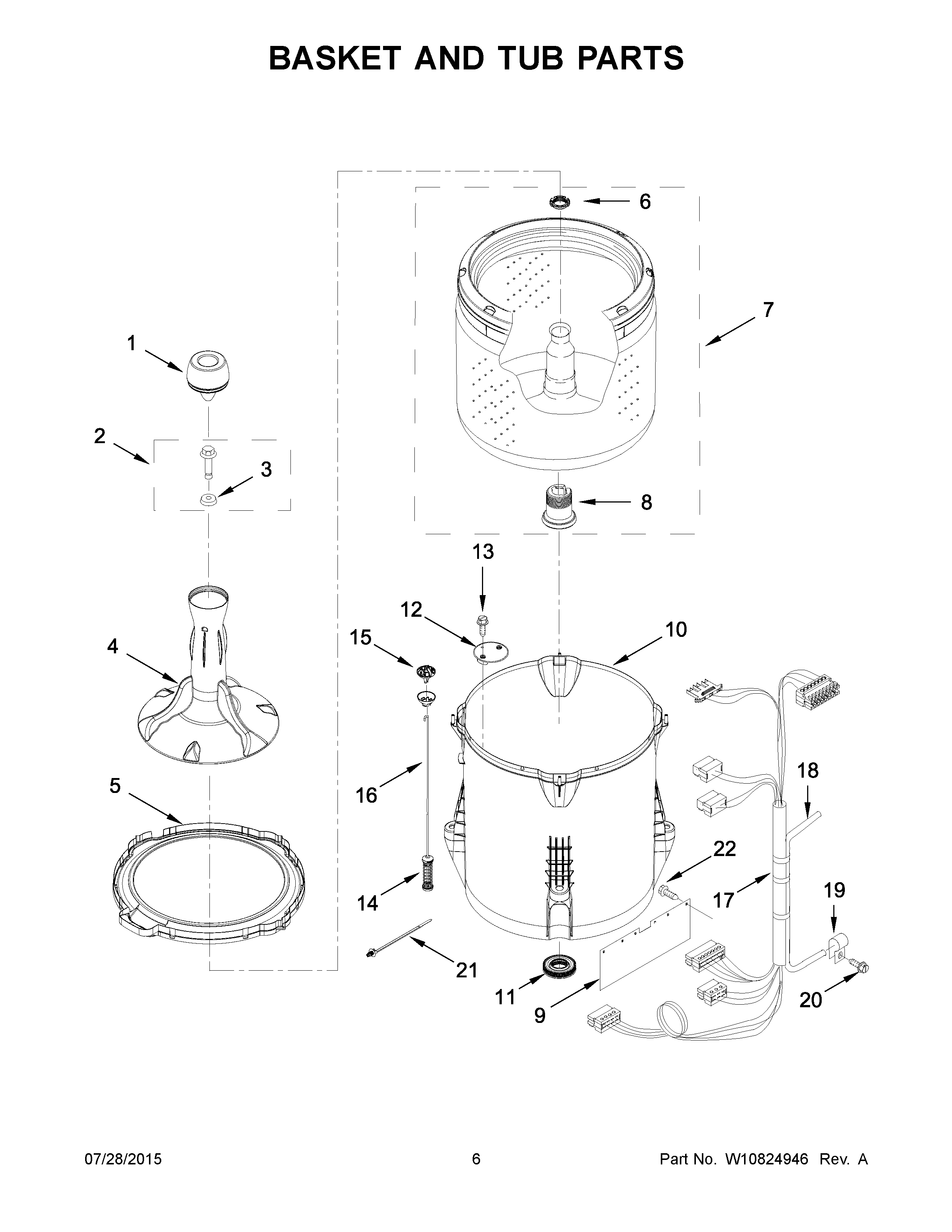

4KNTW4430EQ0 04 – BASKET AND TUB PARTS

Products

Position	Product
1	MAY W10680192
2	SCREW & WASHER
3	MAY 3949550
4	MAY W10680208
5	MAY W10215107
6	MAY 21366
7	MAY W10358261
8	Block, Drive
9	MAY W10339098
10	TUB (INCLUDES TUB SEAL)
11	MAY W10006371
12	MAY W10215093
13	Screw
14	MAY W10748952
15	BALL, SUSPENSION (SET OF 4 – INCLUDES SUSPENSION BUSHINGS)
16	BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
17	MAY W10746346
18	MAY W10431037
19	CLAMP, CABLE
20	SCREW
21	MAY W10298887
22	MAY W10429200
