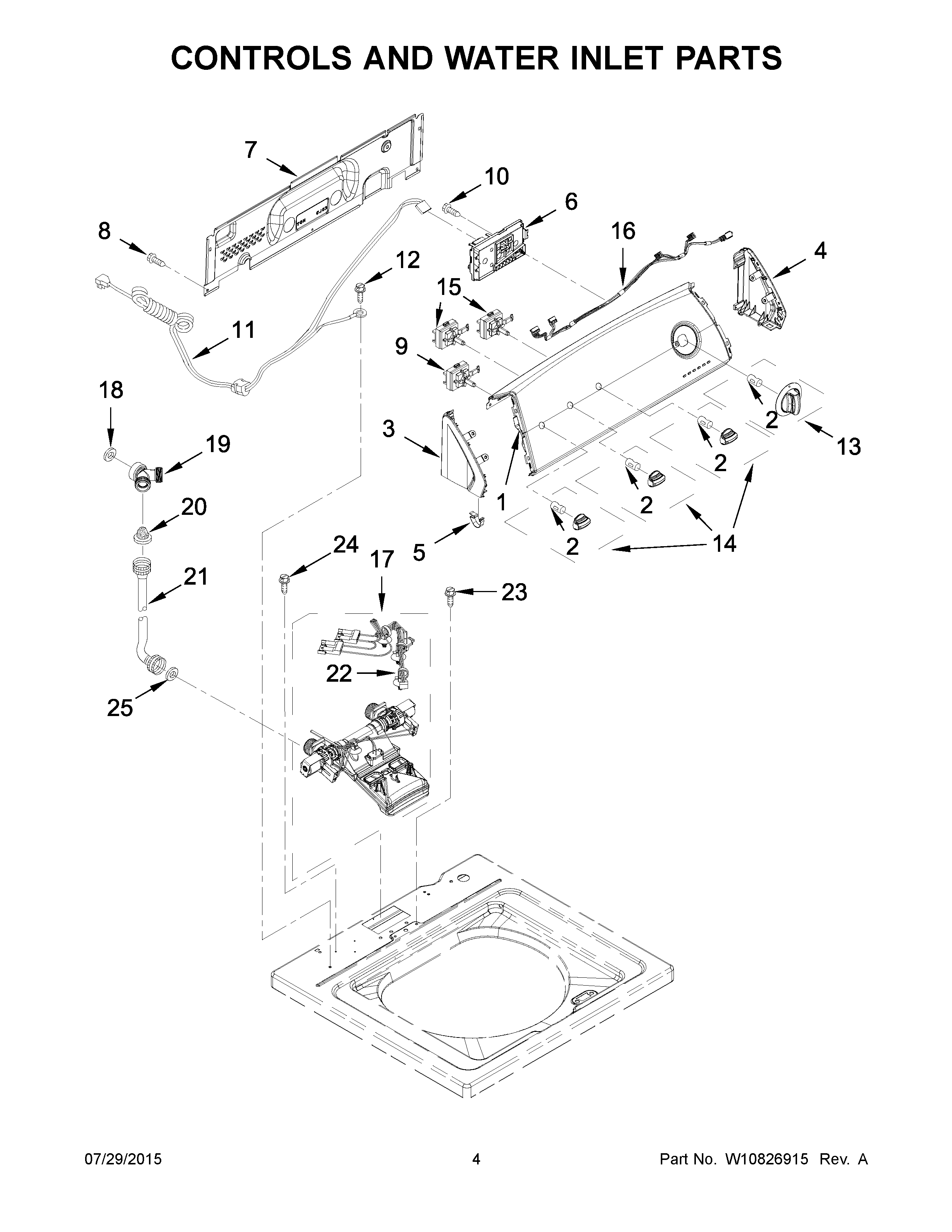

4KNTW4530EQ0 03 – CONTROLS AND WATER INLET PARTS

4KNTW4530EQ0 03 – CONTROLS AND WATER INLET PARTS

Written by

in

4KNTW4530EQ0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NI10A CORD LOCK
NI10A CORD ADAPTER (TYPE B)
NI10A CORD ADAPTER (BRITISH)
NI10A CORD ADAPTER (EUROPEAN)
1MAY W10736642
2CLIP, SPRING
3MAY W10251358
4MAY W10251355
5MAY 8312709
6MAY W10758698
7MAY W10461159
8MAY 1157158
9SWITCH, ROTARY ENCODER
10SCREW,8-18 X 3/8
11MAY W10422755
12Screw, 10-32 x 5/8
13KNOB ASSEMBLY, TIMER
14KNOB ASSEMBLY, CONTROL
15MAY W10285511
16MAY W10291183
17MAY W10683676
18MISCELLANEOUS PARTS BAG, WASHER, HOSE ADAPTER
19MISCELLANEOUS PARTS BAG, CONNECTOR, HOSE -“Y“
20WASHER, FILTER
21AMAY W10194211
21MAY W10194210
22MAY W10684972
23Screw
24MAY W10213953
25ACCESSORY PARTS, WASHER, HOSE
