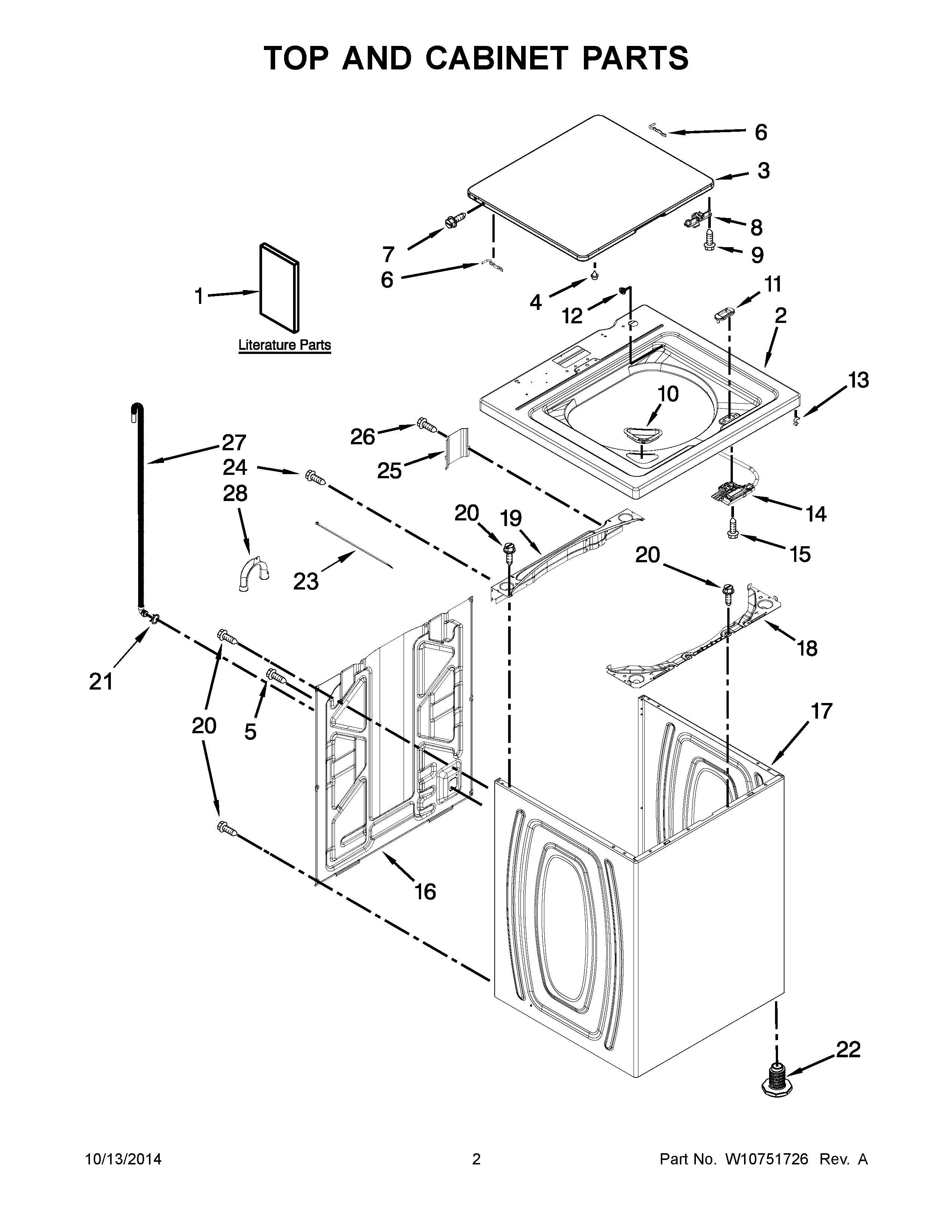

4KNTW4630DQ0 02 – TOP AND CABINET PARTS

4KNTW4630DQ0 02 – TOP AND CABINET PARTS

Written by

in

4KNTW4630DQ0 02 – TOP AND CABINET PARTS

Products

Position	Product
1B	MAY W10547679
1A	MAY W10725997
1	MAY W10589601
2	TOP
3	ASSEMBLY, LID (WHITE)
4	MAY 9724509
5	SCREW
6	HINGE, LID
7	Screw And Washer
8	MAY W10240513
9	SCREW
10	MAY W10192089
11	MAY W10392041
12	Hinge, Bearing (2)
13	Clip, Wire (4)
14	LOCK, LID
15	Screw
16	PANEL, REAR
17	MAY W10478060
18	MAY W10215098
19	BRACE, CABINET TOP – REAR
20	MAY 1157158
21	MAY 356138
22	MAY W10397994
23	TIE, CABLE
24	SCREW
25	MAY W10676061
26	Screw, 10-32 x 5/8
27	HOSE, OUTER DRAIN ASSEMBLY
28	MAY W10280024
