4KNTW4630DQ0 04 – BASKET AND TUB PARTS

4KNTW4630DQ0 04 – BASKET AND TUB PARTS

Written by

in

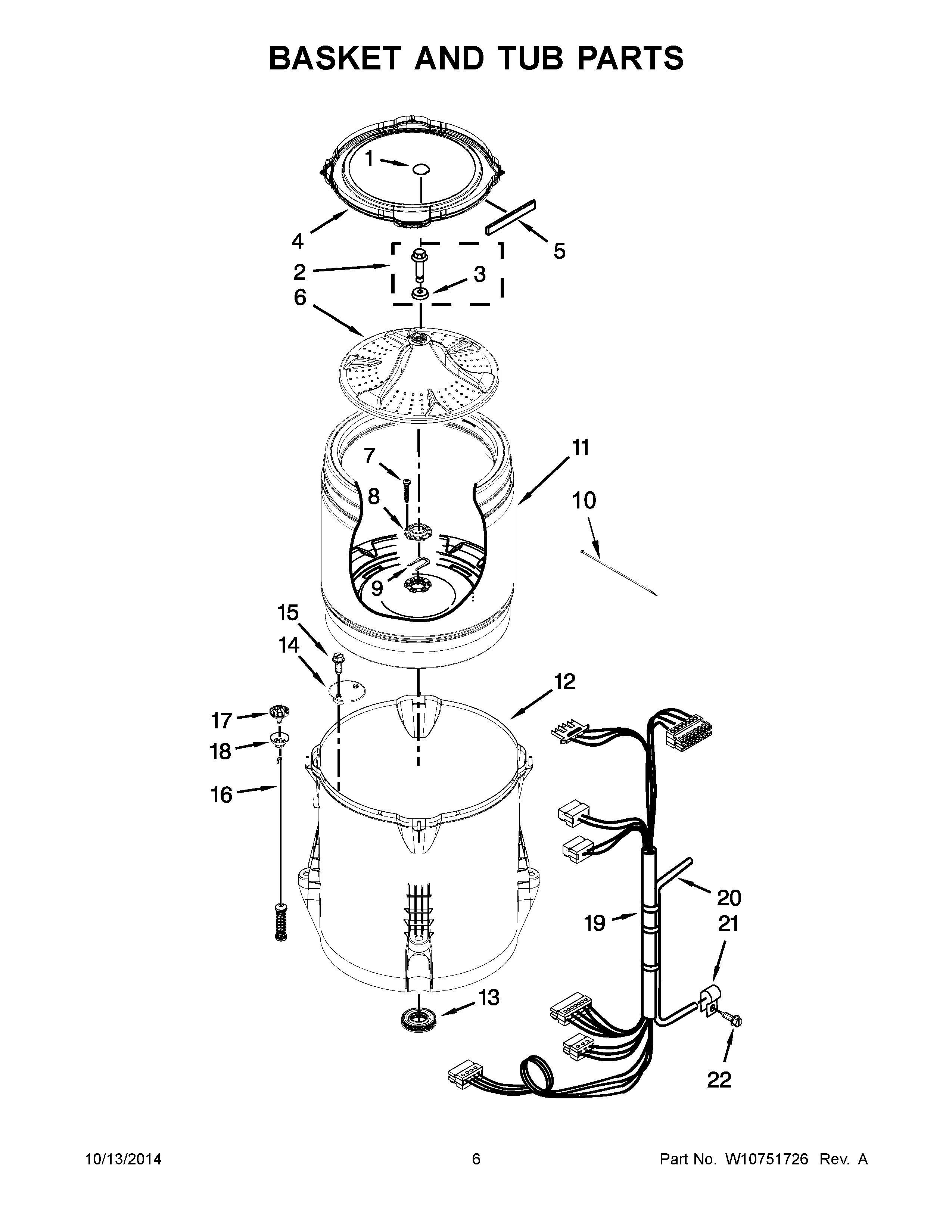

4KNTW4630DQ0 04 – BASKET AND TUB PARTS

Products

PositionProduct
1MAY W10305259
2SCREW & WASHER
3MAY 3949550
4RING, TUB (INCLUDES ITEM 4)
5MAY W10205824
6MAY W10215115
7SCREW
8HUB – DRIVEN, BASKET
9RETAINER, DRIVE BLOCK
10MAY W10298887
11MAY W10521297
12TUB
13MAY W10006371
14MAY W10215093
15Screw
16DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES ITEMS 15 & 16)
17BALL, SUSPENSION (SET OF4 – INCLUDES SUSPENSION BUSHINGS)
18BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
19MAY W10504122
20MAY W10429300
21CLAMP, CABLE
22SCREW
