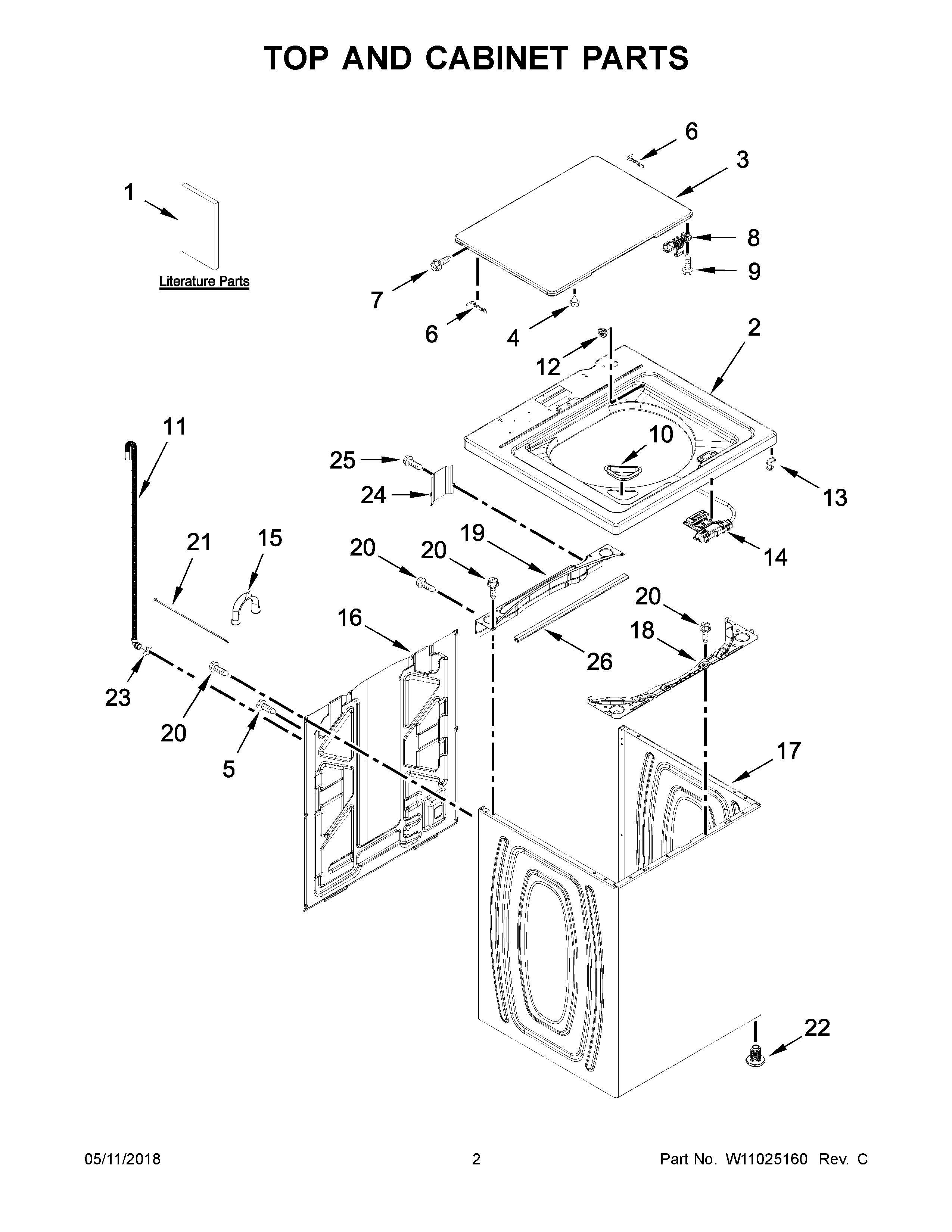

4KNTW4705FW0 02 – TOP AND CABINET PARTS

4KNTW4705FW0 02 – TOP AND CABINET PARTS

Written by

in

4KNTW4705FW0 02 – TOP AND CABINET PARTS

Products

PositionProduct
1AOWNERS MANUAL
1CQUICK START GUIDE
1INSTALLATION INSTRUCTIONS
1BTECH SHEET
2MAY W10686433
3LID & BUMPER ASSEMBLY (WHITE)
4MAY 9724509
5SCREW
6HINGE, LID
7Screw And Washer
8MAY W10714899
9SCREW
10MAY W10192089
11HOSE, OUTER DRAIN ASSEMBLY
12Hinge, Bearing (2)
13Clip, Wire (4)
14LATCH, LID LOCK ASSEMBLY
15MAY W10280024
16PANEL, REAR
17MAY W10478060
18CHANNEL, TOP FRONT (WHITE)
19BRACE, CABINET TOP – REAR
20SCREW
21TIE, CABLE
22FOOT ASSEMBLY, LEVELING
23MAY 356138
24MAY W10676061
25Screw, 10-32 x 5/8
26BRACE-GUARD, CABINET REAR TOP
