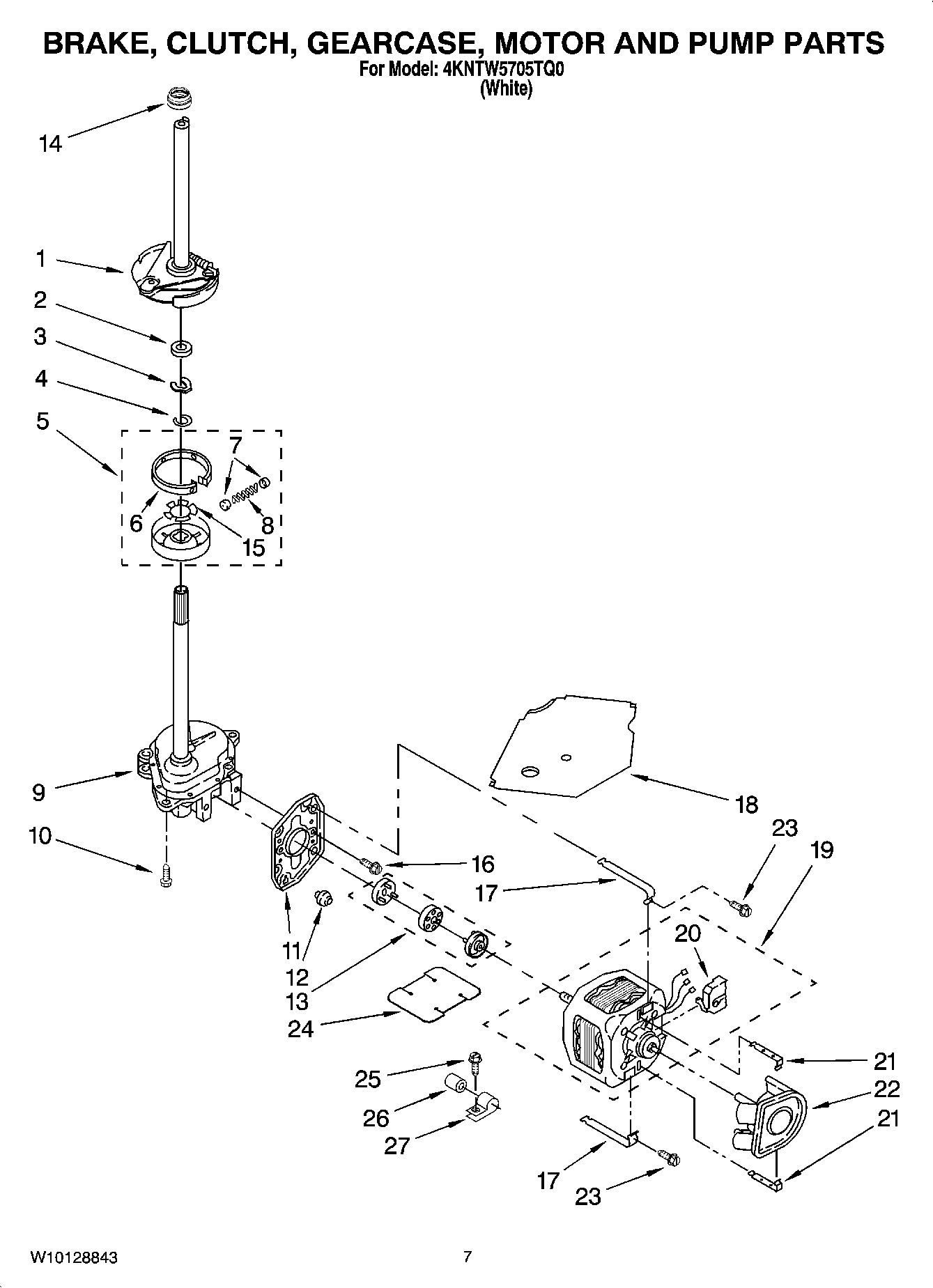

4KNTW5705TQ0 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

4KNTW5705TQ0 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Written by

in

4KNTW5705TQ0 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1MAY 388952
2MAY 63292
3MAY 62697
4MAY 63283
5MAY 3951311
6Band And Lining (Includes Illus. 7 & 8)
7MAY 62646
8SPRING & DAMPER ASSEMBLY
9Gearcase (Complete) (Refer To Page 12 For Further Breakdown)
10Screw, 5/16-24 x 5/8
11MAY 62611
12MAY 62691
13Coupling, Motor & Isolating
14MAY 8577374
15MAY 3355454
16MAY 3400516
17MAY 3349637
18MAY 3362089
19MAY 3353846
20MAY 8529896
21Retainer, Pump
22MAY 3363394
23MAY 3387485
24MAY 3946532
25Screw, Mixing Valve Mounting
26MAY 8572717
27MAY 3949496
