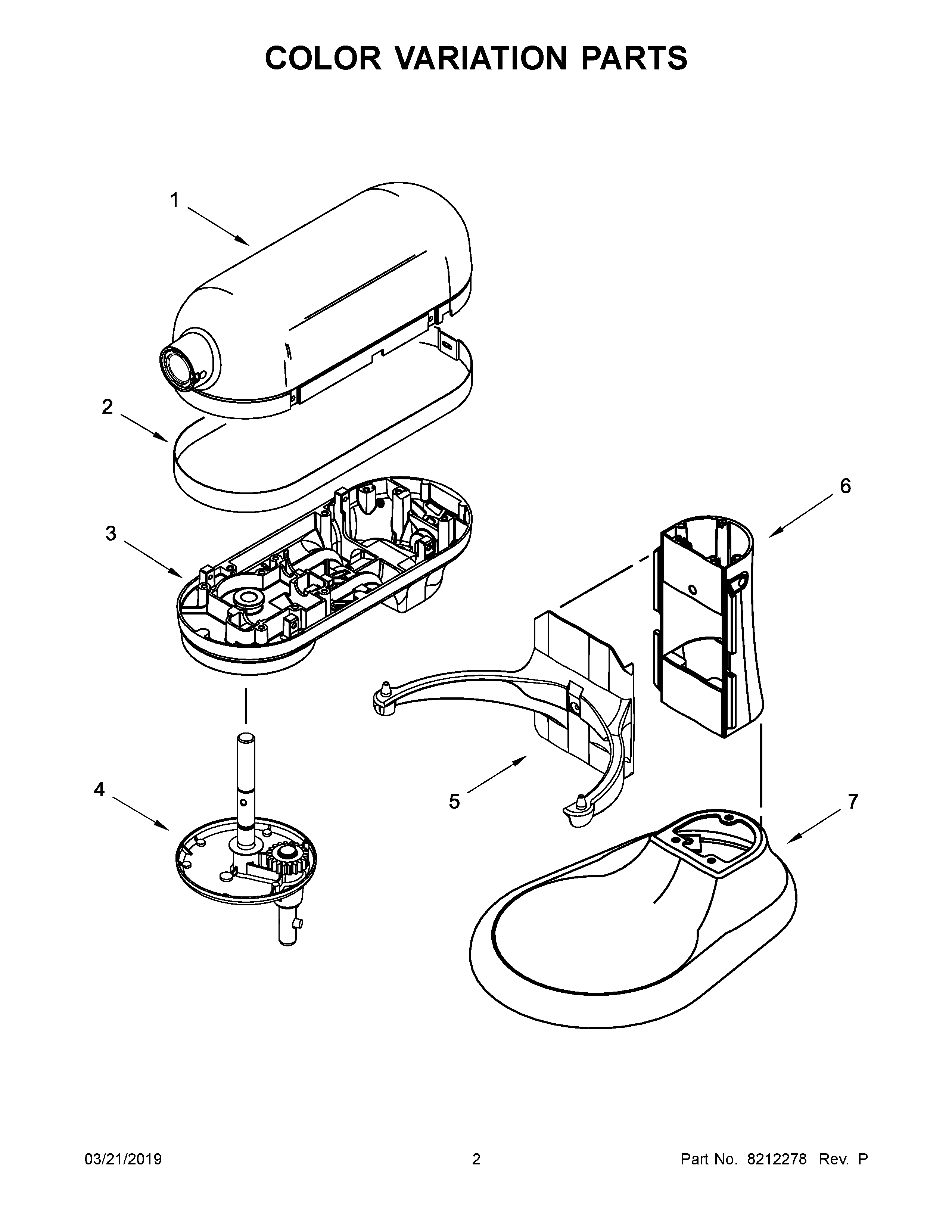

4KP26M1XES5 02 – COLOR VARIATION PARTS

4KP26M1XES5 02 – COLOR VARIATION PARTS

Written by

in

4KP26M1XES5 02 – COLOR VARIATION PARTS

Products

Position	Product
1	9708658 Whirlpool Housing
1K	Motor Housing (Cayenne)
1N	Motor Housing (Azure Blue)
1M	Motor Housing (Seashell)
1Y	MOTOR HOUSING (GREEN APPLE)
1AE	Motor Housing (Tangerine)
1G	9707981 Whirlpool Housing
1H	9709131 Whirlpool Housing
1B	Motor Housing (Cinnamon)
1D	Motor Housing (Licorice)
1W	MOTOR HOUSING (PISTACHIO)
1Z	WPW10453625 Whirlpool Housing
1AJ	MOTOR HOUSING (GUAVA GLAZE)
1I	Motor Housing (Bronze Pearl)
1X	MOTOR HOUSING (BOYSENBERRY)
1L	Motor Housing (Silver Sage)
1AF	MOTOR HOUSING (LIQUID GRAPHITE)
1J	MOTOR HOUSING (COPPER PEARL)
1F	9708749 Whirlpool Housing
1C	9708711 Whirlpool Housing
1A	MOTOR HOUSING (BLUE STEEL)
1AL	MOTOR HOUSING (BLUE VELVET)
1AC	Motor Housing (Majestic Yellow)
1AD	MOTOR HOUSING (PINK)
1AN	W10726426 Whirlpool Housing
1U	MOTOR HOUSING (BLUE WILLOW)
1V	W10114555 Whirlpool Housing
1S	MOTOR HOUSING (CAVIAR)
1T	MOTOR HOUSING (BUTTERCUP)
1AK	MOTOR HOUSING (MATTE FRESH LINEN)
1AA	9709571 Whirlpool Housing Assembly
1AM	MOTOR HOUSING (TOFFEE DELIGHT)
1AG	MOTOR HOUSING (AQUA SKY)
1P	MOTOR HOUSING (WILLIAMS SONOMA GREEN)
1AI	MOTOR HOUSING (MATTE MILKSHAKE)
1AH	W10636077 Whirlpool Housing
1AB	Motor Housing (Cobalt Blue)
1O	9705300 Whirlpool Housing Assembly
1Q	9705296 Whirlpool Housing
1E	9703433 Whirlpool Housing
1R	9703311 Whirlpool Housing Assembly
2	9708371 Whirlpool Trim Band
3A	9708737 Whirlpool Gearcase
3C	WPL 9708718
3AM	WPL W11255400
3P	WPL W10114301
3B	WPL 9709073
3I	WPL 9709180
3L	WPL 9709209
3N	WPL 9709801
3M	WPL 9709820
3AJ	WPL W11113689
3AH	W10636082 Whirlpool Gearcase
3F	9708756 Whirlpool Gearcase Assembly
3AC	Lower Gearcase (Majestic Yellow)
3AL	LOWER GEARCASE (MATTE VINTAGE BLUE)
3AK	WPL W11255375
3H	9709138 Whirlpool Gearcase
3K	9709328 Whirlpool Gearcase
3	WPL 9708665
3AD	W10494344 Whirlpool Gearcase
3W	WPL 9708097
3Z	WPW10453632 Whirlpool Gearcase
3E	Lower Gearcase (Metallic Chrome)
3O	9706331 Whirlpool Gearcase
3R	WP9706047 Whirlpool Gearcase
3T	WPL W10206603
3AE	9708070 Whirlpool Gearcase
3G	9707974 Whirlpool Gearcase
3D	GEARCASE
3AN	W10726433 Whirlpool Gearcase
3AI	W11157089 Whirlpool Gearcase
3AG	W10577750 Whirlpool Gearcase
3Q	9706311 Whirlpool Gearcase
3U	WPL W10114581
3S	WPL 9706346
3AF	W10513724 Whirlpool Gearcase Assembly
3J	9709159 Whirlpool Gearcase Assembly
3X	W10343980 Whirlpool Gearcase Assembly
3AB	Lower Gearcase (Cobalt Blue)
3V	WPL W10114562
3Y	LOWER GEARCASE (GREEN APPLE)
3AA	9709578 Whirlpool Gearcase
4AK	W11255378 Whirlpool Planetary Mixer
4P	WPL W10114298
4AJ	WPL W11113697
4AM	W11255403 Whirlpool Planetary Assembly
4AH	PLANETARY
4S	WPL 970818
4AB	Planetary (Cobalt Blue)
4O	WP9708180 Whirlpool Planetary Gear
4Q	WP9708176 Whirlpool Planetary Mixer
4E	WP9708175 Whirlpool Planetary Gear
4R	WP9708172 Whirlpool Planetary Assembly
4AD	W10494156 Whirlpool Planetary Mixer
4AA	WP9709575 Whirlpool Planetary Mixer
4AL	PLANETARY (MATTE VINTAGE BLUE)
4	Planetary (Meringue)
4G	WP9707977 Whirlpool Planetary Gear
4AC	9708181 Whirlpool Planetary
4A	9708734 Whirlpool Planetary
4F	WP9708753 Whirlpool Planetary Gear
4B	Planetary (Cinnamon)
4H	Planetary (Brass Pearl)
4I	Planetary (Bronze Pearl)
4K	Planetary (Cayenne)
4N	Planetary (Azure Blue)
4M	Planetary (Seashell)
4AE	9708189 Whirlpool Planetary Mixer
4D	W11123171 Whirlpool Planetary Assembly
4AN	W10726430 Whirlpool Planetary Mixer
4AI	PLANETARY (MATTE MILKSHAKE)
4AG	W10577733 Whirlpool Planetary Gear
4J	9709156 Whirlpool Planetary Assembly
