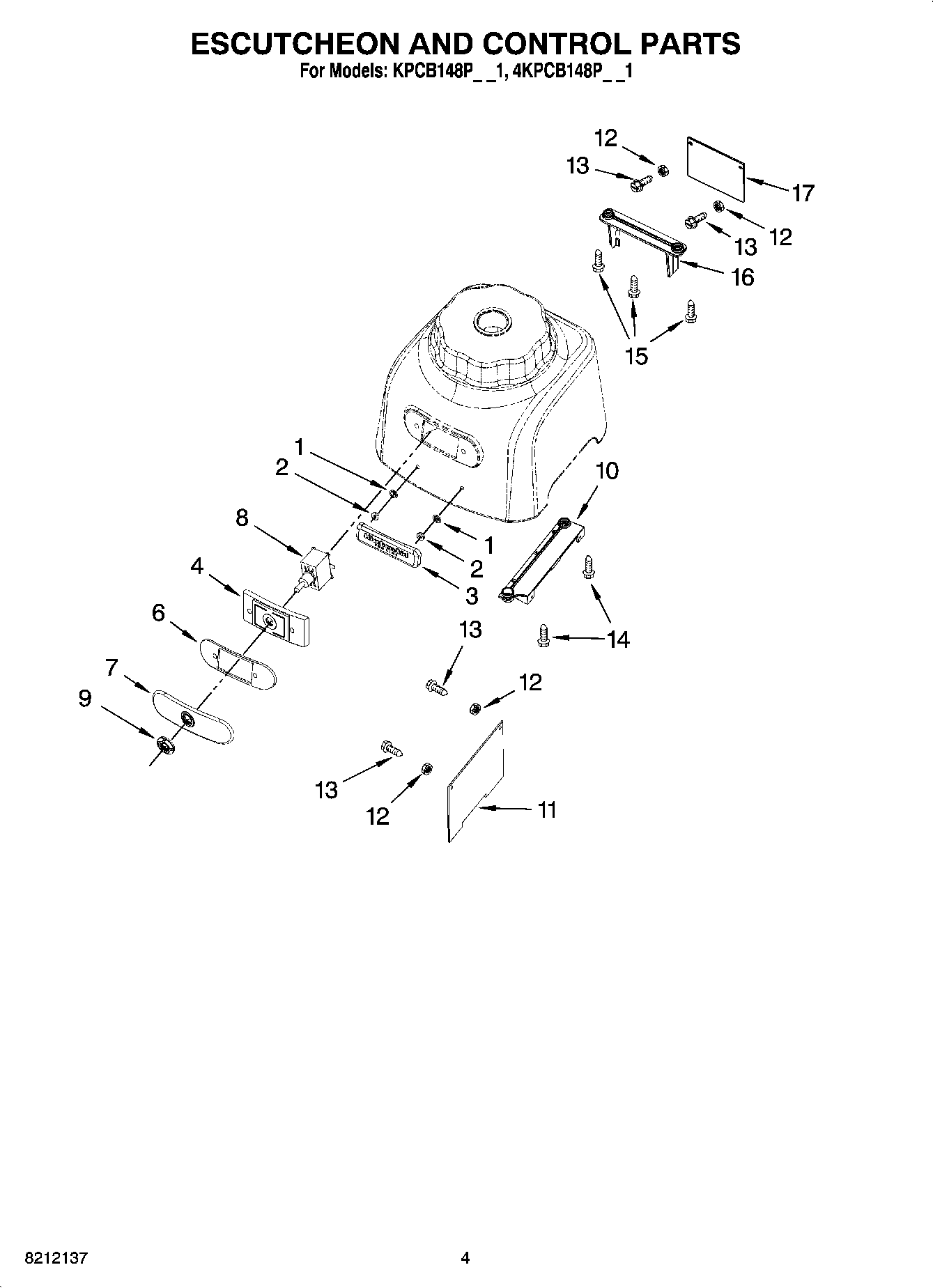

4KPCB148PPM1 03 – ESCUTCHEON AND CONTROL PARTS

Products

Position	Product
1	Seal, Nameplate
2	Nut, Washer
3	Nameplate
4	Plate, Switch
6	Seal, Escutcheon
7	Escutcheon
8	Switch, On/Off
9	Nut, Bezel
10	Mount, Main PCB
11	Main PCB, 1-speed
12	Nut, Plastic
13	Screw, Plastic
14	Screw, 10 x 16
15	Screw, 10 x 16
16	Mount, EMC
17	EMC-PC Board
