4KPCB148SPM1 03 – ESCUTCHEON AND CONTROL PARTS

4KPCB148SPM1 03 – ESCUTCHEON AND CONTROL PARTS

Written by

in

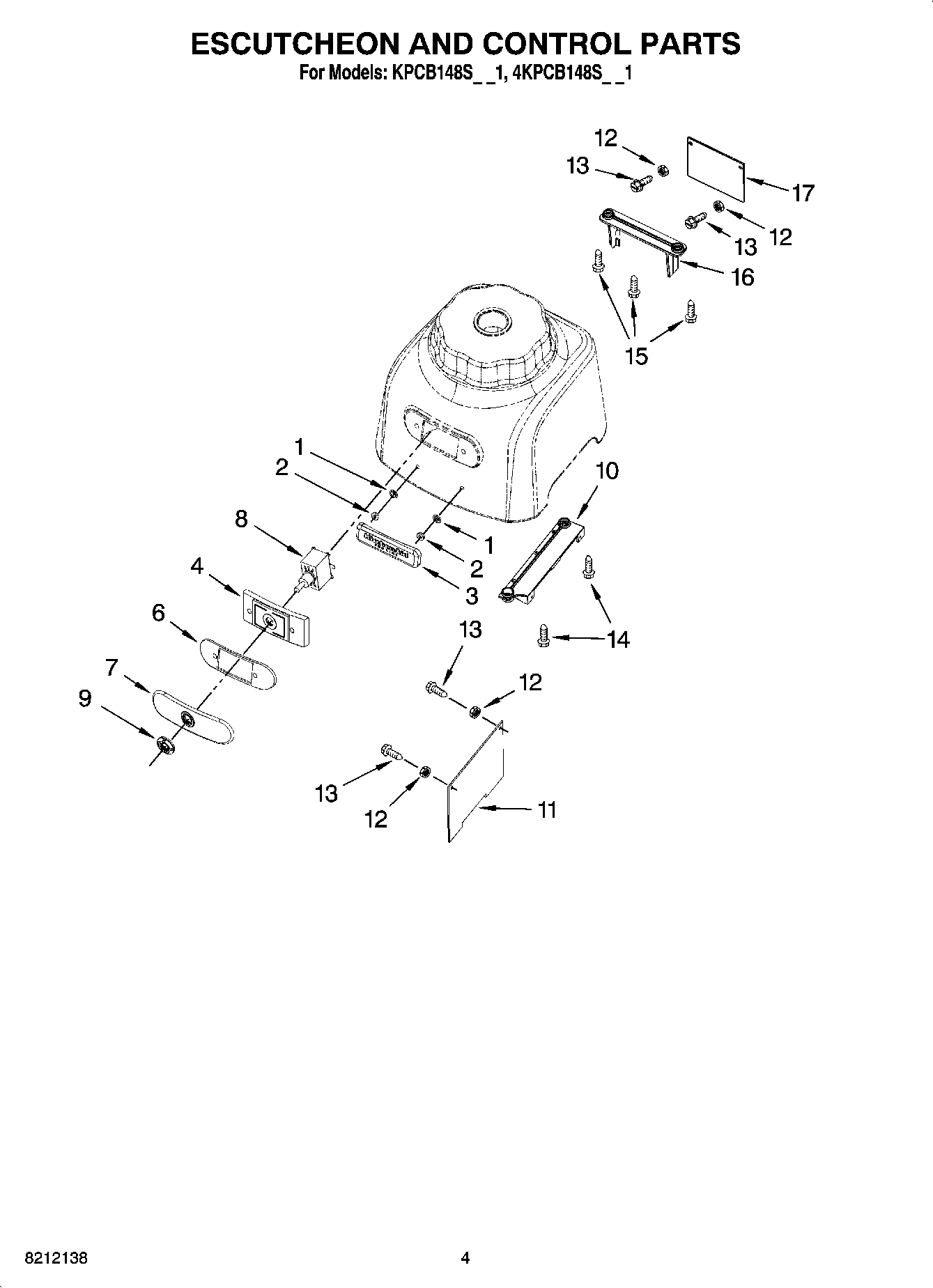

4KPCB148SPM1 03 – ESCUTCHEON AND CONTROL PARTS

Products

PositionProduct
1Seal, Nameplate
2Nut, Washer
3Nameplate
4Plate, Switch
6Seal, Escutcheon
7Escutcheon
8Switch, On/Off
9Nut, Bezel
10Mount, Main PCB
11Main PCB, 1-speed
12Nut, Plastic
13Screw, Plastic
14Screw, 10 x 16
15Screw, 10 x 16
16Mount, EMC
17EMC-PC Board
