4KPCB348SPM0 02 – MOTOR AND HOUSING PARTS
Written by
in

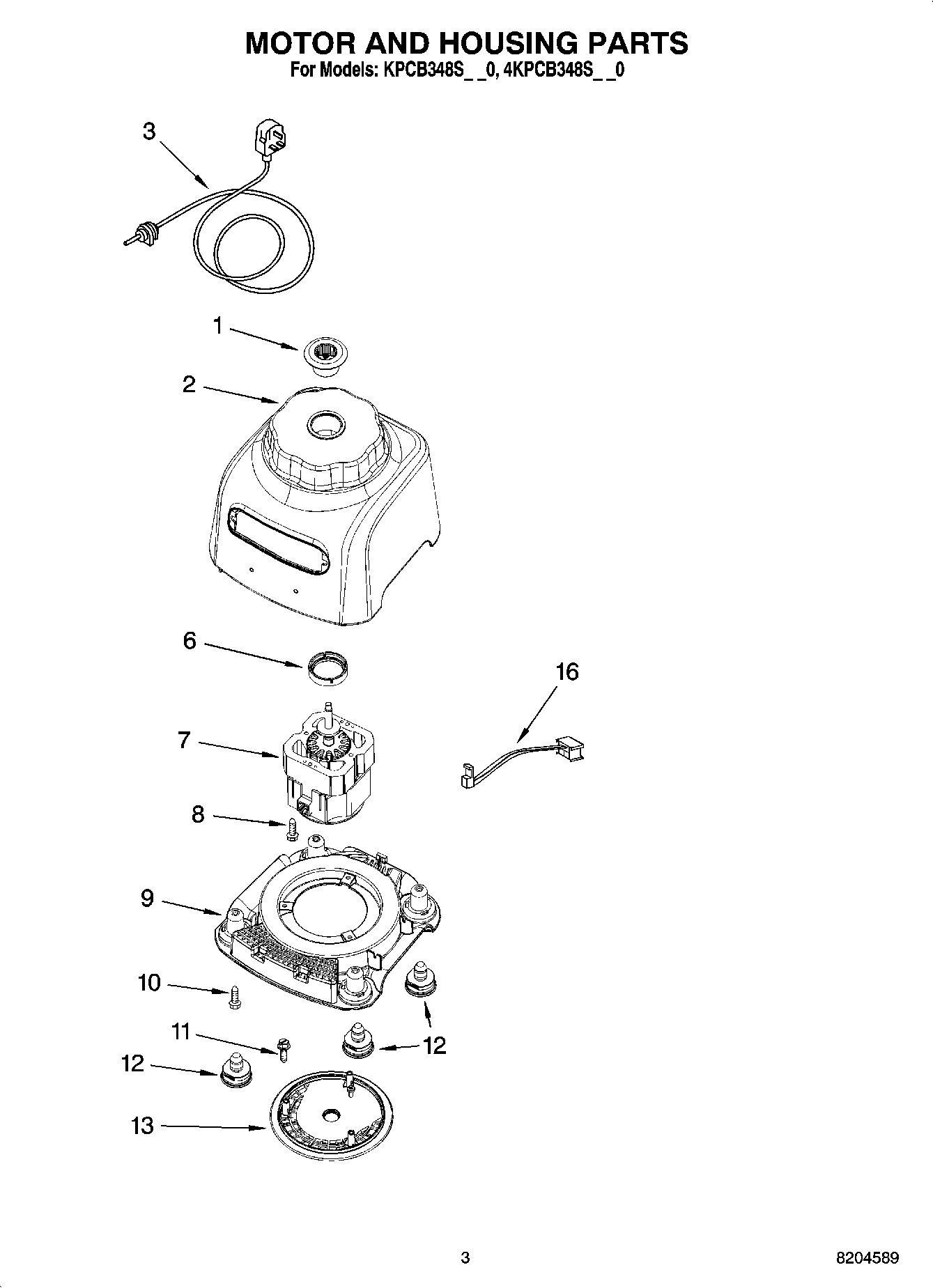

4KPCB348SPM0 02 – MOTOR AND HOUSING PARTS
Products
| Position | Product |
|---|---|
| 1 | Coupler, Lower |
| 2 | Housing |
| 3 | Cord, Power |
| 6 | Seal, Motor |
| 7 | Motor |
| 8 | Screw, 10 x 16 |
| 9 | Base |
| 10 | Screw, 10 x 16 |
| 11 | Screw, 8 x 3/8 |
| 12 | Pedestal Foot |
| 13 | Cover, Base |
| 16 | Sensor, Hall Effect |
