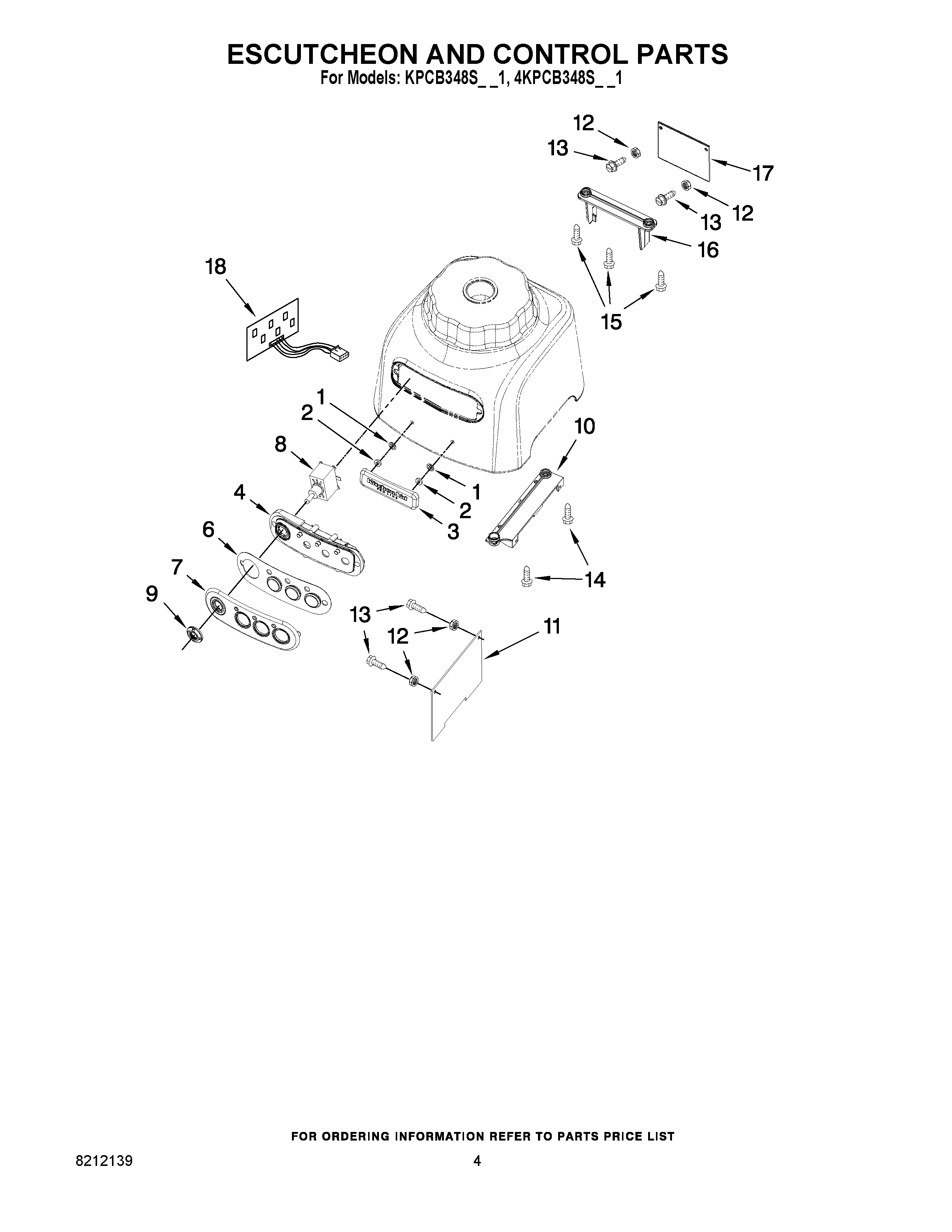

4KPCB348SPM1 03 – ESCUTCHEON AND CONTROL PARTS

Products

Position	Product
1	Seal, Nameplate
2	Nut, Washer
3	Nameplate
4	Switch, Mount
6	Seal, Escutcheon
7	Escutcheon
8	Switch, On/Off
9	Nut, Bezel
10	Mount, Main PCB
11	Main PCB
12	Nut, Plastic
13	Screw, Plastic
14	Screw, 10 x 16
15	Screw, 10 x 16
16	Mount, EMC
17	EMC-PC Board
18	Switch PCB Assy
