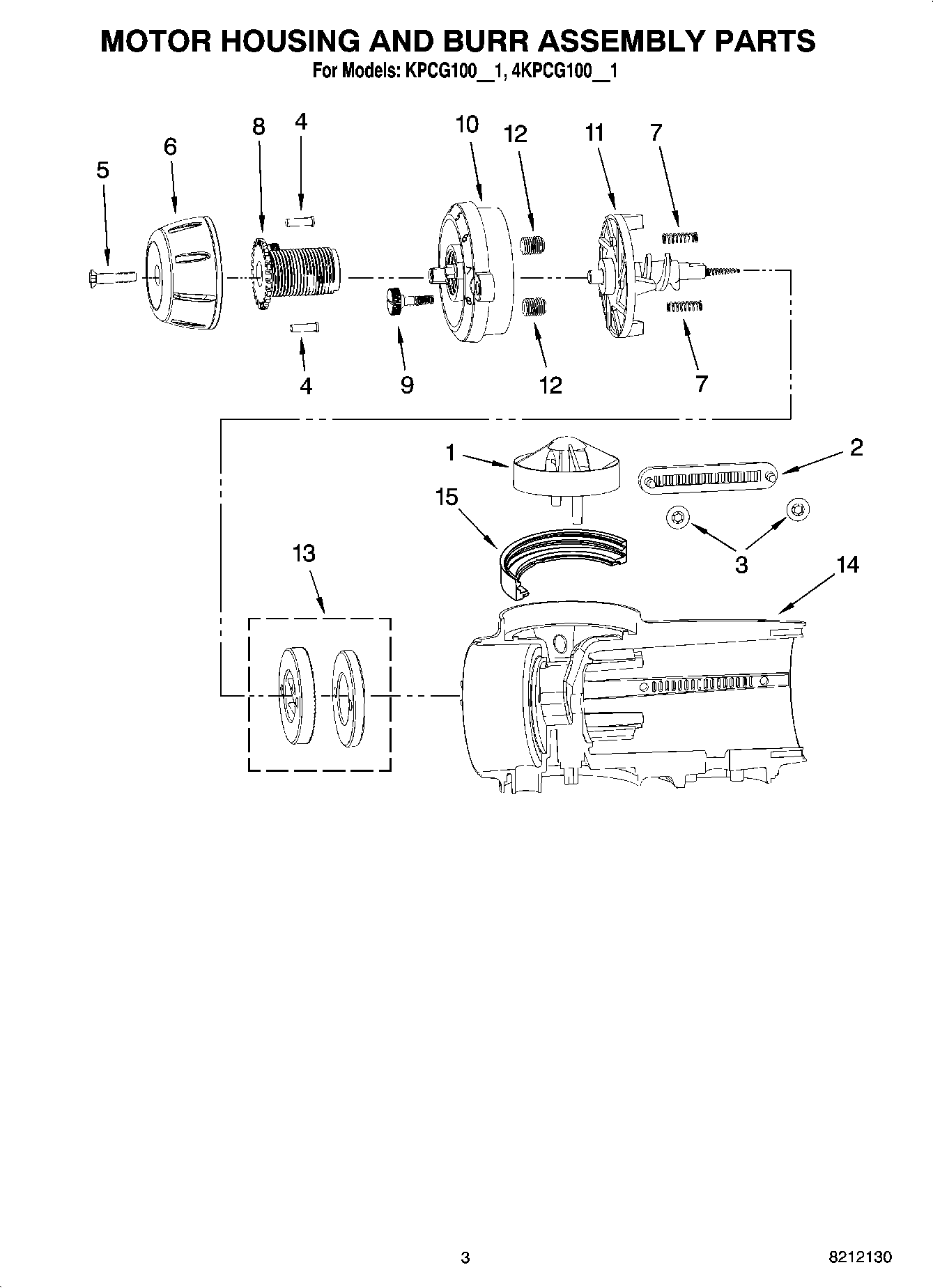

4KPCG100ER1 02 – MOTOR HOUSING AND BURR ASSEMBLY PARTS

Products

PositionProduct
1GUARD, FINGER
2Vent
34176713 Whirlpool Washer
48212392 Whirlpool Pin
54176754 Whirlpool Bolt
6KNOB, SELECTOR
7SPRING, DETENT
8Screw, Adjustment
94176705 Whirlpool Screw
10BEZEL, GEARBOX
11AUGER ASSEMBLY
12SCREW, SOCKET
13W11109860 Whirlpool Burr Assembly
14Housing, Motor (Pearl Metallic)
14Housing, Motor (Nickel Pearl)
14Housing, Motor (Empire Red)
14Housing, Motor (Onyx Black)
15INSERT, THREAD LOCK
