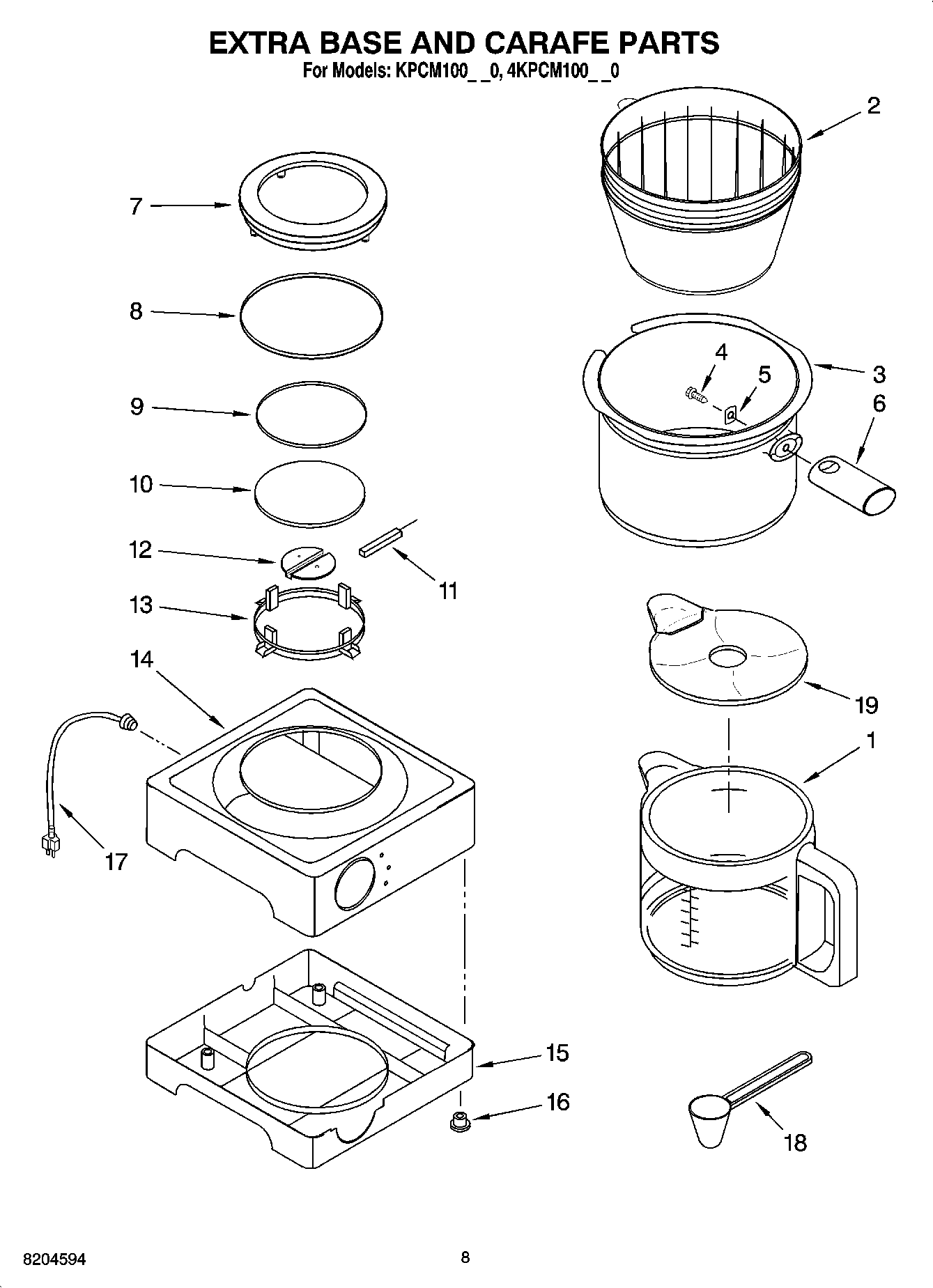

4KPCM100PM0 05 – EXTRA BASE AND CARAFE PARTS

4KPCM100PM0 05 – EXTRA BASE AND CARAFE PARTS

Written by

in

4KPCM100PM0 05 – EXTRA BASE AND CARAFE PARTS

Products

Position	Product
1	Carafe Assembly
2	Insert, Brew Basket
3	Basket, Brew
4	Screw
5	Spacer
6	Handle, Brew Basket
7	Ring, Hot Plate
8	Hot Plate, Extra
9	Seal Ring B
10	Seal, Ring A
11	Not Serviced
12	Hot Plate, Main
13	Mount, Hot Plate
14	Housing, Hot Plate
15	Cover, Base
16	Foot
17	Cord, Power
18	Scoop, Coffee
19	Lid, Carafe Assembly (Orange)
19	Lid, Carafe Assembly (Black)
