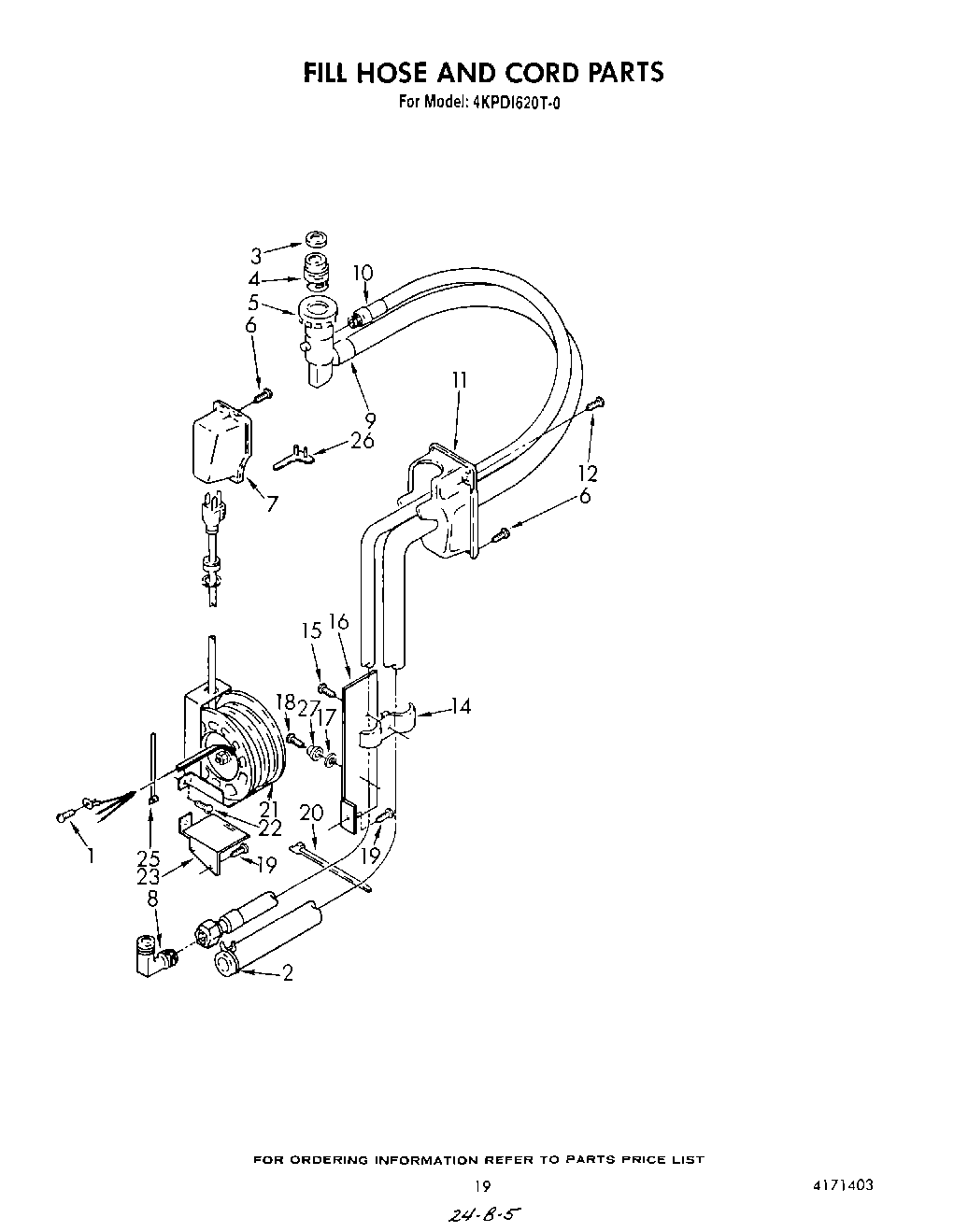

4KPDI620T0 16 – FILL HOSE AND CORD

Products

Position	Product
1	Screw, 10-16 X 1/2
2	Clamp, Hose
3	Washer Kit
4	WPW10254672 Whirlpool Faucet Adapter
5	Gasket, Seal
6	Screw, 6-20 X 3/8 (4)
7	Housing, Power Cord
8	Elbow, Tube Fitting
9	Coupler (Includes Item 5)
10	Fill Hose Assy.
11	Housing, Hose Coupler
12	Screw, 6-20 X 5/8 (2)
14	Clamp, Hose
15	WP4159387 Whirlpool Compactor Screw
16	Bracket, Hose Anchor
17	Washer, Trim
18	Screw, 6-20 x 3/8
19	WP693304 Whirlpool Screw
20	Strap (Flexible Connector to Tank)
21	Cord Reel Assy. (Incls. Item 25)
22	Trim, Tank (Screw, 10-16 X 1/2)
23	Bracket, Cord Reel Mounting
25	Clamp, Hose
26	Guide, Locking
27	Spacer
