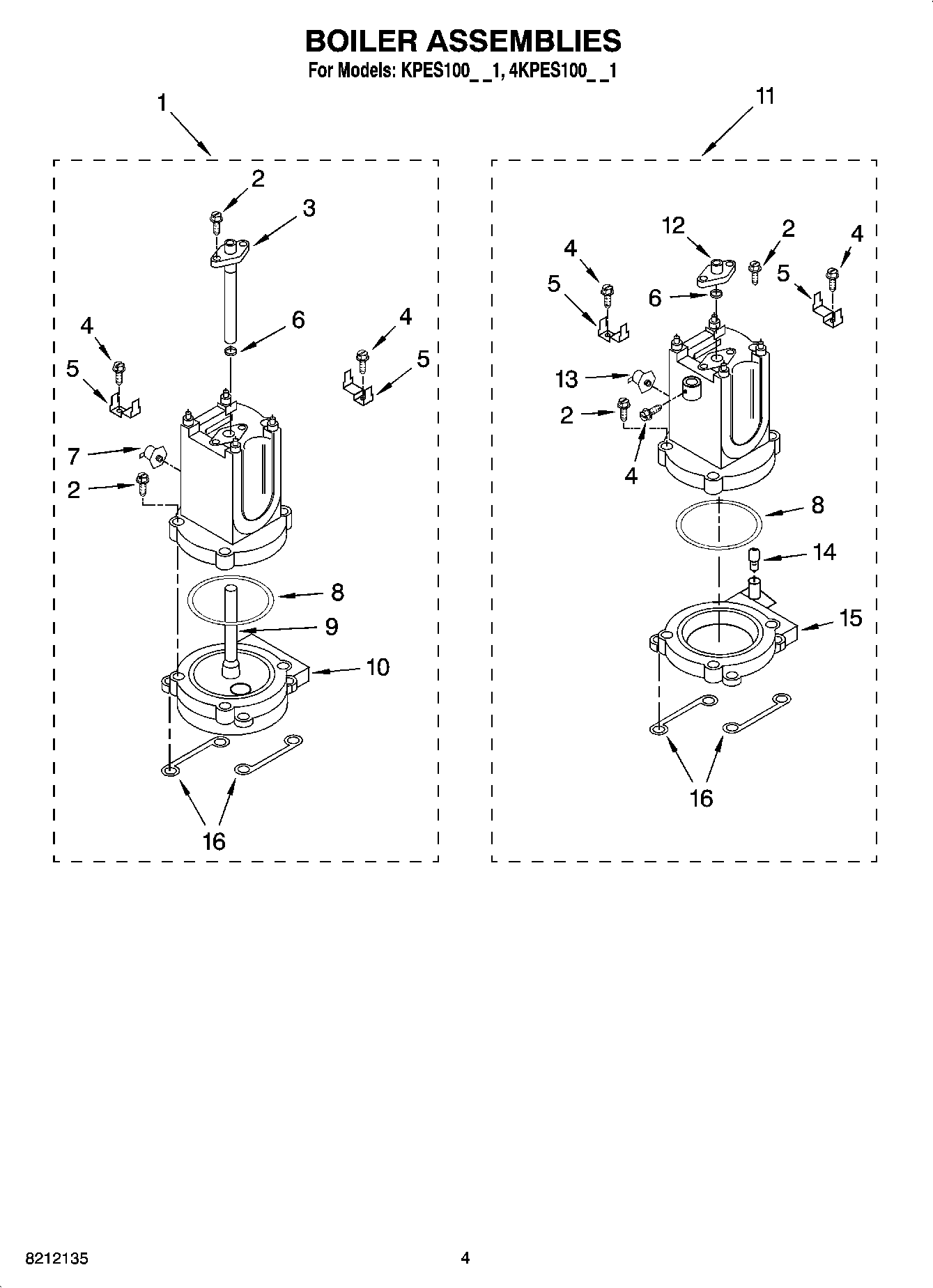

4KPES100PM1 03 – BOILER ASSEMBLIES

4KPES100PM1 03 – BOILER ASSEMBLIES

Written by

in

4KPES100PM1 03 – BOILER ASSEMBLIES

Products

Position	Product
1	Boiler Coffee
2	Screw
3	Support, Gauge Sensor
4	Screw
5	Clamp, Thermo Fuse
6	Gasket
7	Thermostat, Coffee
8	Gasket
9	Pipe, Copper
10	Body, Unit
11	Shell, Tank Lower
12	Body, Steam Pipe
13	Thermostat, Steam
14	Fitting
15	Flange, Steam Boiler
16	Gasket, Insulating
