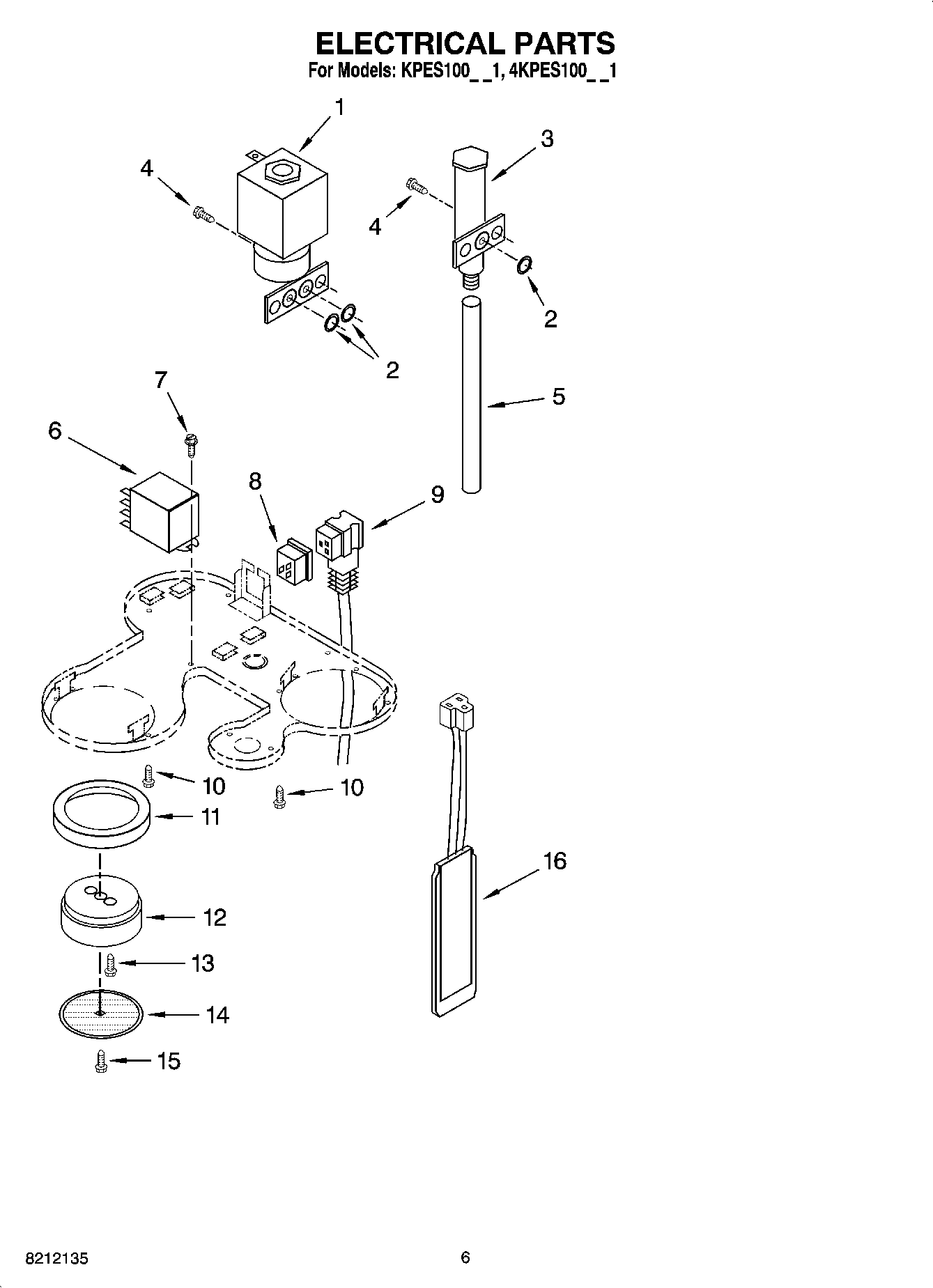

4KPES100PM1 05 – ELECTRICAL PARTS

Products

Position	Product
1	Solenoid, 2-Way Valve
2	Gasket
3	Valve, Steam
4	Screw
5	Valve, Exhaust Pipe
6	Relay, 120V
7	WPW10253196 Whirlpool Screw
8	Plug
9	Cord, Power
10	Screw
11	Gasket
12	Shower Disc Assy.
13	Screw
14	Disc, Shower
15	Screw
16	Milk Jug Stainless Steel
16	MOV Board, 120V
16	FOLLOWING PARTS NOT ILLUSTRATED
