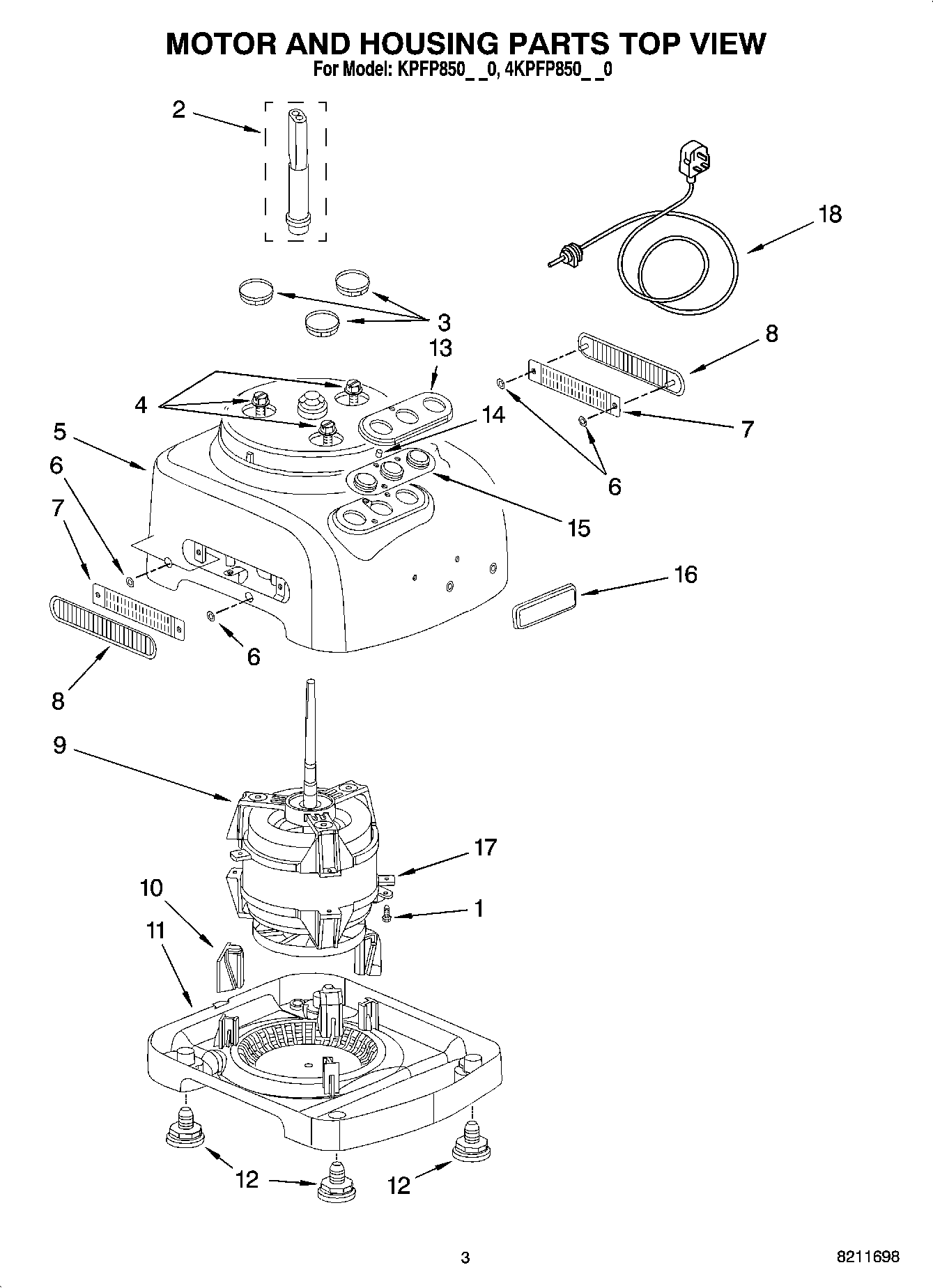

4KPFP850PM0 02 – MOTOR AND HOUSING PARTS TOP VIEW

4KPFP850PM0 02 – MOTOR AND HOUSING PARTS TOP VIEW

Written by

in

4KPFP850PM0 02 – MOTOR AND HOUSING PARTS TOP VIEW

Products

PositionProduct
1Screw
2Sleeve, Motor Shaft
3Cover, Screw
4Screw, Motor Locking
5Housing, Motor
5Housing (Onyx Black)
6Nut, Self-Locking
7Guard, Vent
8Vent
9Motor and Bracket
10Grommet, Motor
11Base, Housing
12Foot, Pedestal
13Bezel, Control
14Lens, Power Indicator
15Overlay
16Nameplate
17Clamp, Cable
18Cord, Power
