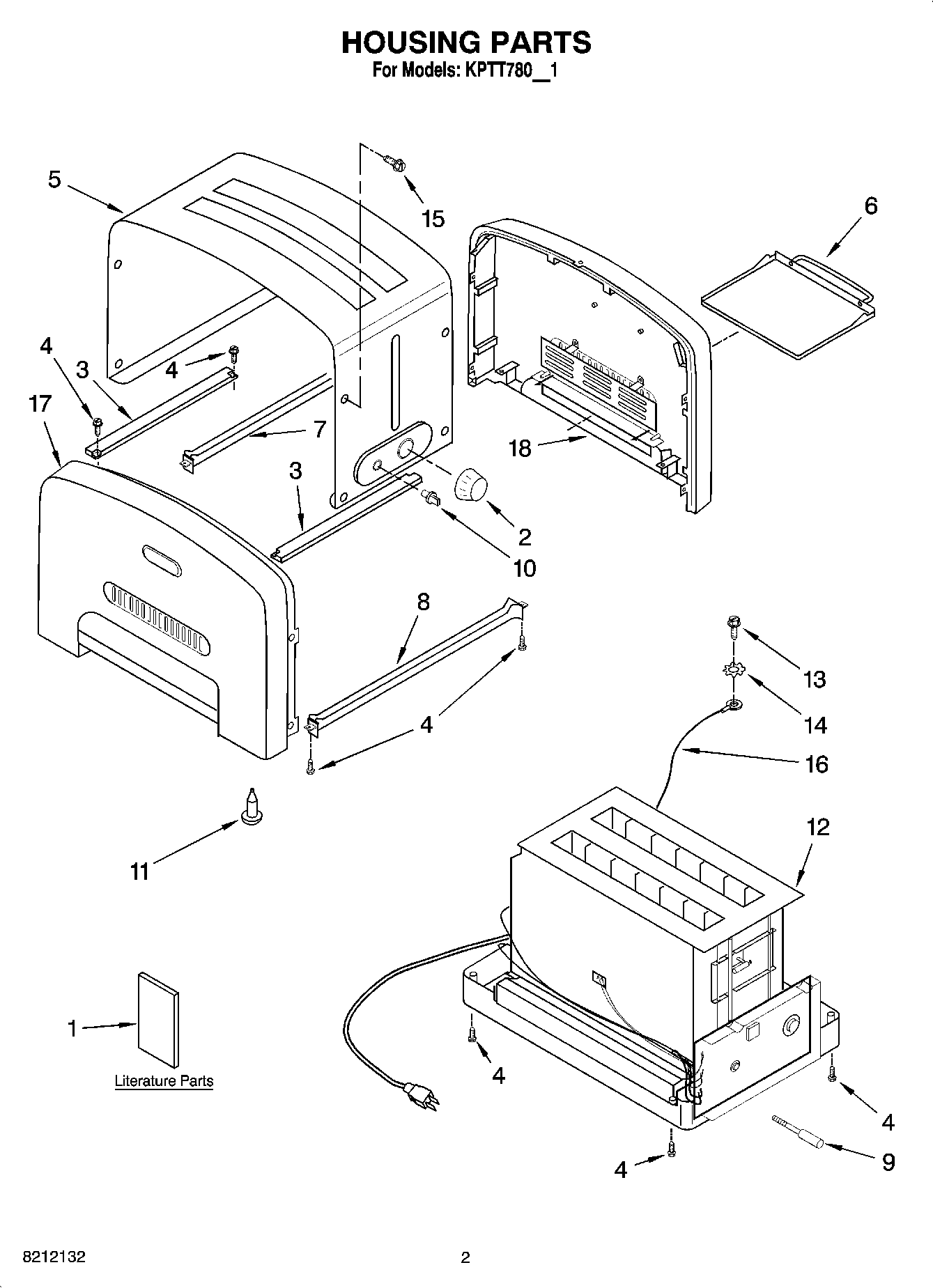

4KPTT780TG1 01 – HOUSING PARTSadmin2025-04-26T13:02:18+00:004KPTT780TG1 01 – HOUSING PARTS
Products
| Position | Product |
|---|
| 1 | Guide, Use & Care |
| 1 | Repair Parts List |
| 2 | Knob, Darkness |
| 3 | Support |
| 4 | Screw |
| 5 | Wrap Assembly (Includes Items 2 & 10) |
| 6 | Tray, Crumb |
| 7 | Bridge, Rear (Onyx Black) |
| 7 | Bridge, Rear (Nickel Pearl) |
| 7 | Bridge, Rear (Cobalt Blue) |
| 7 | Bridge, Rear (Tangerine) |
| 7 | Bridge, Rear (Empire Red) |
| 7 | Bridge, Rear (Pearl Metallic) |
| 8 | Bridge, Front (Pearl Metallic) |
| 8 | Bridge, Front (Nickel Pearl) |
| 8 | Bridge, Front (Onyx Black) |
| 8 | Bridge, Front (Cobalt Blue) |
| 8 | Bridge, Front (Empire Red) |
| 8 | Bridge, Front (Tangerine) |
| 9 | Arm, Lifter |
| 10 | Knob, On/Off |
| 11 | Foot, Rubber |
| 12 | Chassis (Includes Power Cord, Base, Control Boards, & Heating Elements) |
| 13 | Screw, Grounding |
| 14 | Lock Washer |
| 15 | Screw, Wrap |
| 16 | Wire, Ground |
| 17 | Panel Assembly (Left) (Includes Badge & Vent) (Empire Red) |
| 17 | Panel Assembly (Left) (Includes Badge & Vent) (Onyx Black) |
| 17 | Panel Assembly (Left) (Includes Badge & Vent) (Nickel Pearl) |
| 17 | Panel Assembly (Left) (Includes Badge & Vent) (Pearl Metallic) |
| 17 | Panel Assembly (Left) (Includes Badge & Vent) (Cobalt Blue) |
| 17 | Panel Assembly (Left) (Includes Badge & Vent) (Tangerine) |
| 18 | Panel Assembly (Right) (Includes Badge & Vent) (Pearl M |
| 18 | WPL 4176816 |
| 18 | WPL 4176817 |
| 18 | WPL 4176818 |
| 18 | WPL 8212162 |
| 18 | WPL W10197736 |
