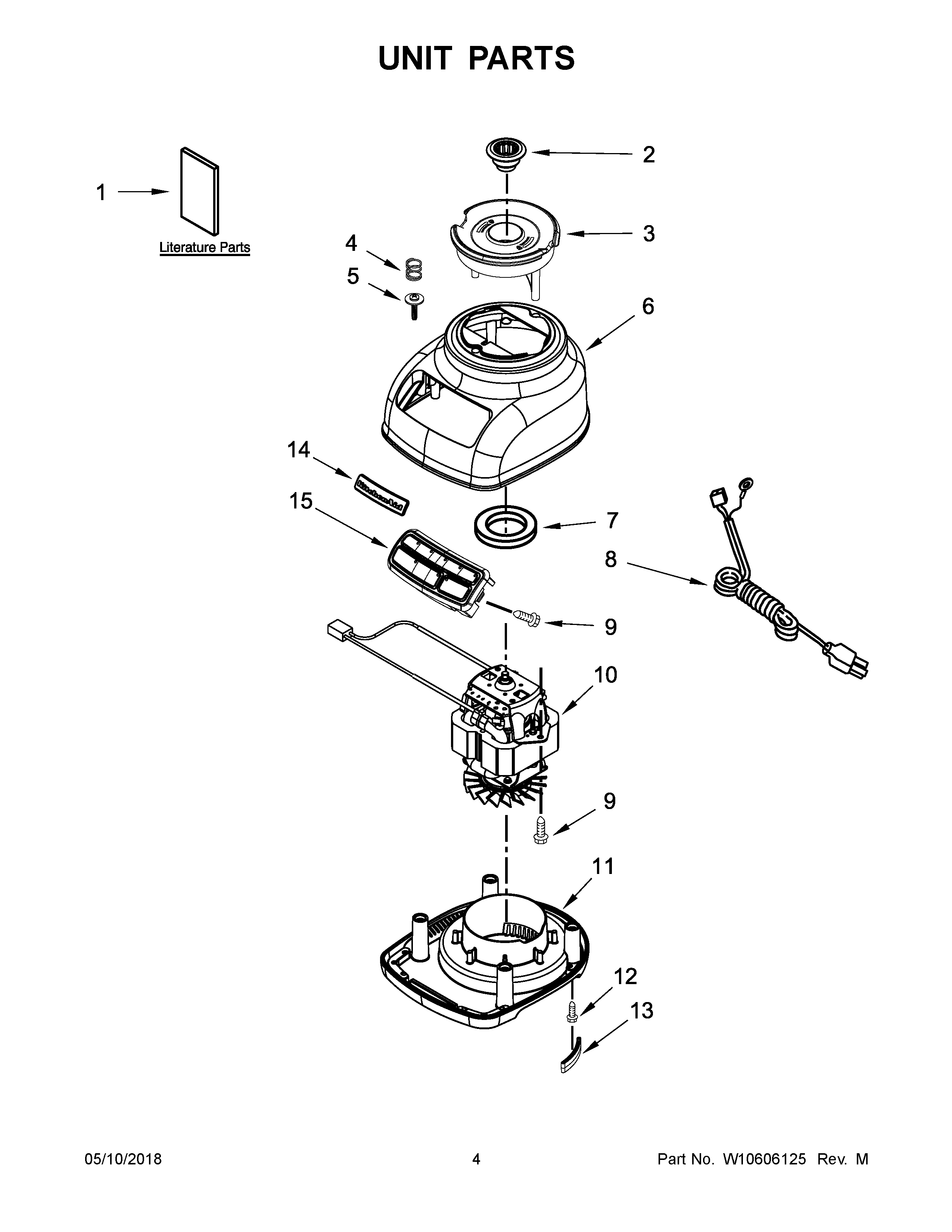

4KSB1575TCB0 03 – UNIT PARTSadmin2025-04-26T13:02:51+00:004KSB1575TCB0 03 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | USE & CARE GUIDE |
| 2 | WPW10279256 Whirlpool Blender Drive Coupler |
| 3 | WPW10497275 Whirlpool Jar Lock Assembly |
| 4 | SPRING |
| 5 | W10859468 Whirlpool Screw |
| 6S | HOUSING, UPPER (GLOSS CINNAMON) |
| 6C | HOUSING, UPPER (COBALT BLUE) |
| 6R | HOUSING, UPPER (WATERMELON) |
| 6B | HOUSING, UPPER (EMPIRE RED) |
| 6Q | HOUSING, UPPER (GRAPE) |
| 6AC | HOUSING, UPPER (BIRD OF PARADISE) |
| 6P | HOUSING, UPPER (CRANBERRY) |
| 6D | HOUSING, UPPER (ESPRESSO) |
| 6T | HOUSING, UPPER (AQUA SKY) |
| 6Z | HOUSING, UPPER (MATTE GRAY) |
| 6Y | HOUSING, UPPER (BLACK MATTE) |
| 6X | HOUSING, UPPER (PISTACHIO MATTE) |
| 6V | HOUSING, UPPER (BLUE STEEL) |
| 6G | HOUSING, UPPER (MAJESTIC YELLOW) |
| 6F | HOUSING, UPPER (METALLIC CHROME) |
| 6U | W10676683 Whirlpool Housing |
| 6E | W10538196 Whirlpool Housing |
| 6AA | HOUSING, UPPER (GUAVA GLAZE) |
| 6O | HOUSING, UPPER (BOYSENBERRY) |
| 6A | W10538188 Whirlpool Housing |
| 6W | HOUSING, UPPER (HOT SAUCE) |
| 6 | HOUSING, UPPER (WHITE) |
| 6AB | HOUSING, UPPER (ICE) |
| 6H | HOUSING, UPPER (PINK) |
| 6I | HOUSING, UPPER (LIQUID GRAPHITE) |
| 6J | HOUSING, UPPER (RASPBERRY ICE) |
| 6K | HOUSING, UPPER (TANGERINE) |
| 6L | W10538198 Whirlpool Housing |
| 6M | HOUSING, UPPER (CONTOUR SILVER) |
| 6N | HOUSING, UPPER (COCOA SILVER) |
| 7 | WP9709366 Whirlpool Seal |
| 8 | W11197488 Whirlpool Power Cord |
| 9 | W11164114 Whirlpool Screw |
| 10 | WPW10225872 Whirlpool Motor |
| 11 | W10497274 Whirlpool Base |
| 12 | WPW10068250 Whirlpool Dishwasher Screw |
| 13 | W11087504 Whirlpool Foot |
| 14 | W10514169 Whirlpool Nameplate |
| 14A | NAMEPLAT |
| 15 | WPL W10514168 |
