4KSB7068OB0 03 – UNIT PARTS
Written by
in

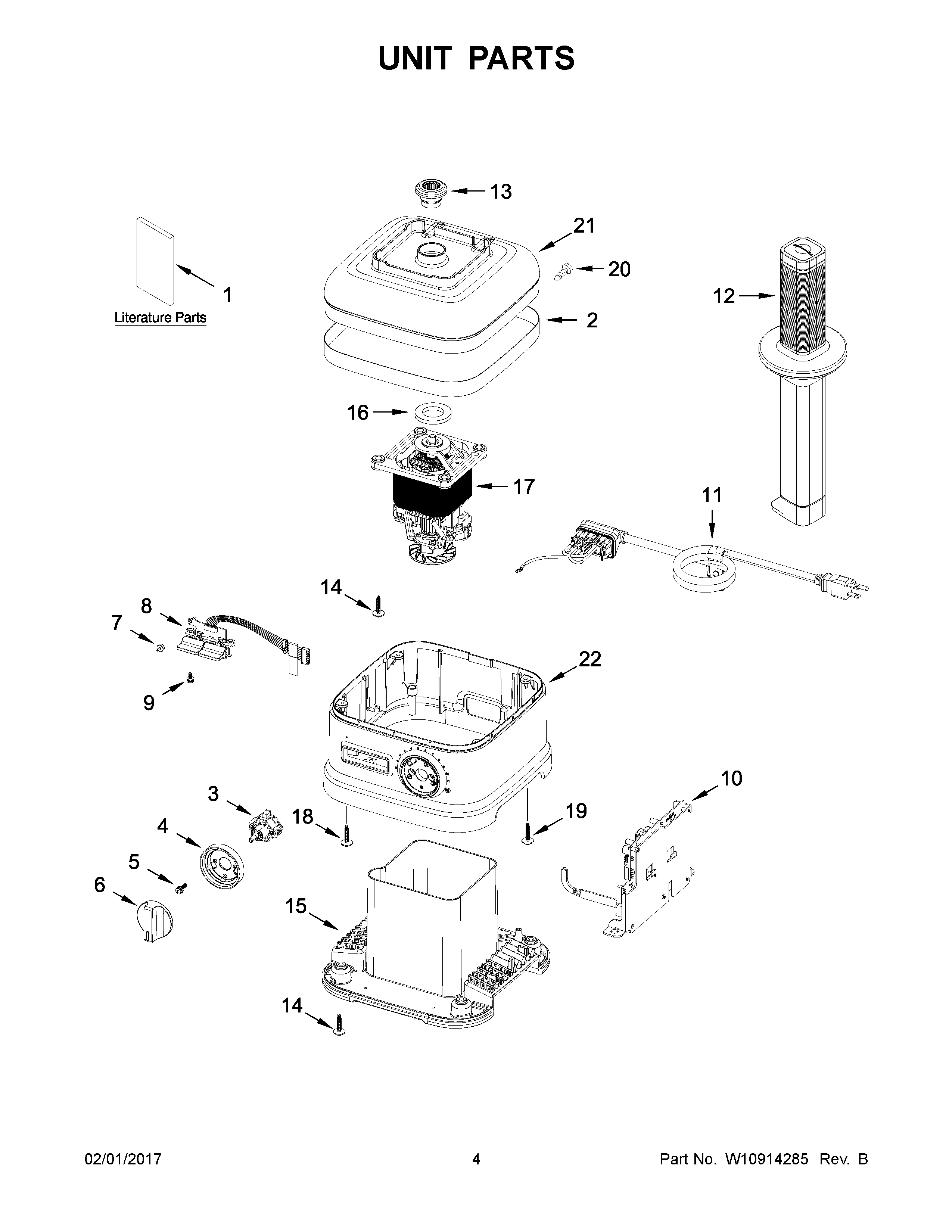

4KSB7068OB0 03 – UNIT PARTS
Products
Position
Product
1
USE & CARE GUIDE (CANADA)
2
TRIMBAND
3
ROTARY SWITCH
4
BEZEL, ROTARY SWITCH
5
SCREW
6
W11168413 Whirlpool Knob
7
TOGGLE LED LENS
8
W11176159 Whirlpool Switch
9
SCREW
10
ELECTRONIC CONTROL
11
POWER CORD
12
TAMPER
13
W10895290 Whirlpool Coupling Assembly
14
SCREW
15
BASE
16
W11700631 Whirlpool Ring
17
W11167358 Whirlpool Motor
18
WPW10068250 Whirlpool Dishwasher Screw
19
WP3400814 Whirlpool Screw
20
W10853069 Whirlpool Screw
21A
UPPER BASE (ONYX BLACK)
21
UPPER BASE (EMPIRE RED)
22A
LOWER BASE (ONYX BLACK)
22
LOWER BASE (EMPIRE RED)
←
