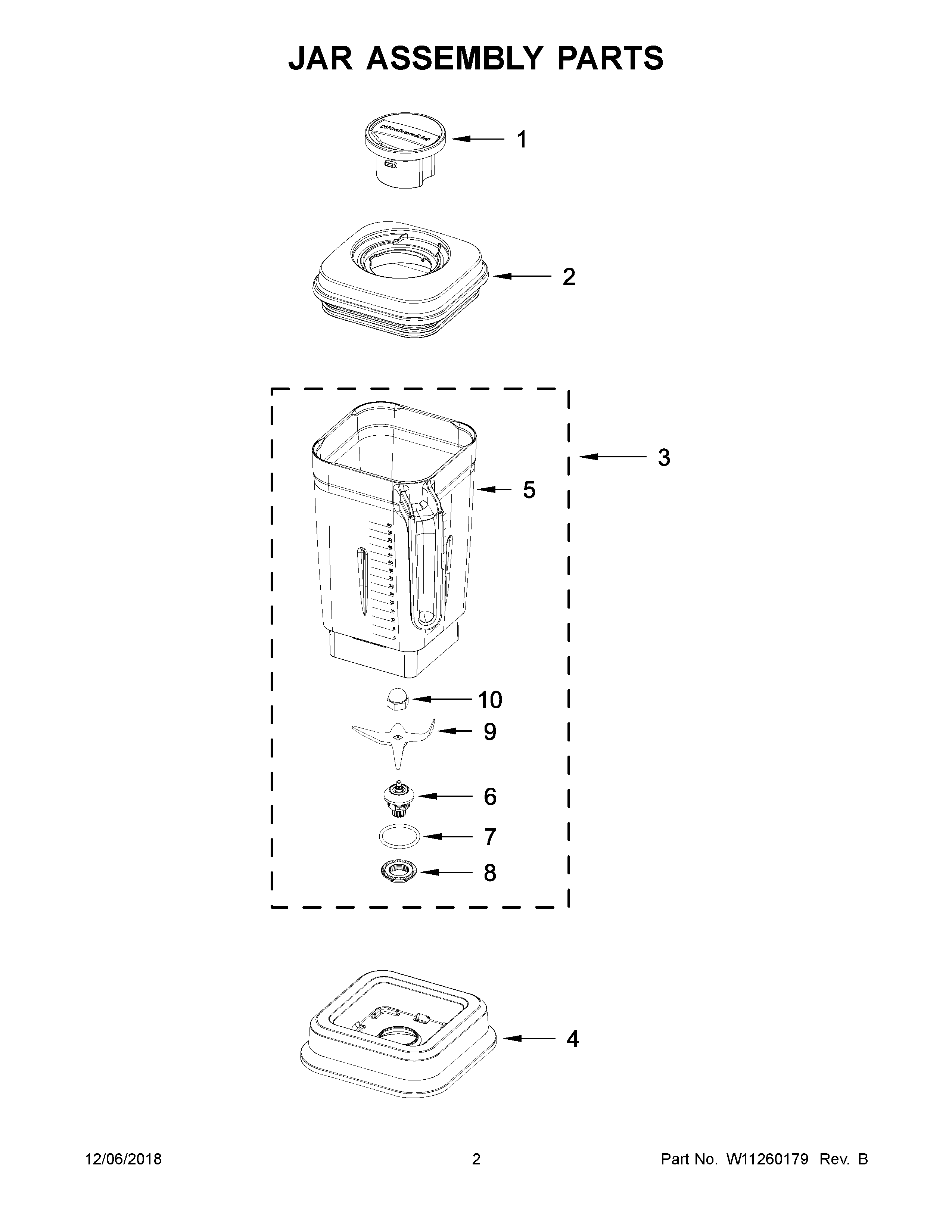

4KSB8268BK0 02 – JAR ASSEMBLY PARTS

Written by

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11109490 Whirlpool Grip Assembly
1	W11197027 Whirlpool Cap
2	LID, JAR
3	W11324073 Whirlpool Jar
4	PAD, JAR
5	W10879676 Whirlpool Jar
6	W11323429 Whirlpool Bearing
7	W11211427 Whirlpool Ring
8	W11186086 Whirlpool Nut Assembly
9	BLADE
10	ACORN NUT
