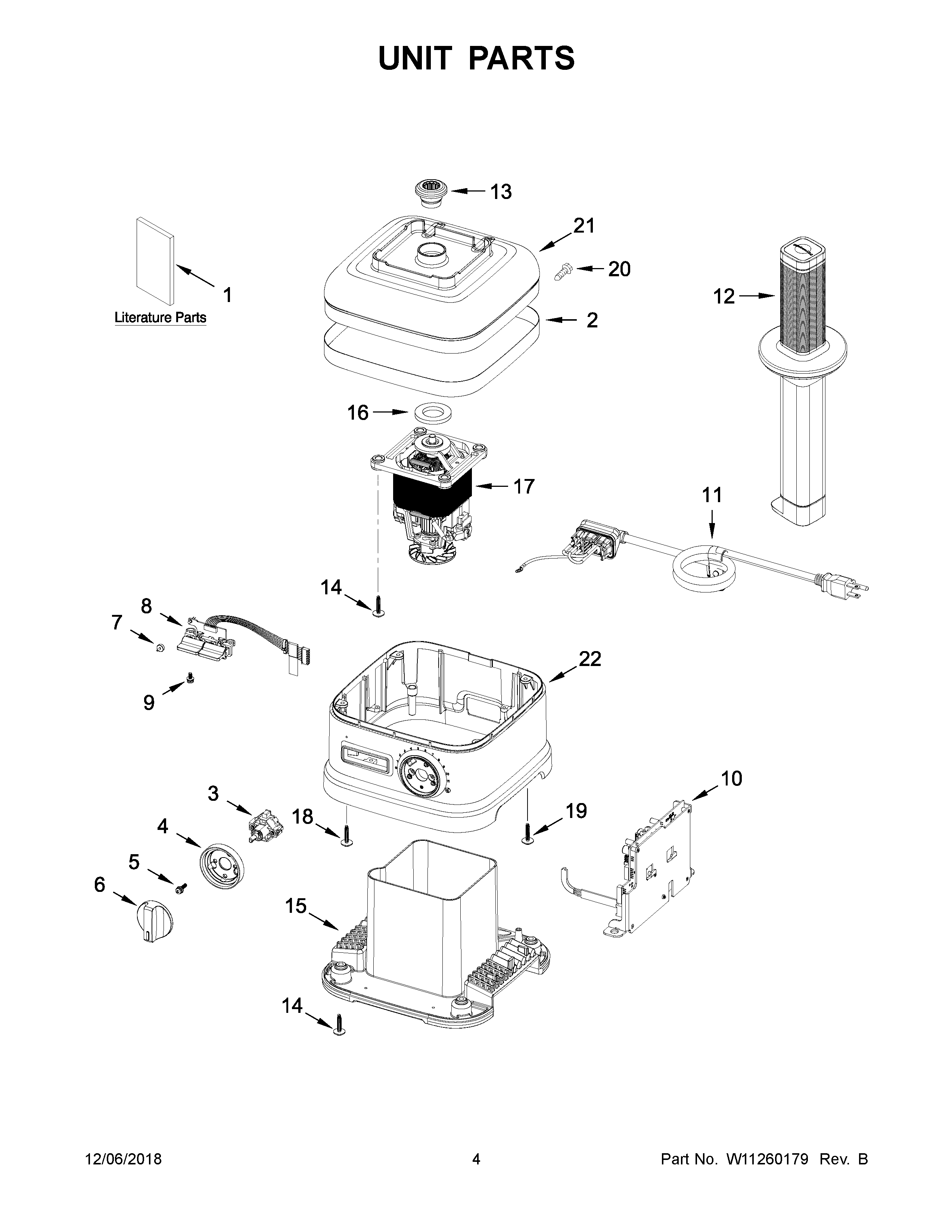

4KSB8268BK0 03 – UNIT PARTS

Products

Position	Product
1	USE & CARE GUIDE
2	TRIMBAND
3	W10897393 Whirlpool Switch
4	BEZEL, ROTARY SWITCH
5	SCREW
6	W11168413 Whirlpool Knob
7	TOGGLE LED LENS
8	W11176159 Whirlpool Switch
9	SCREW
10	ELECTRONIC CONTROL
11	POWER CORD
12	TAMPER
13	W10895290 Whirlpool Coupling Assembly
14	SCREW
15	BASE
16	W11700631 Whirlpool Ring
17	W11167358 Whirlpool Motor
18	WPW10068250 Whirlpool Dishwasher Screw
19	WP3400814 Whirlpool Screw
20	W10853069 Whirlpool Screw
21A	UPPER BASE (IMPERIAL BLACK)
21	UPPER BASE (NICKEL PEARL)
22A	LOWER BASE (IMPERIAL BLACK)
22	LOWER BASE (NICKEL PEARL)
