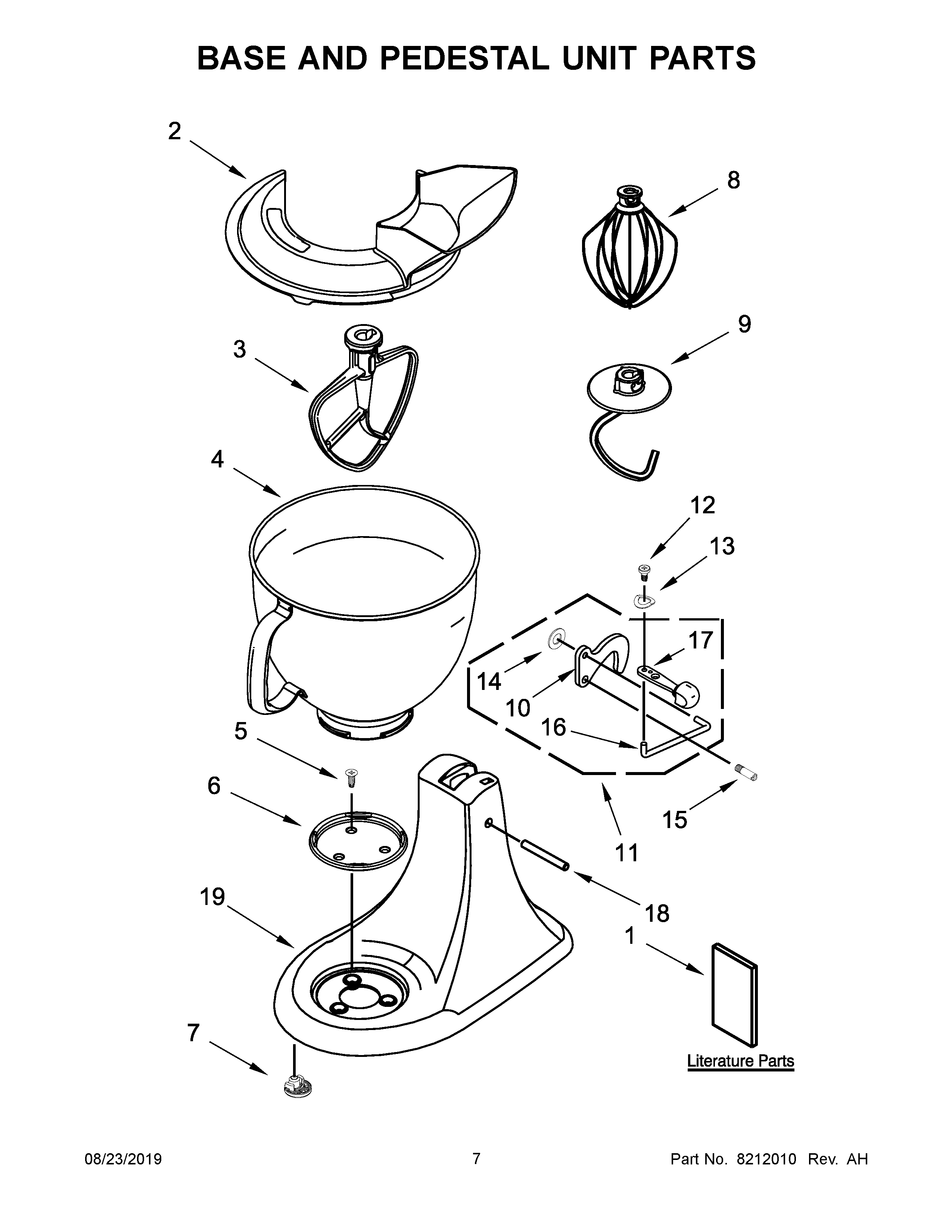

4KSM150PSBW0 03 – BASE AND PEDESTAL UNIT PARTSadmin2025-04-26T13:00:38+00:004KSM150PSBW0 03 – BASE AND PEDESTAL UNIT PARTS ProductsPositionProduct1USE & CARE GUIDE2W11312468 Whirlpool Pour Shelf3WPW10672617 Whirlpool Stand Mixer Flat Beater4W11324096 Whirlpool Mixer Bowl5SCREW6WPW10191926 Whirlpool Cap Screw7WP9709707 Whirlpool Foot8WP9704329 Whirlpool Wire Whip9WPW10674618 Whirlpool Dough Hook10W11246352 Whirlpool Latch Mechanism11WP24452 Whirlpool Latch Lever12WP110679 Whirlpool Screw13WP116241 Whirlpool Washer14W11218705 Whirlpool Washer Assembly15W10802060 Whirlpool Screw16W11232016 Whirlpool Latch Link17ALever, Latch (Storm Gray)17WP9709280 Whirlpool Latch Lever17BLEVER, LATCH (BUFF)18WP16910 Whirlpool Dowel Pin19CABINET (NOT A SERVICEABLE PART)
