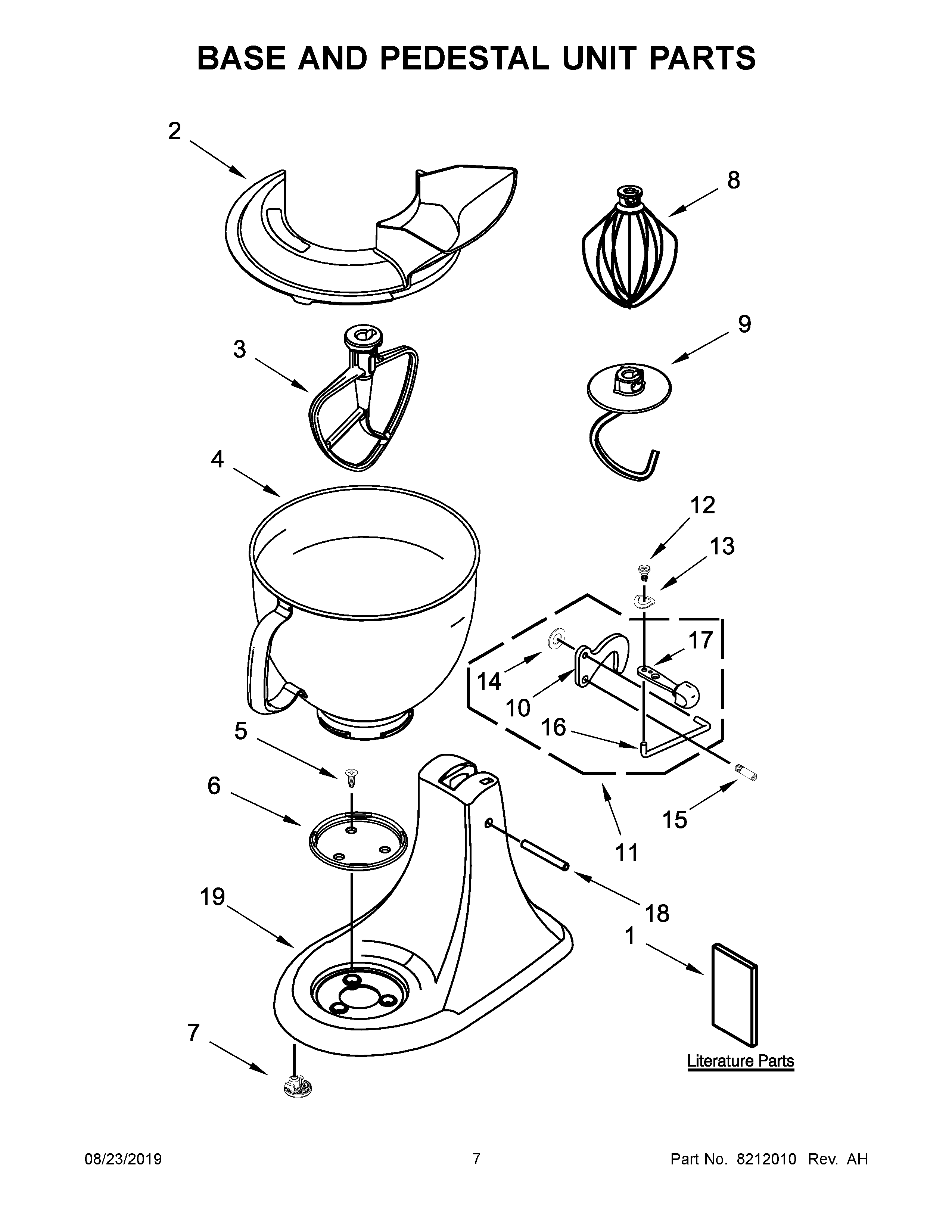

4KSM150PSGN0 03 – BASE AND PEDESTAL UNIT PARTS

Products

Position	Product
1	USE & CARE GUIDE
2	W11312468 Whirlpool Pour Shelf
3	WPW10672617 Whirlpool Stand Mixer Flat Beater
4	W11324096 Whirlpool Mixer Bowl
5	SCREW
6	WPW10191926 Whirlpool Cap Screw
7	WP9709707 Whirlpool Foot
8	WP9704329 Whirlpool Wire Whip
9	WPW10674618 Whirlpool Dough Hook
10	W11246352 Whirlpool Latch Mechanism
11	WP24452 Whirlpool Latch Lever
12	WP110679 Whirlpool Screw
13	WP116241 Whirlpool Washer
14	W11218705 Whirlpool Washer Assembly
15	W10802060 Whirlpool Screw
16	W11232016 Whirlpool Latch Link
17A	Lever, Latch (Storm Gray)
17	WP9709280 Whirlpool Latch Lever
17B	LEVER, LATCH (BUFF)
18	WP16910 Whirlpool Dowel Pin
19	CABINET (NOT A SERVICEABLE PART)
