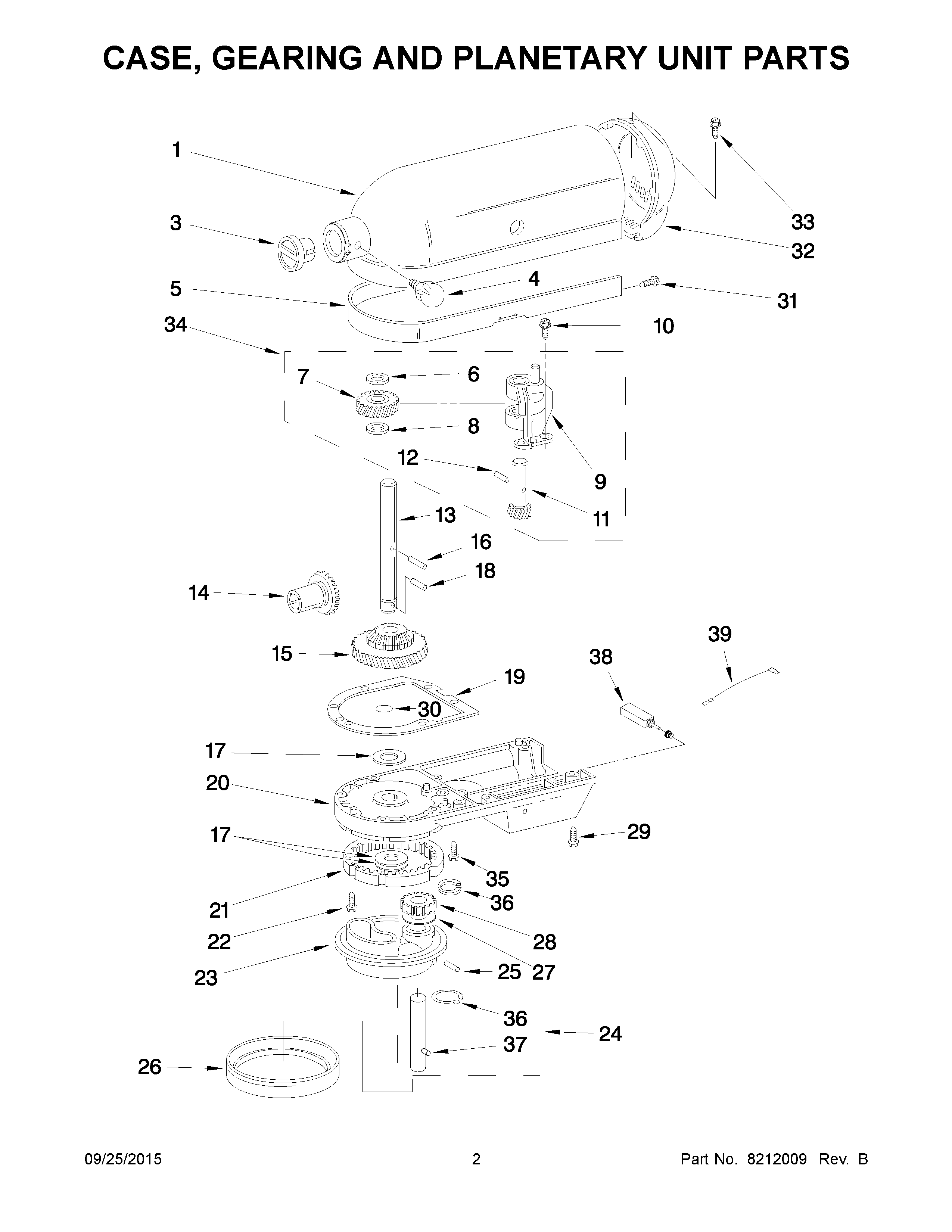

4KSM50PWH0 02 – CASE, GEARING AND PLANETARY UNIT PARTS

4KSM50PWH0 02 – CASE, GEARING AND PLANETARY UNIT PARTS

Written by

in

4KSM50PWH0 02 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

PositionProduct
3Cap, Attachment Hub
4WP9709194 Whirlpool Black Thumb Screw
7WPW10112253 Whirlpool Gear Assembly
8WPW10323373 Whirlpool Washer
9W11082541 Whirlpool Bearing
10W11097298 Whirlpool Dishwasher Screw
11Shaft & Pinion
12WP9705444 Whirlpool Pin Groove
13WP240026 Whirlpool Control Shaft
15W11192794 Whirlpool HUB Gear
17WPW10323378 Whirlpool Washer
18WP9705443 Whirlpool Pin Groove
19WP4162324 Whirlpool Case Gasket
21W11340106 Whirlpool Gear Assembly
22Screw, Special (5)
24WP243368 Whirlpool Agitator Shaft
25Pin (Vertical Center Shaft)
26WP240285 Whirlpool Drip Ring
27Washer, Shim (.015“ Thk.) (.031“ Thk.)
28W11133645 Whirlpool Pinion Gear
29WP3400025 Whirlpool Screw
30O RING
31WP313808 Whirlpool Screw
32CABINET (NOT A SERVICEABLE PART)
33WP241877 Whirlpool Screw
34GEAR, WORM AND BRACKET
35WP9708653 Whirlpool Screw
36WP9703438 Whirlpool Snap Retaining Ring
37W11664709 Whirlpool Groove Pin
38241287-1 Whirlpool Breaker
399701105 Whirlpool Wire
