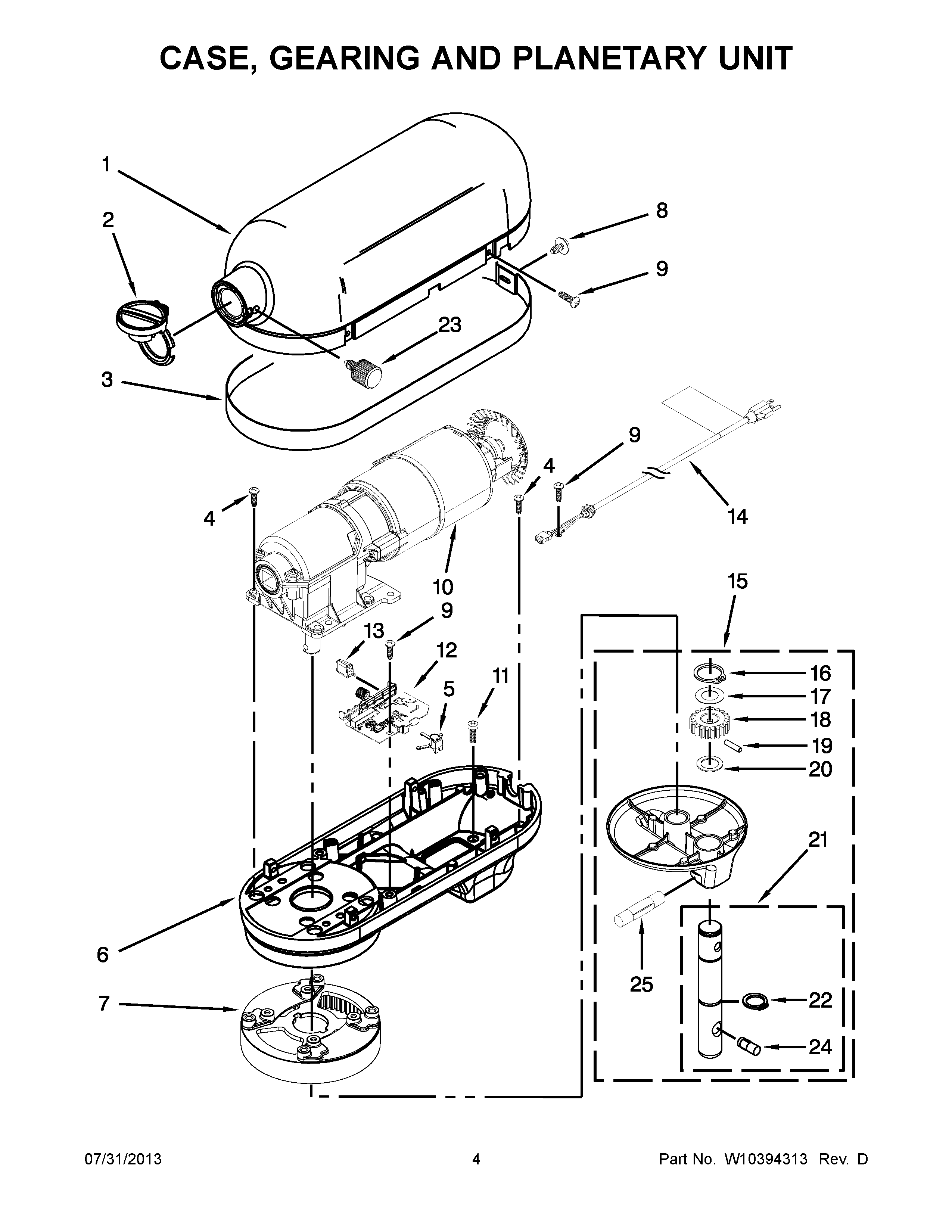

4KSM7990WH0 03 – CASE, GEARING AND PLANETARY UNIT

4KSM7990WH0 03 – CASE, GEARING AND PLANETARY UNIT

Written by

in

4KSM7990WH0 03 – CASE, GEARING AND PLANETARY UNIT

Products

PositionProduct
2W11123129 Whirlpool Hubcap
4W10914506 Whirlpool Screw
5WPW10305968 Whirlpool Holder
7GEAR, RING AND PLATE ASSEMBLY
8W10853069 Whirlpool Screw
9WP3400814 Whirlpool Screw
10WPW10517938 Whirlpool Motor Assembly
11W10913677 Whirlpool Screw
12ACONTROL, 120 VOLT
12WPW10487697 Whirlpool Speed Control
13W11736463 Whirlpool Guard Assembly
14W11199160 Whirlpool Stand Mixer Power Cord
15CABINET (NOT A SERVICEABLE PART)
16WP9703438 Whirlpool Snap Retaining Ring
17WP9706090 Whirlpool Washer
18WPW10234643 Whirlpool Gear Assembly
19WP9707223 Whirlpool Dowel Pin
20W10854966 Whirlpool Washer
21WP9708191 Whirlpool Agitator Shaft
22WP9703680 Whirlpool Retainer Ring
23WPW10360791 Whirlpool Screw
24W11664709 Whirlpool Groove Pin
25WPW10234531 Whirlpool Dishwasher Groove Pin
