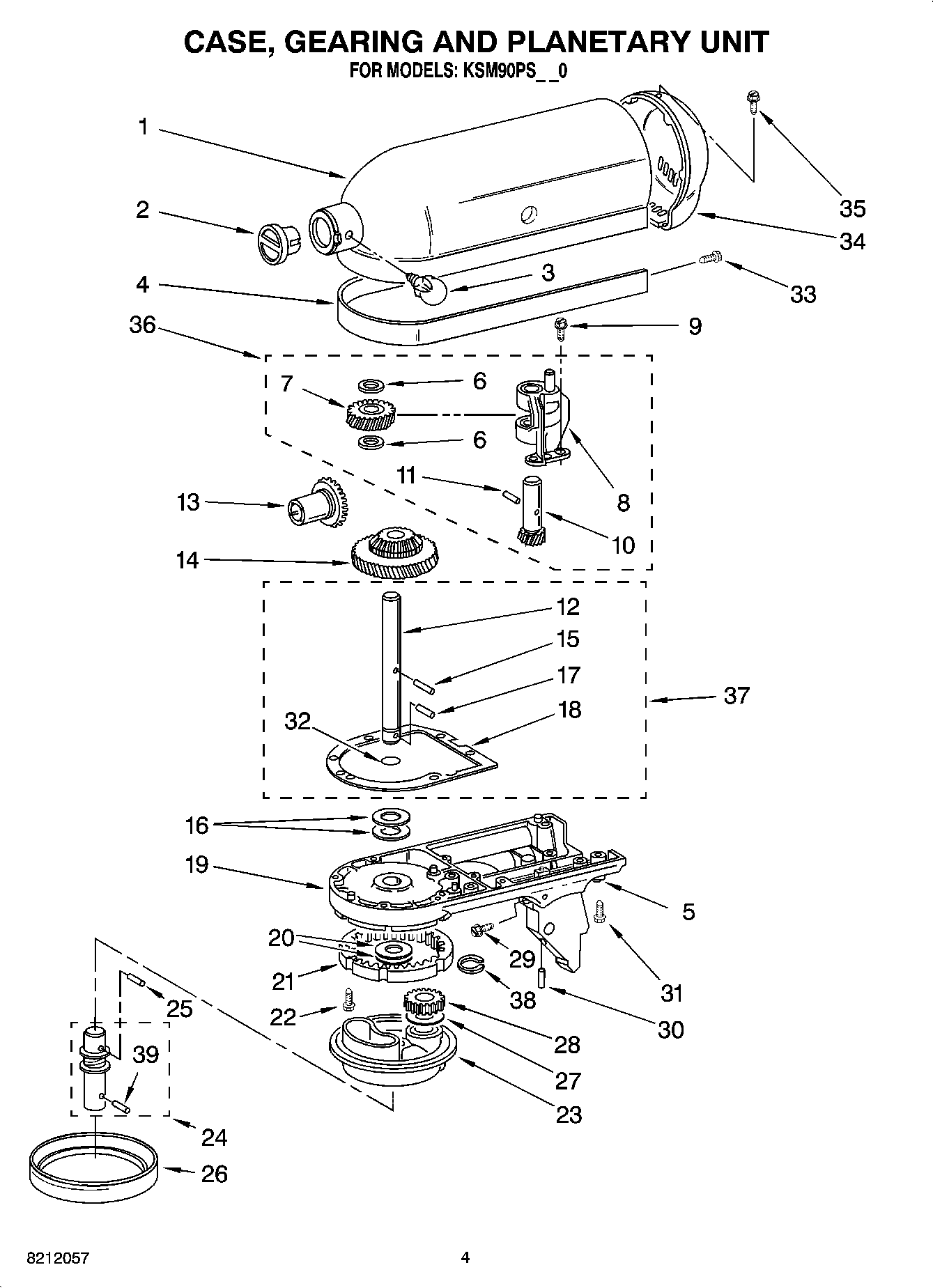

4KSM90PSAC0 02 – CASE, GEARING AND PLANETARY UNIT

4KSM90PSAC0 02 – CASE, GEARING AND PLANETARY UNIT

Written by

in

4KSM90PSAC0 02 – CASE, GEARING AND PLANETARY UNIT

Products

PositionProduct
1Gearcase Motor Housing
2Cap, Attachment Hub
2CAP, ATTACHMNT HUB (PAINTED)
3Thumb Screw (White (Storm Gray))
3Thumb Screw (Buff)
3WP9709194 Whirlpool Black Thumb Screw
4Band, Trim
5WP8533914 Whirlpool Lock
6WPW10323373 Whirlpool Washer
7WPW10112253 Whirlpool Gear Assembly
8W11082541 Whirlpool Bearing
9W11097298 Whirlpool Dishwasher Screw
10Shaft & Pinion
11WP9705444 Whirlpool Pin Groove
12WP240026 Whirlpool Control Shaft
14W11192794 Whirlpool HUB Gear
17WP9705443 Whirlpool Pin Groove
18WP4162324 Whirlpool Case Gasket
19Lower Gear Case
20WPW10323378 Whirlpool Washer
21W11340106 Whirlpool Gear Assembly
22Screw, Special (5)
23Planetary
24WP243368 Whirlpool Agitator Shaft
25Pin (Vertical Center Shaft)
26RING, PLANETARY DRIP (POLISHED)
26WP240285 Whirlpool Drip Ring
27Washer, Shim (.015“ Thk.) (.031“ Thk.)
28W11133645 Whirlpool Pinion Gear
29W11028216 Whirlpool Screw
30WP3400203 Whirlpool Screw
31WP3400025 Whirlpool Screw
32O RING
33WP313808 Whirlpool Screw
34Cover, End
35WP241877 Whirlpool Screw
36GEAR, WORM AND BRACKET
374160474 Whirlpool Control Shaft
38WP9703438 Whirlpool Snap Retaining Ring
39W11664709 Whirlpool Groove Pin
