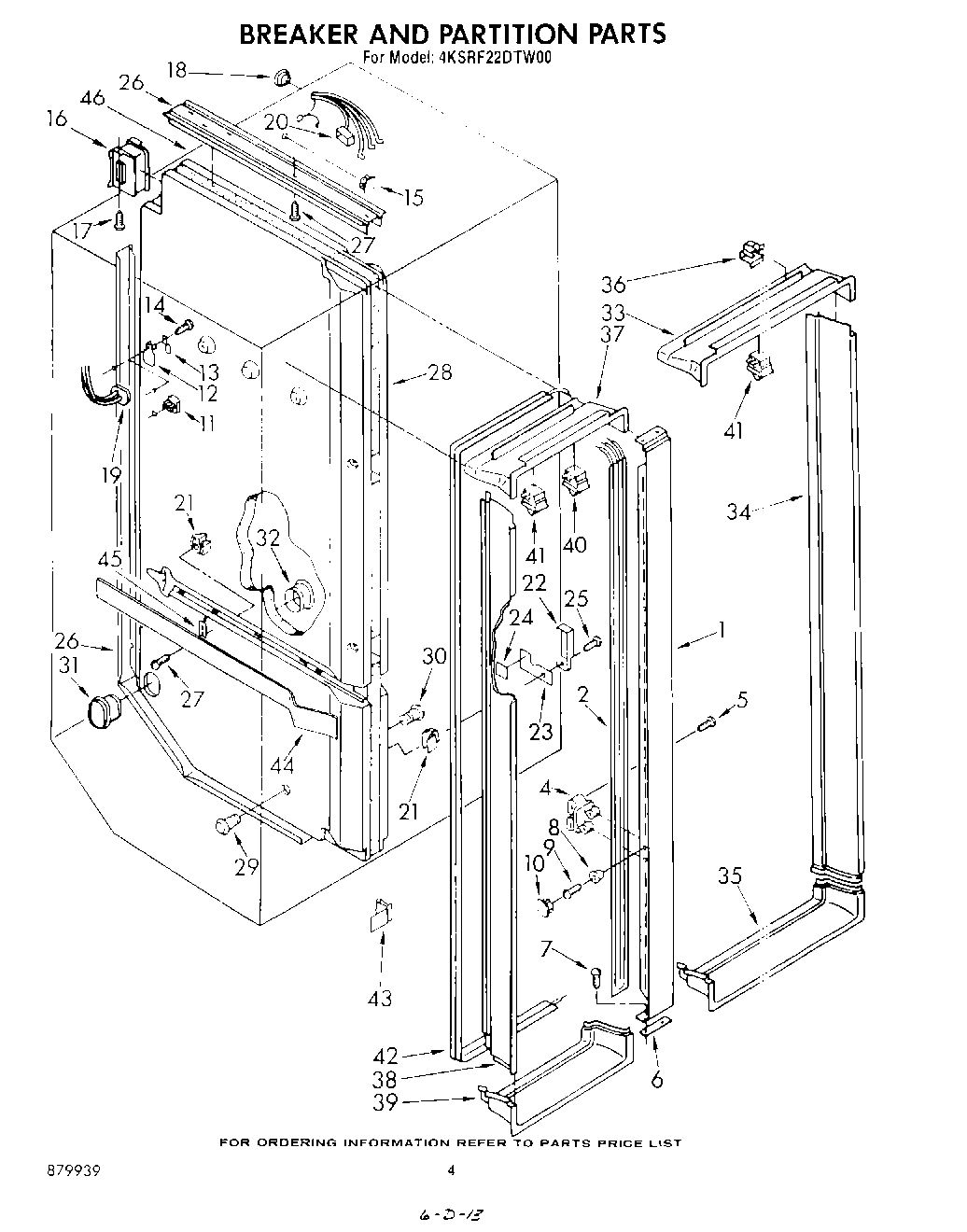

4KSRF22DTA00 03 – BREAKER AND PARTITION

Products

Position	Product
1	Center Rail, Mullion (Toast)
1	Center Rail, Mullion (Platinum)
1	Center Rail Mullion (White)
1	Center Rail Mullion (Almond)
2	Heater, Mullion
4	Stabilizer, Mullion
5	WP488787 Whirlpool Refrigerator Screw
6	Spacer
7	WP489069 Whirlpool Compactor Screw
7	WP308685 Whirlpool Microwave Screw
8	Spacer Screw, Stabilizer
9	Screw, 8 x 7/8
10	Hole Cover
11	Grommet
12	Screw Grommet
13	Support Clip
14	SCREW
15	Hole, Plug
16	Control Connector & Gasket Assembly
17	WP488163 Whirlpool Refrigerator Screw
18	Grommet, Wiring
19	Wiring, Ice Maker
20	Liner Wiring (Defrost Timer)
21	Expansion Clip
22	Escutcheon, Cold Control
23	Slide, Meat Pan Control
24	Pad, Foam
25	Screw, 8-15 x 1/2 (4)
26	Track Divider (Back & Bottom)
26	Track, Divider (Top)
27	W11624204 Whirlpool Screw
28	Divider Mullion Assembly
29	Retainer, Hole Insert
30	Insert, Hole
31	Insert, Air Return
32	Retainer, Insert
33	Breaker Trim, Top
34	Breaker, Trim R.S.
35	WPL 848477
36	Breaker, Clip
37	Breaker Trim, Top
38	Breaker Trim (L.S.)
39	WPL 848481
40	WP4387911 Whirlpool Refrigerator Switch
41	W11384469 Whirlpool Door Switch
42	WPL 989660
43	WPL 935663
44	Cover, Heat Exchanger
45	Heat Exchanger, Clip
