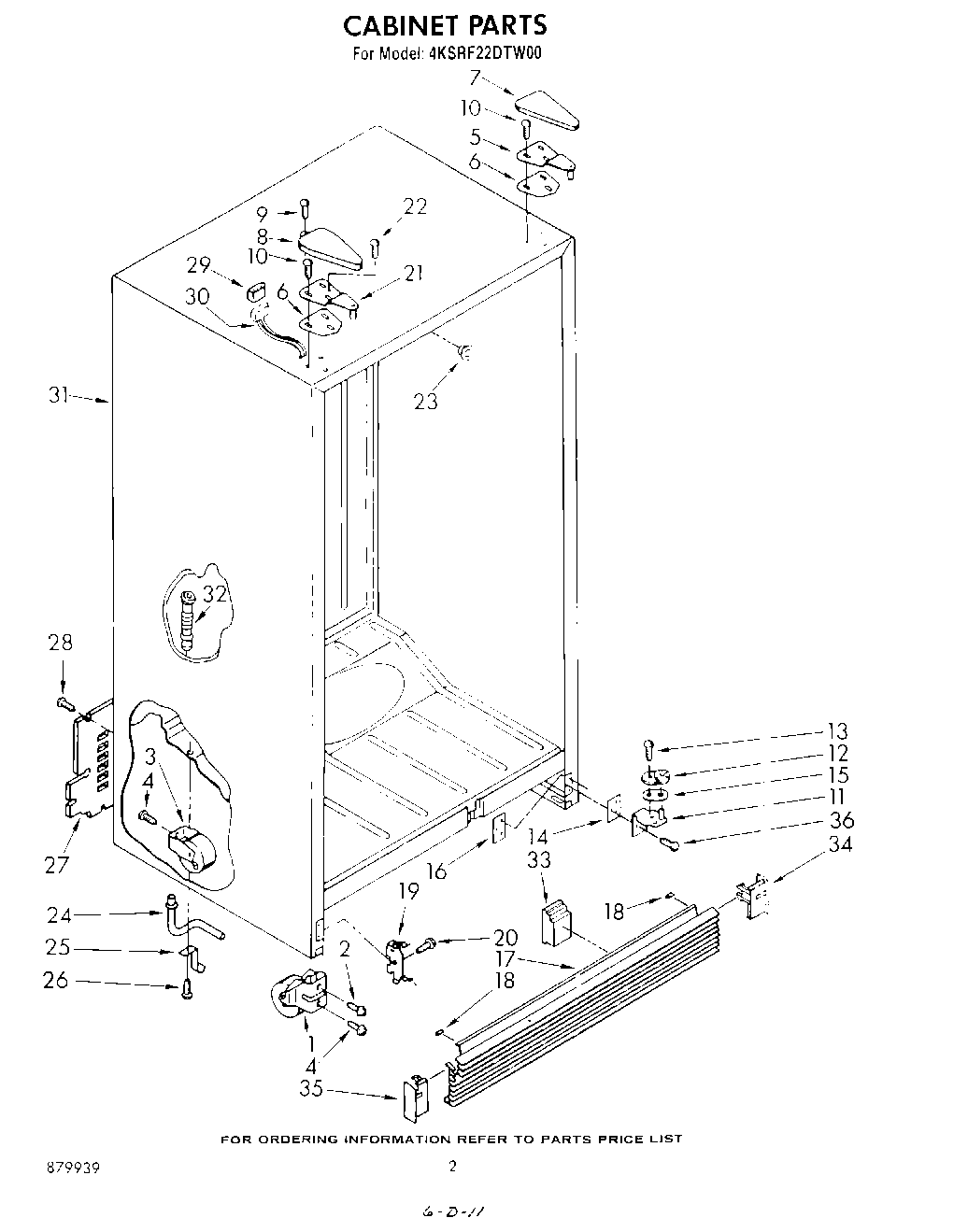

4KSRF22DTT00 02 – CABINET

Products

Position	Product
1	Roller, Front
2	Screw, 5/16-24 x 1
3	WPW10250570 Whirlpool Refrigerator Cabinet Roller
4	Screw, 1/4-28 x 1/2 (2)
5	Hinge, Top
6	Shim, Hinge
7	Hinge Cover (Toast)
7	1119787 Whirlpool Refrigerator Hinge Cover
8	WP1129262 Whirlpool Refrigerator Cover
8	Hinge Cover (Toast)
8	Hinge Cover (Platinum)
9	Screw, 6-32 x 1/2
10	WP999367 Whirlpool Refrigerator Screw
11	Hinge, Bottom (L.H.)
11	Hinge, Bottom R.H.
12	WPW10329686 Whirlpool Door Cam Black
13	WP486579 Whirlpool Air Conditioner Screw
13	Screw (Repair)
14	Shim, Bottom Hinge
15	Shim, Door Closer
16	Tap Plate
17	Exterior Grille
18	Bumper, Grille (2)
19	WPL 989068
20	W11624204 Whirlpool Screw
21	Hinge, Top Freezer
22	WP488234 Whirlpool Air Conditioner Screw
23	Grommet
24	Extension, Drain Fitting
25	Cup, Drain Extension
26	Screw, 8-15 x 3/8
27	WPL 850457
29	WPL 851648
30	WPL 482553
31	Cabinet (Not A Serviceable Part)
32	WPL 836068
33	Insert, Air Baffle Grille
34	Grille, End Cap (R.S)
35	Grille, End Cap (L.S.)
36	Screw (Repair)
