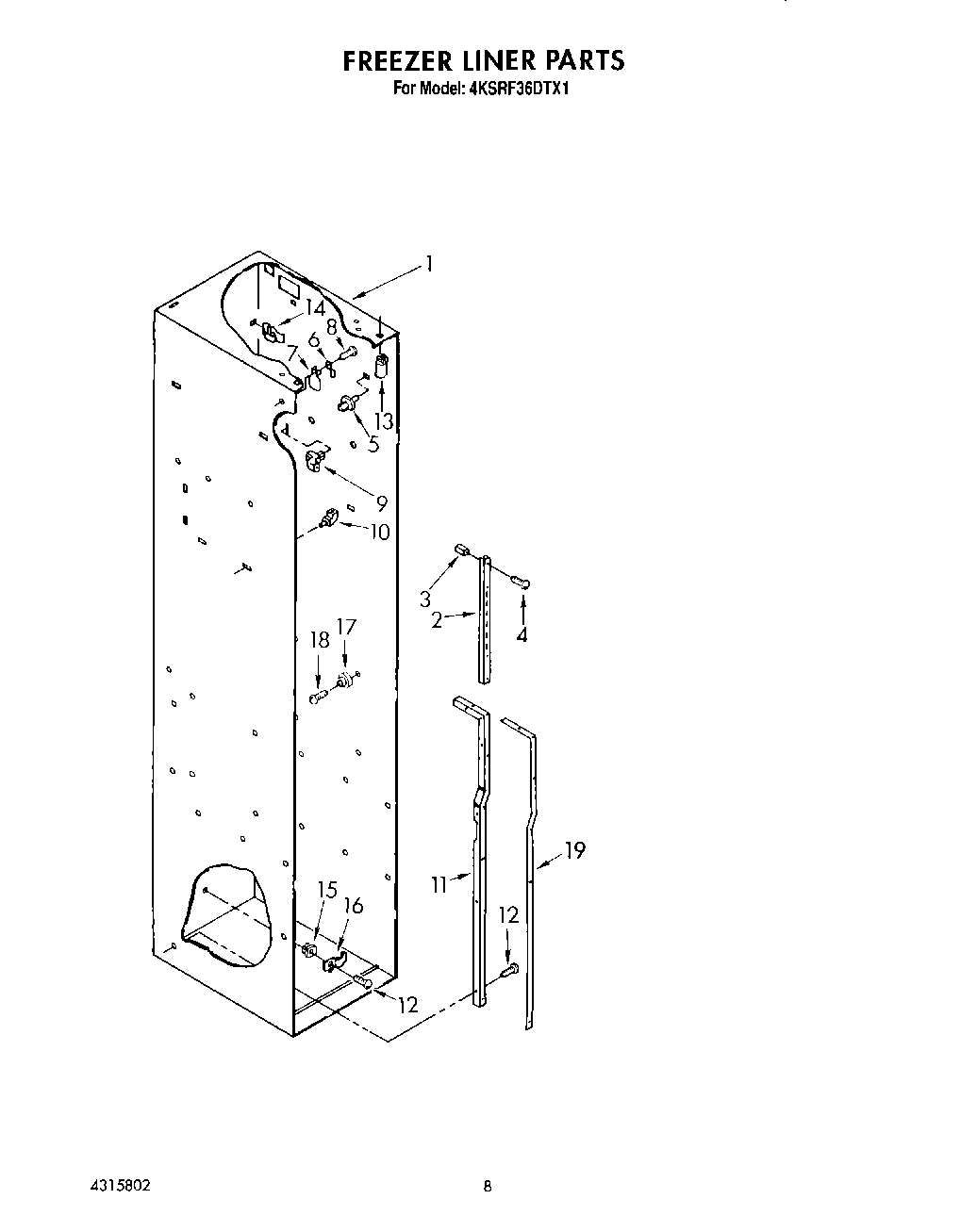

4KSRF36DTX1 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Ladder, Shelf (2)
3Spacer, Ladder (4)
4WP489174 Whirlpool Refrigerator Screw
5Shelf, Stud
6Support Clip
7Screw Grommet
8SCREW
9Support, Stud
10Retainer, Stud (4)
11Rail, Evaporator Cover (Left Side)
11Rail, Evaporator Cover (Right Side)
12W11624204 Whirlpool Screw
13Spacer, Control Panel (3)
142215823 Whirlpool Refrigerator Clip
15Grommet
161112260 Whirlpool EV Support
17Stud
18Screw
19Gasket, Evaporator Cover (2)
