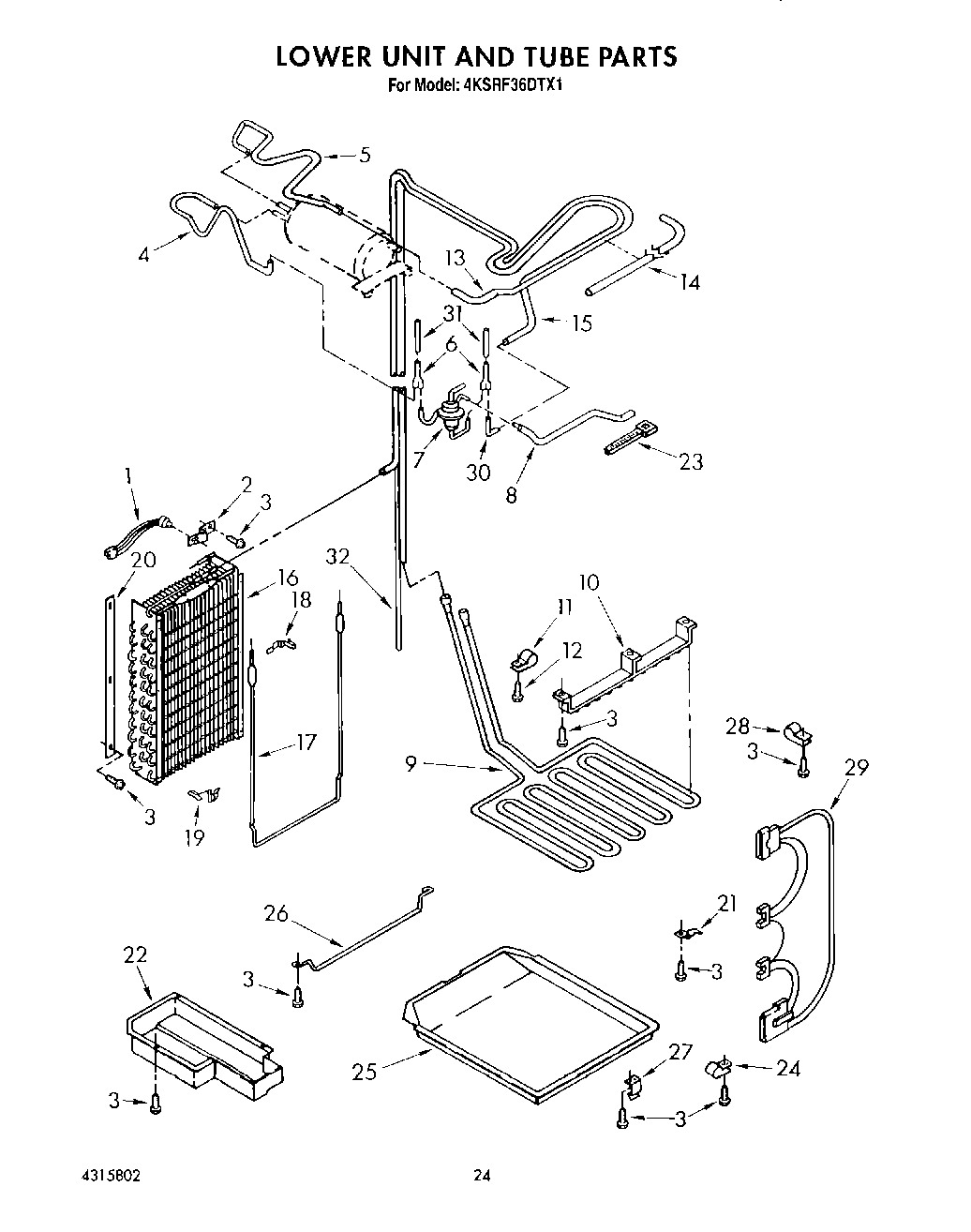

4KSRF36DTX1 14 – LOWER UNIT AND TUBE

Products

PositionProduct
1WP4387499 Whirlpool Refrigerator Bimetallic Defrost
2Clamp, Bi-Metal
3W11624204 Whirlpool Screw
3SCREW
4Tube, Connect (Suction)
5Tube, Connect (Discharge)
6Tube, Flow Divider (2)
7Valve, Fluid Control
8Tube, Connect (Drier)
9Heater, Drain Pan
10Hanger, Heater
11Bracket, Heater
12WP488163 Whirlpool Refrigerator Screw
13Tube, Discharge
14WP2002171 Whirlpool Refrigerator Sleeve
15Heat Exchanger
16WPW10122127 Whirlpool Refrigerator Evaporator
17Heater, Defrost
181113048 Whirlpool Refrigerator Clamp
19Heater, Clamp (4)
20Gasket, Evaporator
21Clip, Connector
22Guard, Hook-Up
23Strap
24WP488729 Whirlpool Refrigerator Door Screw
25Drain Pan
26Bracket, Drain Pan
27Clip, Pan (2)
28Clip, Tube (3)
29Wiring Harness, Water Valve
30Tube, Connect (Suction)
31Tube (2)
32Tube, Condenser Inlet
