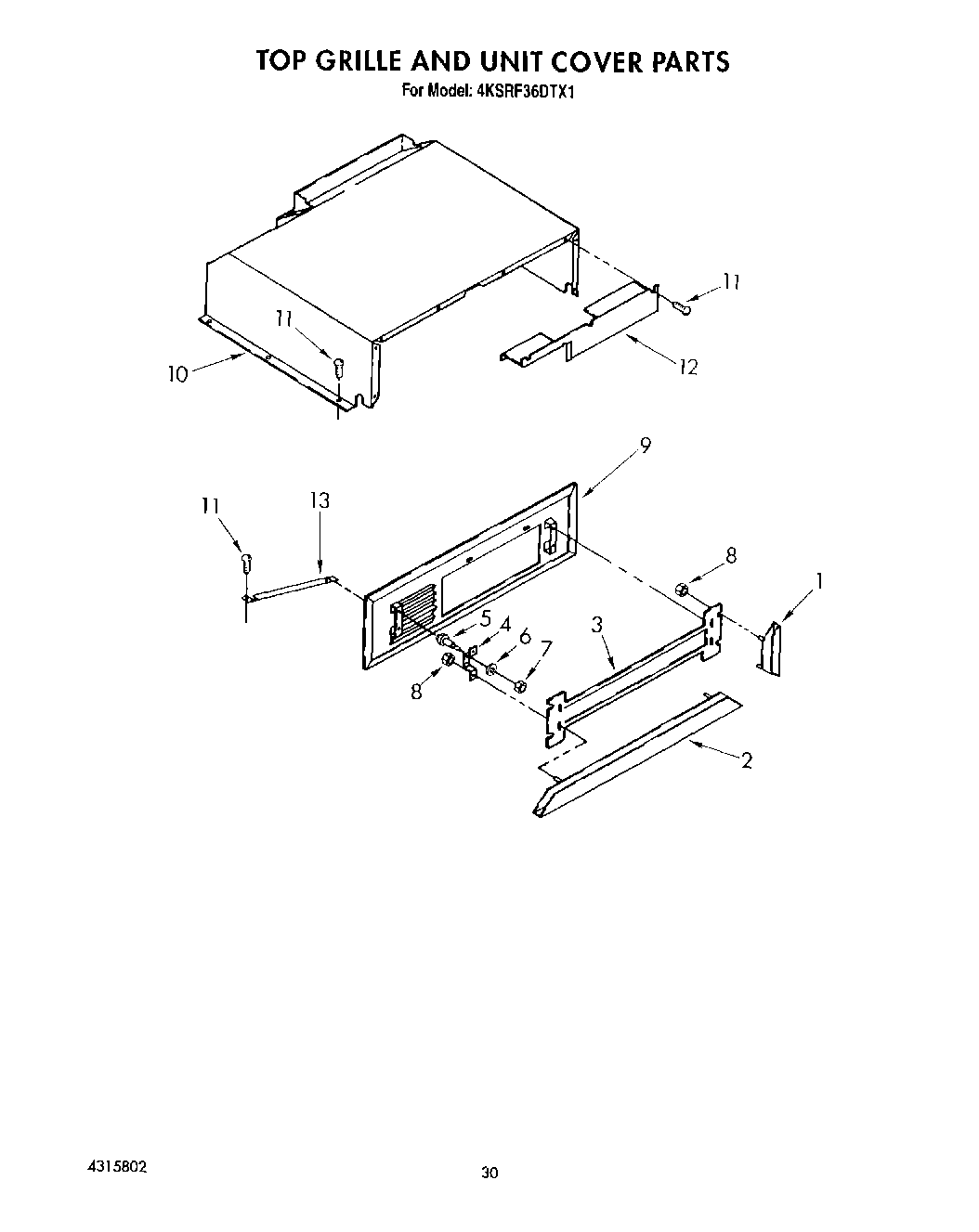

4KSRF36DTX1 17 – TOP GRILLE AND UNIT COVER

Written by

Products

Position	Product
1	Panel Frame, Side (2)
2	Panel Frame, Top & Bottom
3	Back Up Panel
4	Bracket, Keyhole Mounting (2)
5	Shoulder Screw (4)
6	Spring Washer (4)
7	WP486255 Whirlpool Air Conditioner Nut
8	Nut (8)
9	Top Grille Assembly
10	Cover, Unit
11	SCREW
11	W11624204 Whirlpool Screw
12	Cover, Component Assembly
13	Brace, Panel (2)
