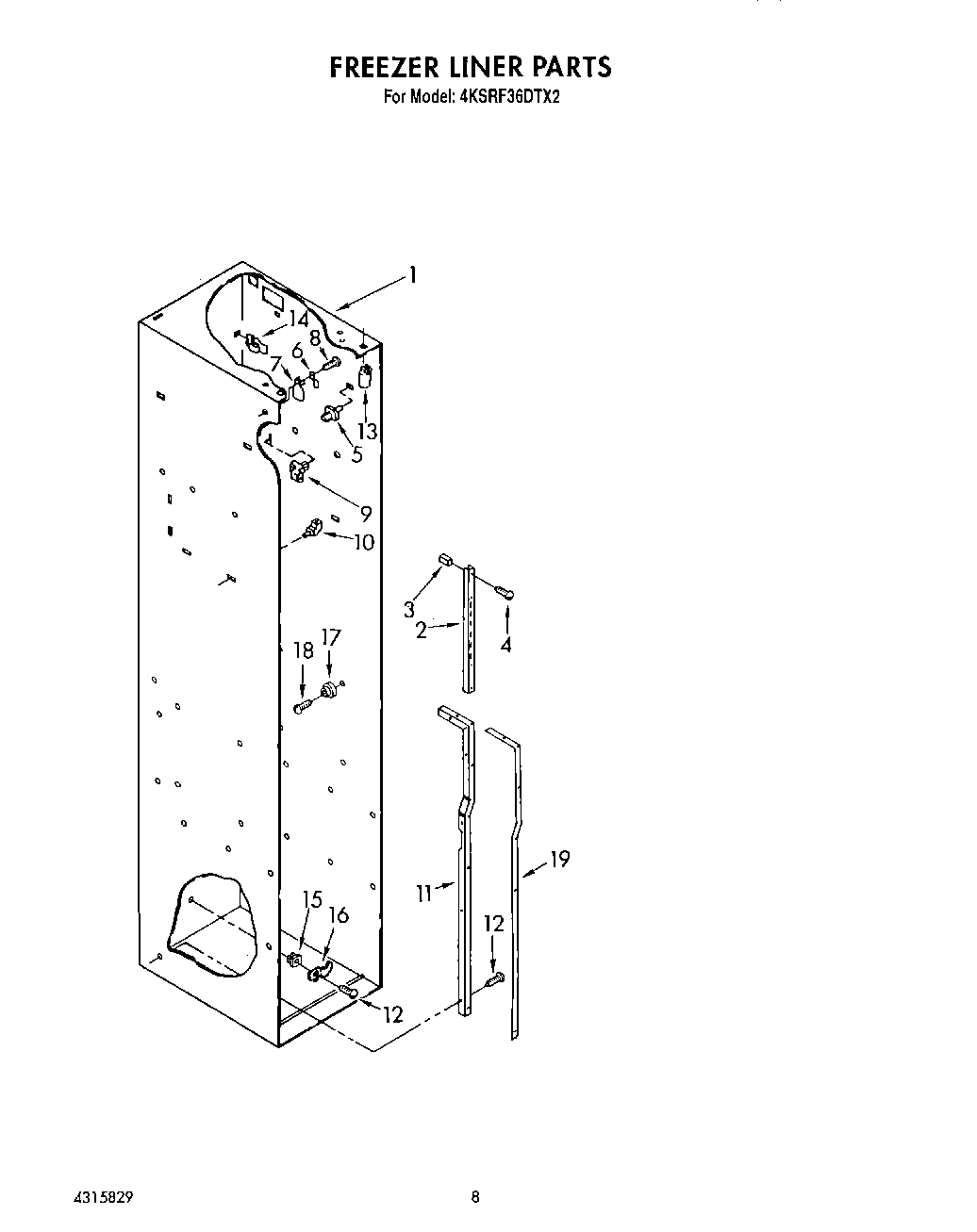

4KSRF36DTX2 04 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Ladder, Shelf (2)
3	Spacer, Ladder (4)
4	WP489174 Whirlpool Refrigerator Screw
5	Shelf, Stud
6	Support Clip
7	Screw Grommet
8	SCREW
9	Support, Stud
10	Retainer, Stud (4)
11	Rail, Evaporator Cover (Left Side)
11	Rail, Evaporator Cover (Right Side)
12	W11624204 Whirlpool Screw
13	Spacer, Control Panel (3)
14	2215823 Whirlpool Refrigerator Clip
15	Grommet
16	1112260 Whirlpool EV Support
17	Stud
18	Screw
19	Gasket, Evaporator Cover (2)
