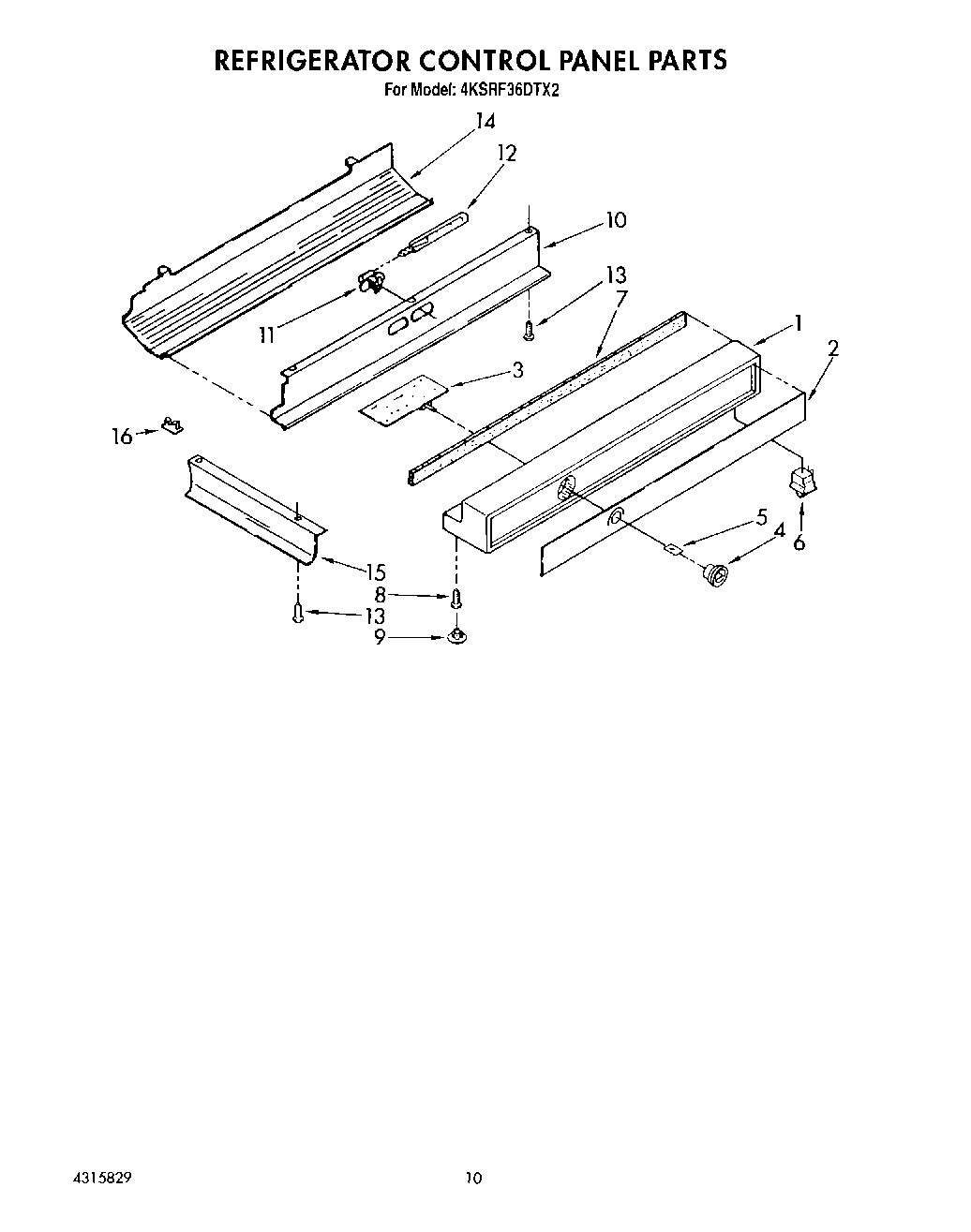

4KSRF36DTX2 06 – REFRIGERATOR CONTROL PANEL

Products

PositionProduct
1Control Panel
2Inlay, Control Panel
3Circuit Board
4Knob, Air Control
5Knob, Retainer
6W11384469 Whirlpool Door Switch
7Seal, Control Panel
8Screw (3)
9Hole Plug (2)
10Shield, Control Panel
11Socket, Light
12WP548049 Whirlpool Refrigerator Light Bulb
13W11624204 Whirlpool Screw
13SCREW
14Lens
15Channel, Wiring
16CLIP, WIRING
