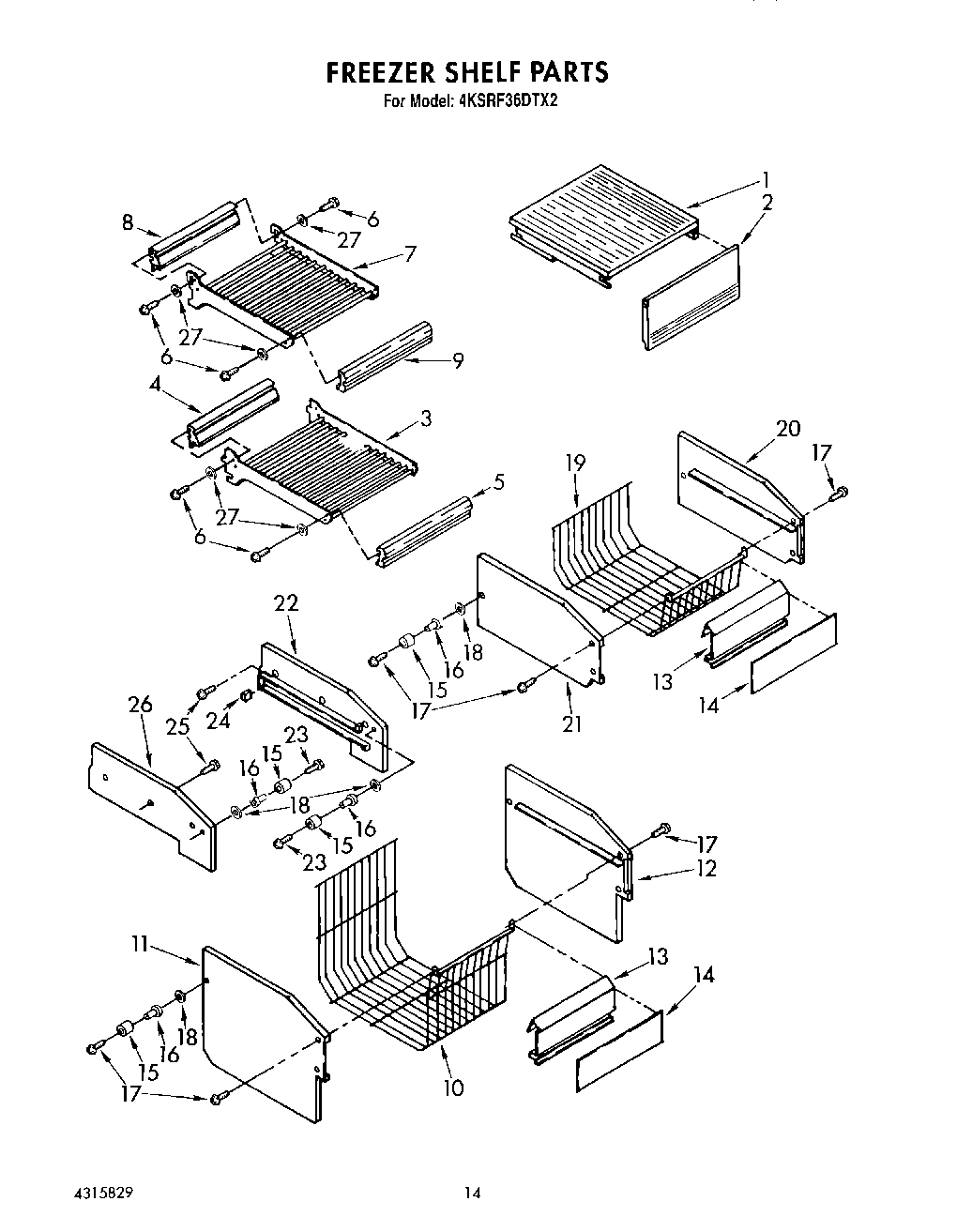

4KSRF36DTX2 09 – FREEZER SHELF

Products

PositionProduct
1Solid Shelf
2Front, Ice Compartment
3Shelf, Fixed (2)
4Reflector, Shelf
5Trim, Shelf
6Screw, 6-32 x 1/2
7Shelf, Cantilever
8Reflector, Shelf
9Trim, Shelf
10Basket (Large)
11Side, Basket (Left Side)
12Side, Basket (Right Side)
13Front, Basket
14Overlay, Front
15Roller
16Eyelet, Roller
17WPW10272364 Whirlpool Refrigerator Screw
18Washer
19Basket (Small)
20Side, Basket (Left Side)
21Side, Basket (Right Side)
22Basket Spacer, Right Side (2)
23WP489261 Whirlpool Refrigerator Screw
24Roller Stop
25SCREW
25W11624204 Whirlpool Screw
26Basket Spacer, Left Side (2)
27Spacer, Shelf
