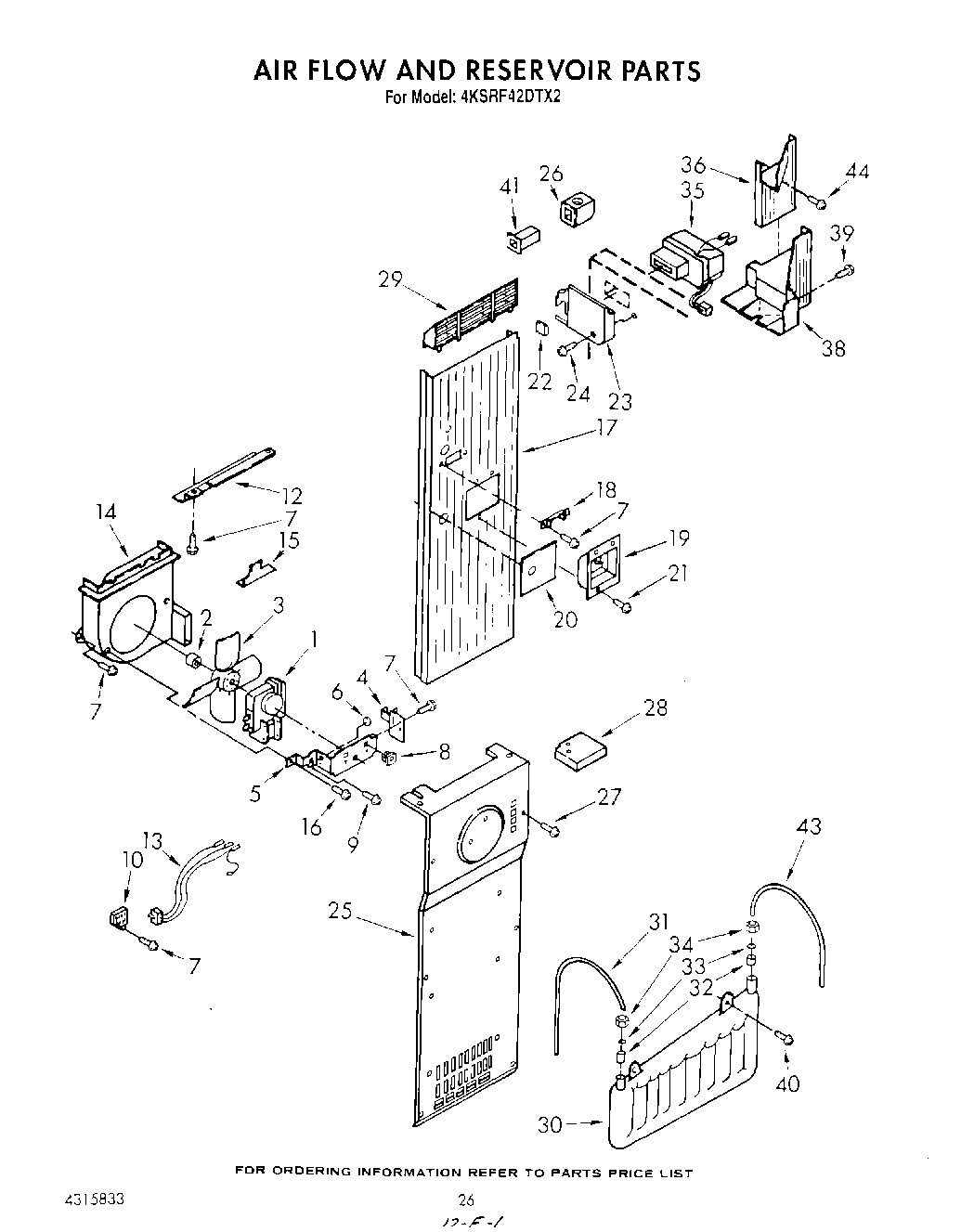

4KSRF42DTX2 16 – AIR FLOW AND RESERVOIR

Products

PositionProduct
1482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
2Ring, Compression
3Blade, Fan
4Fan, Bracket Double
5Fan Bracket, Single
6Grommet (3)
7W11624204 Whirlpool Screw
7SCREW
8Screw Grommet
9WP489128 Whirlpool Refrigerator Screw
10Terminal Block, Multiple
12Channel, Wiring
13Wiring Harness, Fan Motor
14Scroll Fan
15Shield, Scroll
16WP489069 Whirlpool Compactor Screw
17Assembly, Air Duct
18Air Deflector, Icemaker
19Cup, Motor
20Shield
21Fastener (3)
22Gasket, Air Baffle
23Cover, Air Outlet
24Screw, 8-32 x 1-1/2
25Cover, Evaporator
26Connector, Meat Pan Duct
27WP488729 Whirlpool Refrigerator Door Screw
28Baffle, Evaporator
29Diffuser, Air Duct
30WP2256126 Whirlpool Refrigerator Reservoir
31W10823511 Whirlpool Refrigerator Water Tube
324387491 Whirlpool Refrigerator Insert
33“O“ Ring Seal
34Nut, Compression
35Assembly, Air Baffle
36Insulation, Air Diffuser
38Cover, Air Diffuser
39WP489174 Whirlpool Refrigerator Screw
40Screw, 8 x 1-1/2
41Tube, Meat Pan
44WP488163 Whirlpool Refrigerator Screw
