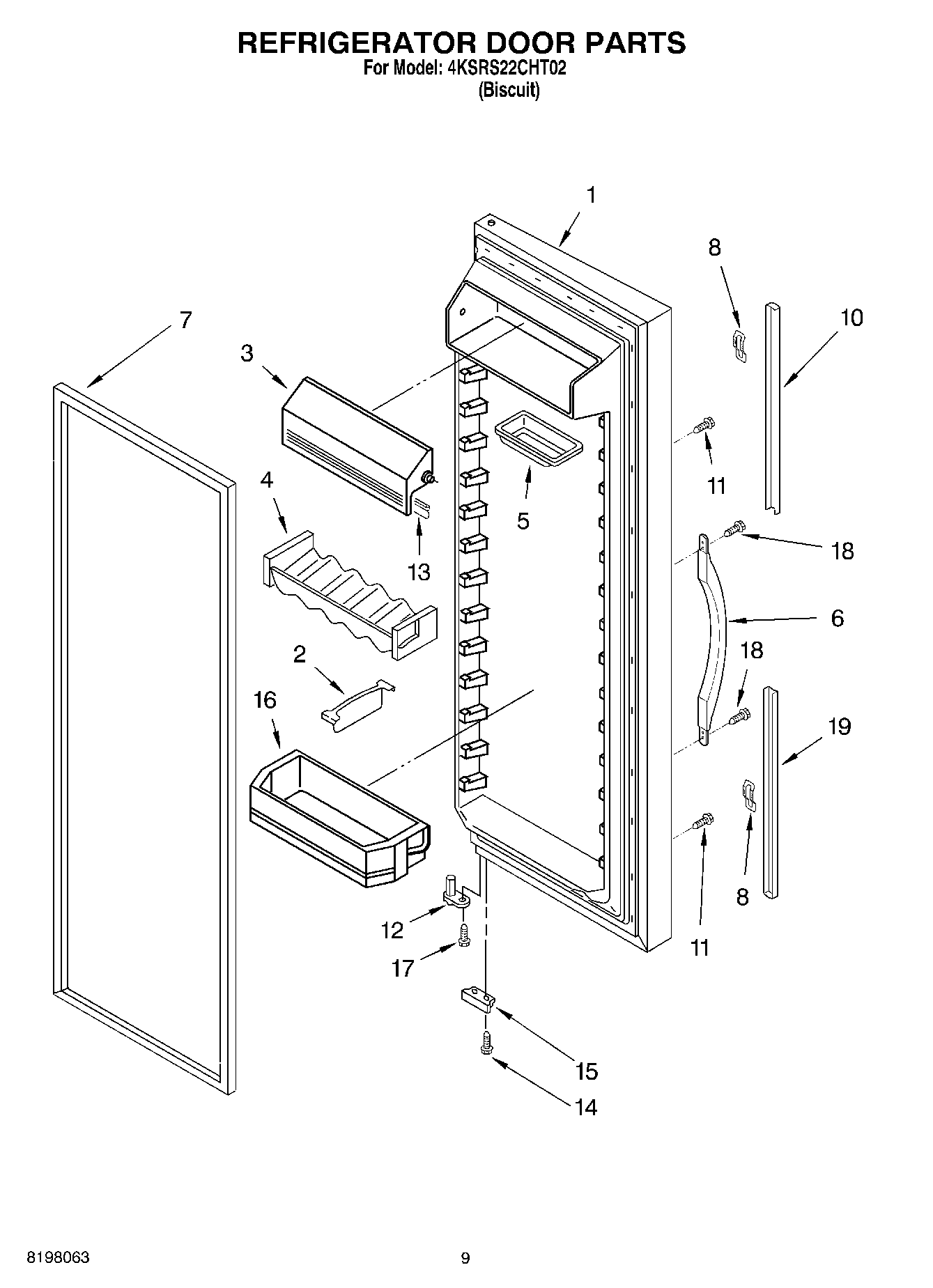

4KSRS22CHT02 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes 7) (Biscuit)
2Divider, Bin
3WP2313637 Whirlpool Cutting Grid Assembly
4Beverage Holder
5Butter Tray
6Handle (Biscuit)
72159073 Whirlpool Refrigerator Door Gasket
8WP2195327 Whirlpool Refrigerator Clip
10Trim, Door-Top (Biscuit)
11WP3400852 Whirlpool Refrigerator Screw
12WP2182179 Whirlpool Cam Closer
13Gasket, Door Compartment
14WP489483 Whirlpool Screw
15Bracket, Door Stop
16Bin, Door Shelf
17WP3400012 Whirlpool Refrigerator Screw
18WP489491 Whirlpool Refrigerator Screw
19Trim, Door-Bottom (Biscuit)
