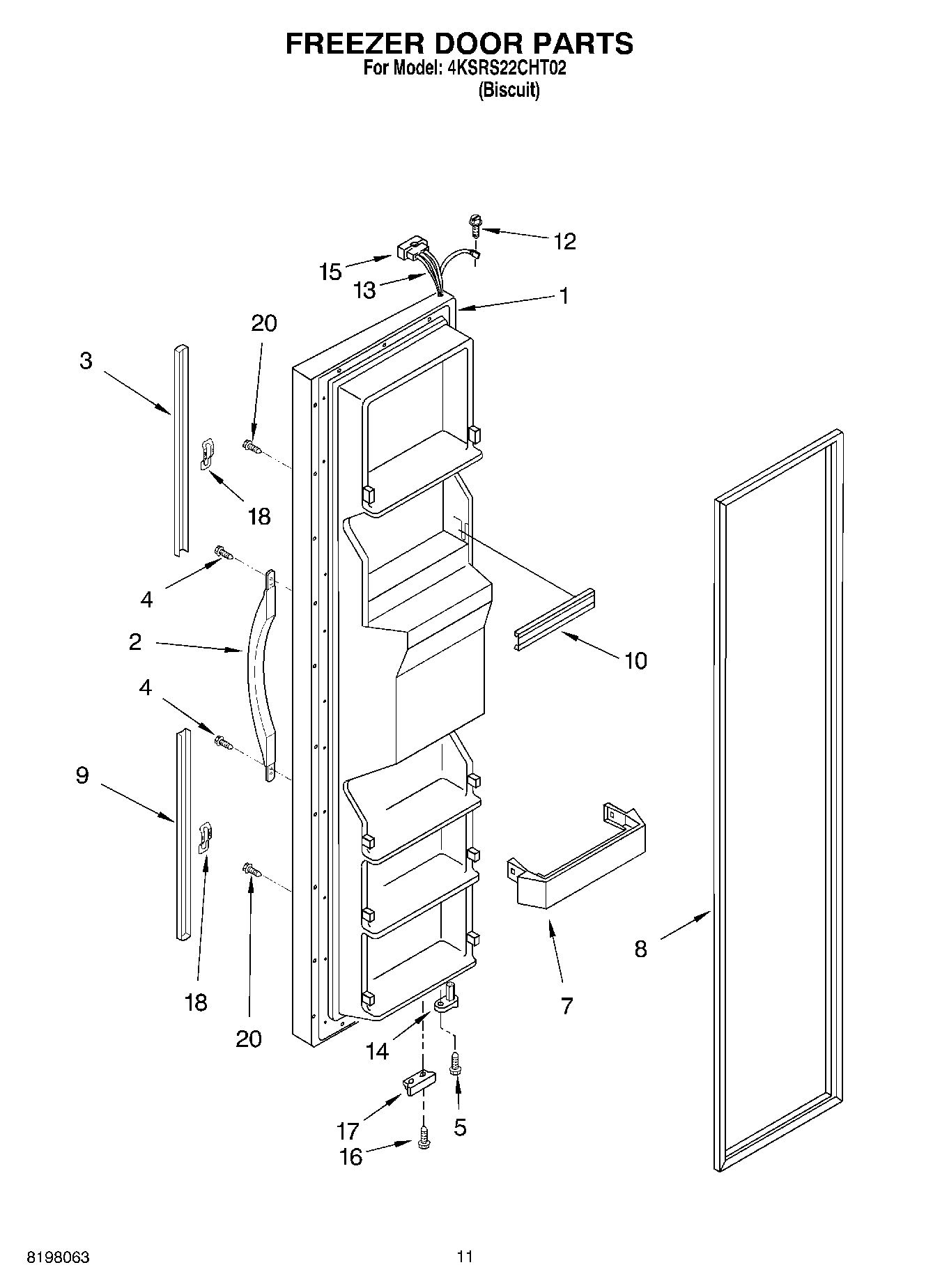

4KSRS22CHT02 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
2Handle (Biscuit)
3Trim, Door-Top (Biscuit)
4WP489491 Whirlpool Refrigerator Screw
5WP3400012 Whirlpool Refrigerator Screw
7Trivet, Shelf (4)
82159072 Whirlpool Refrigerator FIP Gasket
9Trim, Door-Bottom (Biscuit)
10WPW10307490 Whirlpool Door Trim Assembly
12WP489128 Whirlpool Refrigerator Screw
13Wire Assembly
14WP2182179 Whirlpool Cam Closer
15WP2154473 Whirlpool Refrigerator Connector
16WP489483 Whirlpool Screw
17Bracket, Door Stop
18WP2195327 Whirlpool Refrigerator Clip
20WP3400852 Whirlpool Refrigerator Screw
