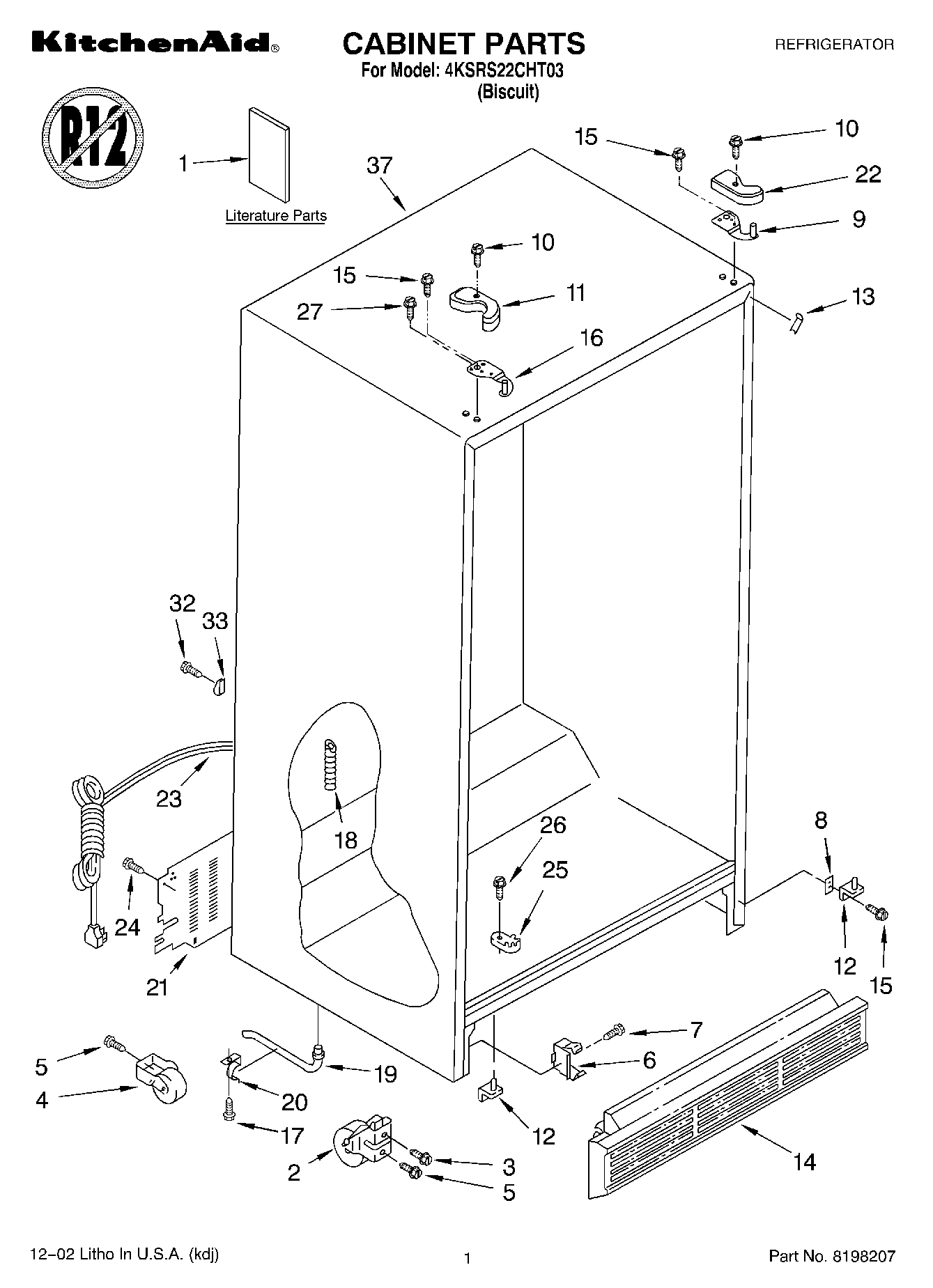

4KSRS22CHT03 01 – CABINET PARTS

4KSRS22CHT03 01 – CABINET PARTS

Written by

in

4KSRS22CHT03 01 – CABINET PARTS

Products

PositionProduct
1LITERATURE PARTS (Use & Care Guide)
1LITERATURE PARTS (Service & Wiring Sheet)
1WPL LIT628371
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8WP2209697 Whirlpool Refrigerator Shim
9WP2203771 Whirlpool Refrigerator Door Hinge
10WP8281227 Whirlpool Screw
112203407T Whirlpool Refrigerator Cover
128201707 Whirlpool Door Hinge
13Filler, Wrapper (Biscuit)
14Grille (Biscuit)
16WP2203770 Whirlpool Refrigerator Door Hinge
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19WP1108438 Whirlpool Refrigerator Extension
20WP1108439 Whirlpool Refrigerator Clip
21Cover, Unit
22Hinge Cover (Biscuit)
23Service Cord
25WPW10329686 Whirlpool Door Cam Black
26WP489483 Whirlpool Screw
27WP489128 Whirlpool Refrigerator Screw
32WP489497 Whirlpool Screw
33489348 Whirlpool Refrigerator Tube Clamp
37Cabinet (Not A Serviceable Part)
