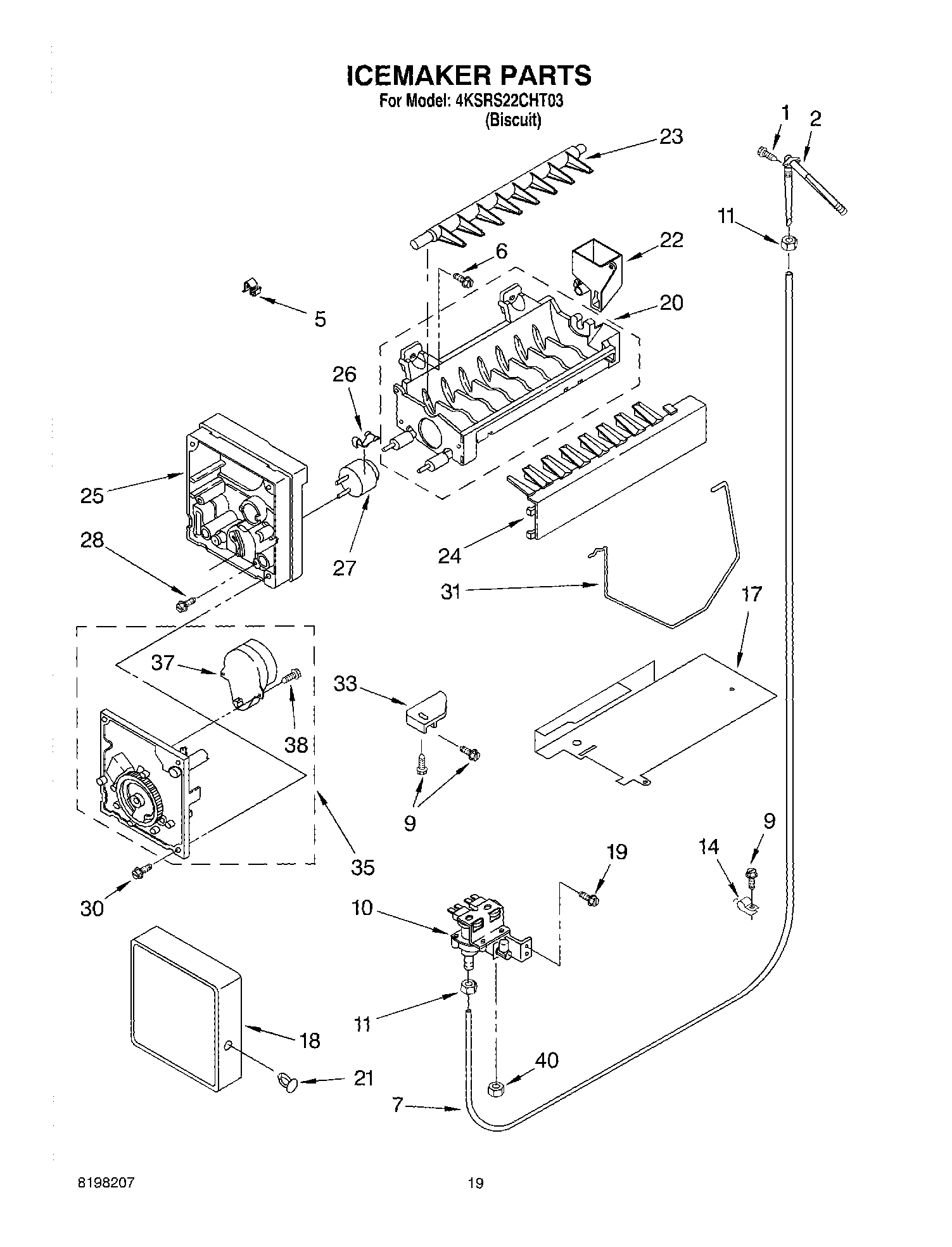

4KSRS22CHT03 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

4KSRS22CHT03 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Written by

in

4KSRS22CHT03 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
WPL ARI14188A5
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Torx Key
WP542638 Whirlpool Refrigerator Grease
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
833938 Whirlpool Refrigerator Terminal
606755 Whirlpool Refrigerator Bag
511873 Whirlpool Refrigerator Paint
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
WPL ARI14187A2
WPL ARI14186A5
WPL ARI14185A7
WPL ARI14184A6
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
WPL 876029
WPL 799833
Enamel, Black (1 Qt. Uncut)
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
350930 Whirlpool White Spray Paint
WPW10312301 Whirlpool Refrigerator Ice Container
350942 Whirlpool Spray Paint
212643 Whirlpool Refrigerator Permagum Sealer
2W11505385 Whirlpool Refrigerator Chute
5WP628379 Whirlpool Refrigerator Clip
6WP488163 Whirlpool Refrigerator Screw
7W10823511 Whirlpool Refrigerator Water Tube
9WP489478 Whirlpool Refrigerator Screw
10Valve, Solenoid
11WP627018 Whirlpool Refrigerator Nut
14WP488366 Whirlpool Refrigerator Clamp
172256178 Whirlpool Shield Assembly
18WPW10289690 Whirlpool Ice Maker Cover
19WPW10141625 Whirlpool Refrigerator Screw Assembly
20WPW10122523 Whirlpool Refrigerator Ice Mold
21WP489115 Whirlpool Refrigerator Rivet
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24WP2182124 Whirlpool Refrigerator Stripper Arm
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
288533917 Whirlpool Refrigerator Screw
30WP681249 Whirlpool Screw Assembly
31W11342242 Whirlpool Refrigerator Ice Level Arm
33W11500948 Whirlpool Refrigerator Bracket
35W10190933 Whirlpool Refrigerator Motor Assembly
38489136 Whirlpool Refrigerator Screw
40Nut, Compression
