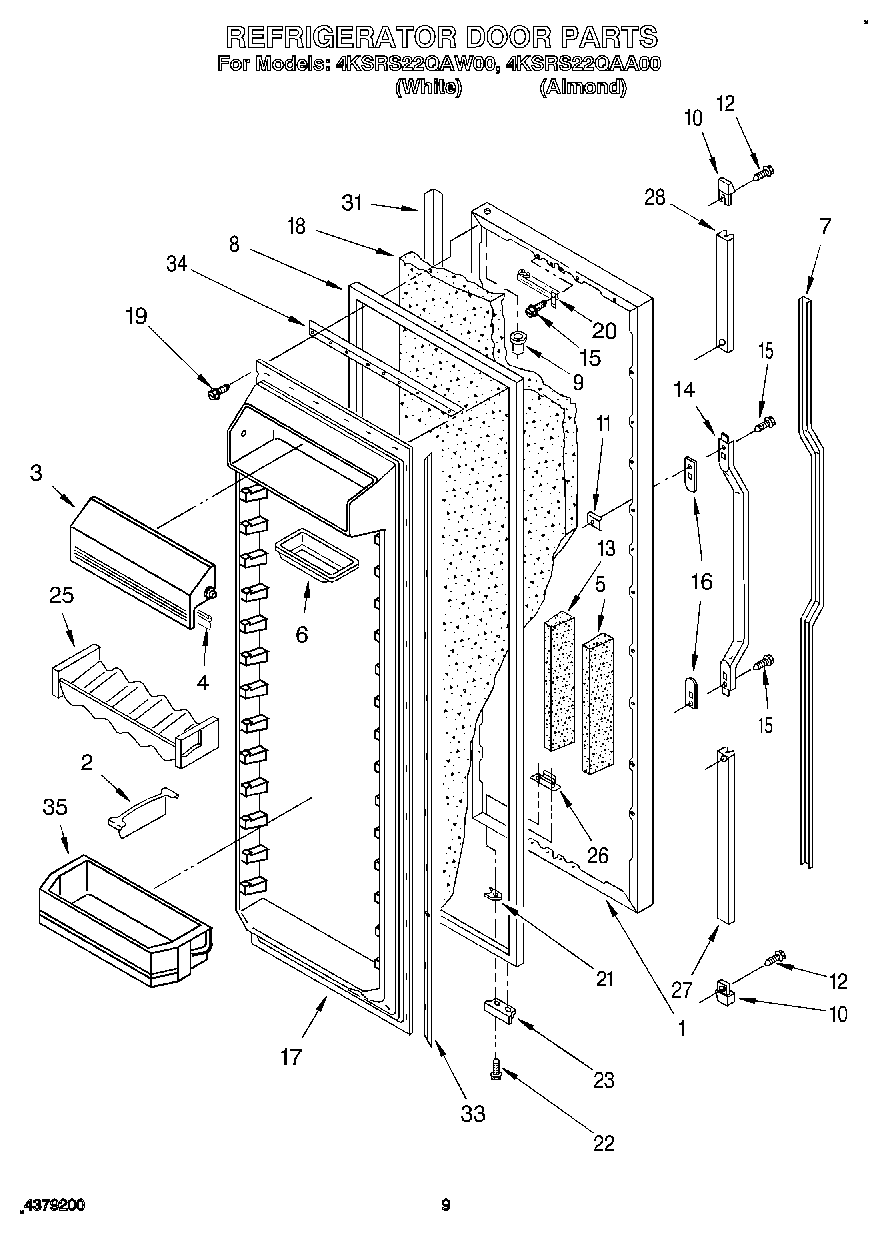

4KSRS22QAA00 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Almond (Also Order Item 18))
1	Refrigerator, Door Panel (White)
2	WPL 1117999
3	Door, Compartment (Includes No.4)
4	Gasket, Utility Door
5	Dike, Door Handle Side
6	Butter, Tray
7	Insert, Handle (White)
7	Insert, Handle (Almond)
8	2188404A Whirlpool Refrigerator Door Gasket
9	Cap, Hinge Sleeve (2)
10	End Cap (2)
11	Screw Anchor (2)
12	Screw
13	Dike, Door Hinge Side
14	Handle
15	WP488729 Whirlpool Refrigerator Door Screw
16	Spacer, Handle
17	Panel, Interior Door
18	WPL 876029
20	Door Closer, Upper Cam
21	WP1104787 Whirlpool Refrigerator Shim
22	WP489069 Whirlpool Compactor Screw
23	Bracket, Door Stop
25	WPL 1125981
26	Tap Plate
27	Retainer, Insert
28	Retainer, Insert
31	Trim, Door
33	Retainer, Gasket
34	Gasket Retainer, Top & Bottom
35	Trim Kit Trim Kit Panel
35	Handle Insert (Black)
35	Trim Kit Panel (White)
35	Black Grille Kit
35	Almond Handle Insert
35	Bin, Door Shelf Deep. Wide
35	Woodgrain
