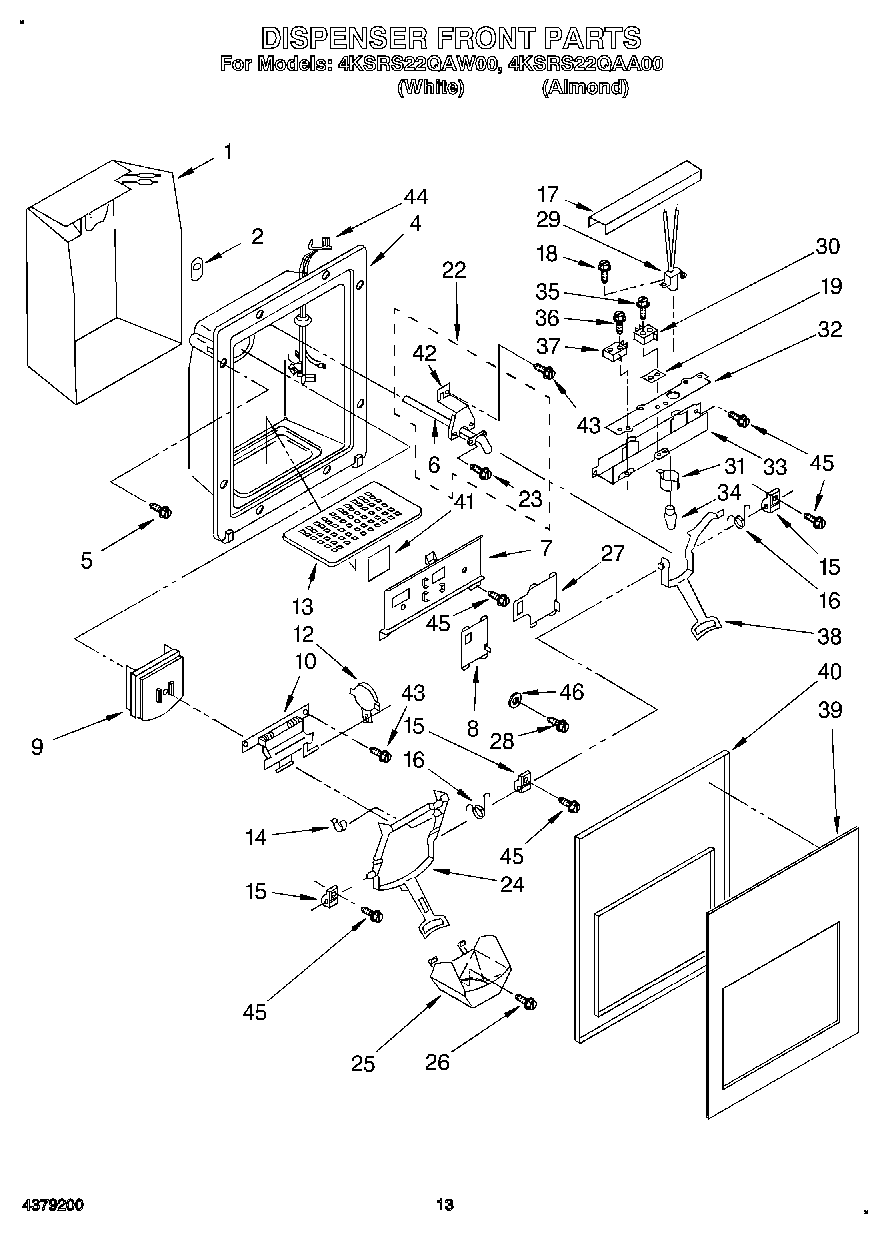

4KSRS22QAW00 08 – DISPENSER FRONT

Products

Position	Product
1	Heater, Dispenser
2	Grommet
4	Housing Dispenser (For Almond Model)
4	Housing, Dispenser
5	W11693756 Whirlpool Screw Assembly
6	Tube, Water (See Item No.22)
7	Frame, Slides (Almond)
7	Frame, Slides
8	Slide, Cube/Crush Switch
8	Slide, Cube/Crush Switch (Almond)
9	Door, Ice
10	Door Mechanism Assembly (Includes Item 9)
11	Wire Connector
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow (Almond)
13	Grille, Overflow (White)
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
19	Spacer, Switch (2)
22	WP4388152 Whirlpool Refrigerator Fitting
23	WP965173 Whirlpool Dishwasher Screw
24	Lever Assembly, Ice Dispenser (Almond)
24	Lever Assembly, Ice Dispenser (White)
25	Guide, Ice (Almond)
25	Guide, Ice
26	Screw
27	Slide, Light Switch (Almond)
27	Slide, Light Switch
28	Screw
29	Lamp Holder
30	WP2162361 Whirlpool Switch
31	Shroud, Bracket
32	Insulator, Control Bracket
33	Bracket, Control
34	Bulb, Light
35	Screw, 4-40 x 1
36	Screw,
37	814037 Whirlpool Microwave Switch
38	Lever Assembly, Water Dispenser (White)
38	WPL 2159198
39	Insert, Cover (Almond)
39	Insert, Cover (White)
40	Cover, Housing (Inc
40	Cover, Housing (Includes Item 39) (White)
41	Heat Shield, Frame
42	Bracket, Water
43	Screw, 8-18 x 3/4
44	Wiring Harness, Door
45	WP3400906 Whirlpool Refrigerator Screw
46	Washer
