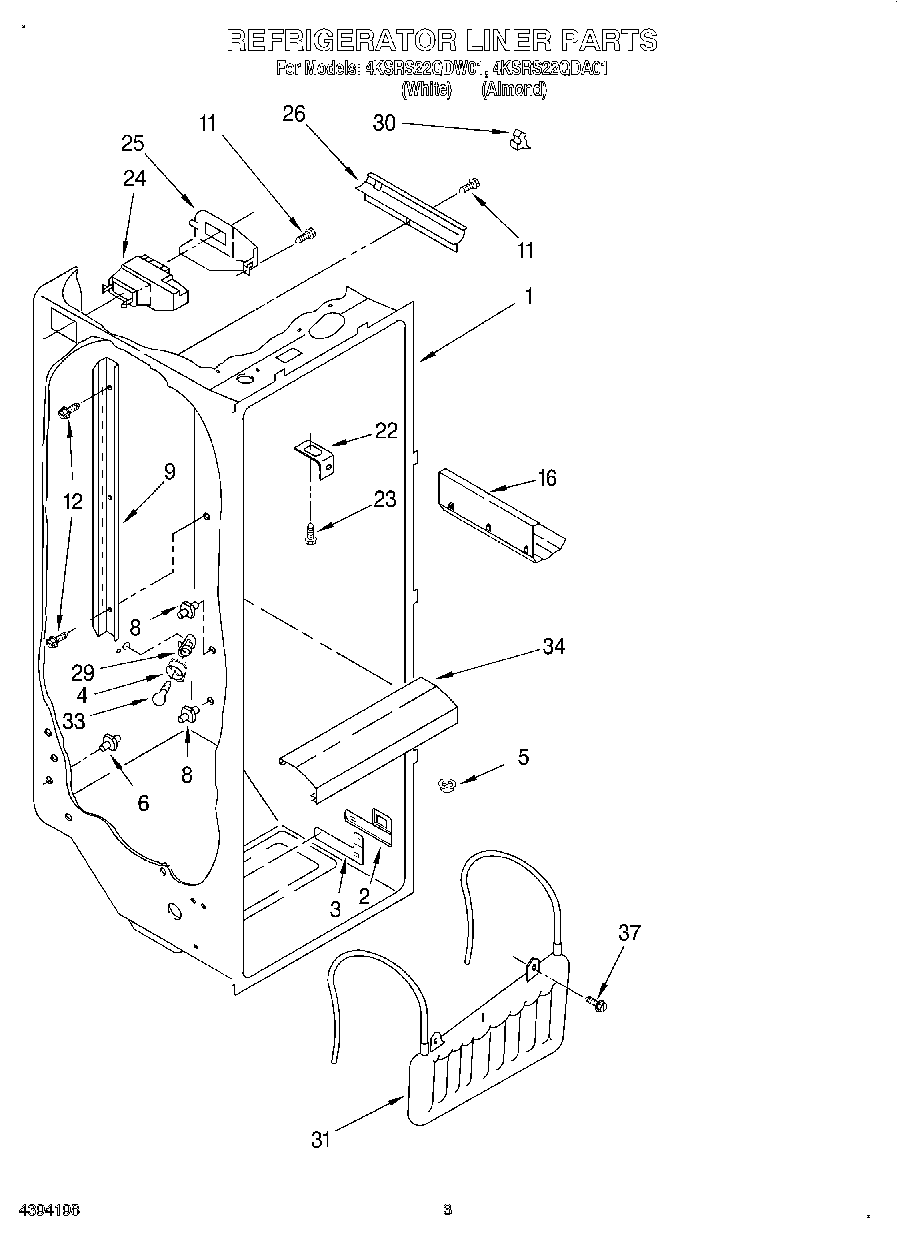

4KSRS22QDA01 02 – REFRIGERATOR LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Escutcheon, Meat Pan Control
3	2182757 Whirlpool Refrigerator Slide
4	WP2175210 Whirlpool Refrigerator Shroud
5	2171846 Whirlpool Refrigerator Release Valve
6	4388539 Whirlpool Refrigerator Shelf Stud
8	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
9	Ladder, Shelf
11	W10759522 Whirlpool Screw
12	WP488729 Whirlpool Refrigerator Door Screw
16	W10777924 Whirlpool Refrigerator Wine Rack
22	WP2256085 Whirlpool Refrigerator Retainer
23	WP488488 Whirlpool Refrigerator Screw
24	WPW10151374 Whirlpool Refrigerator Diffuser
25	2152019 Whirlpool Refrigerator Cover
26	2150331 Whirlpool Refrigerator Wire Cover
29	4387478 Whirlpool Refrigerator Light Socket
30	2215823 Whirlpool Refrigerator Clip
31	WP2256126 Whirlpool Refrigerator Reservoir
33	WP67002552 Whirlpool Refrigerator Light Bulb
34	Light Lens
37	Screw (2)
