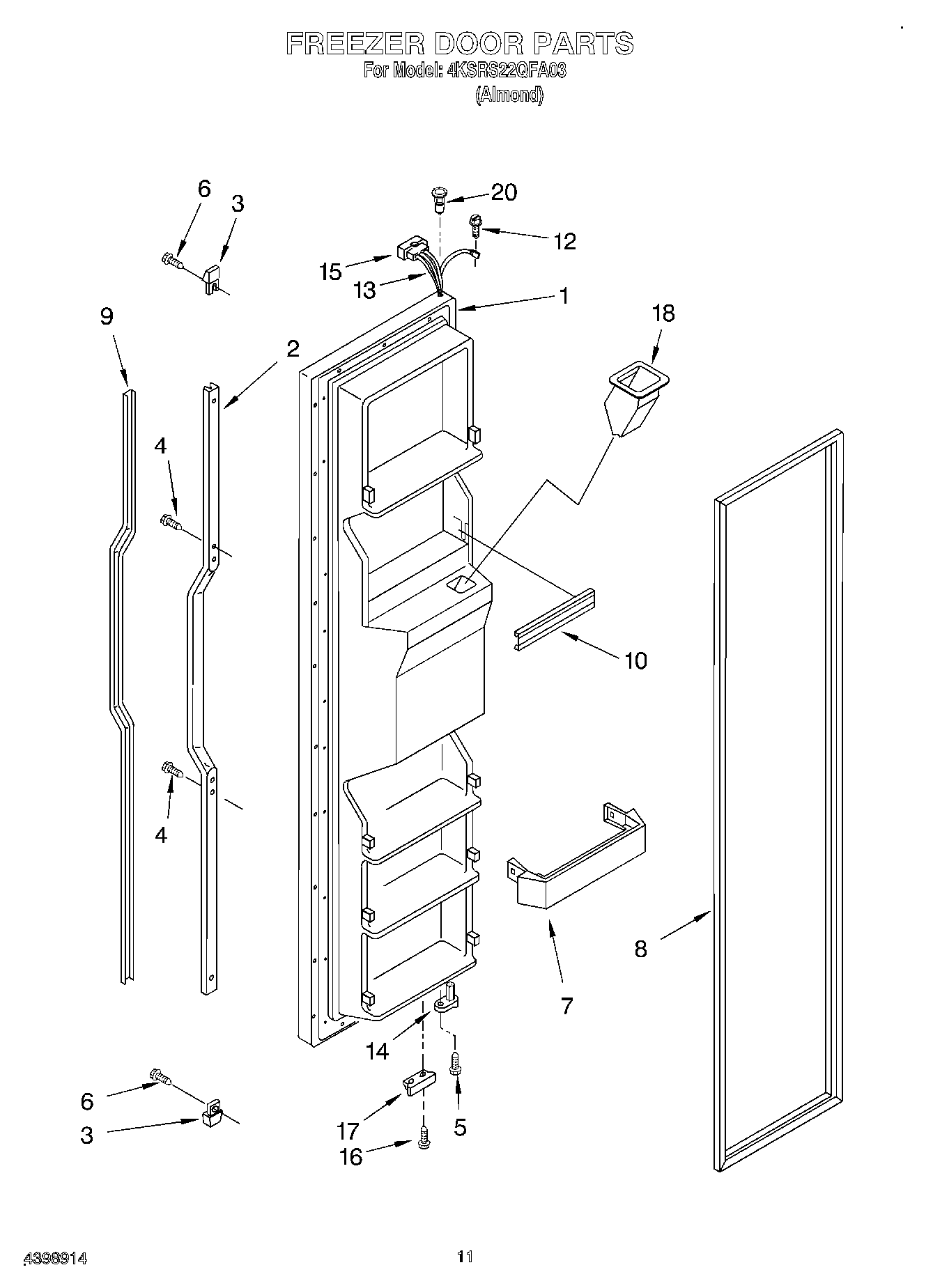

4KSRS22QFA03 07 – FREEZER DOOR

4KSRS22QFA03 07 – FREEZER DOOR

Written by

in

4KSRS22QFA03 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.8 And Dispenser Front Parts) (Almond)
2Retainer, Handle (Almond)
3End Cap, Handle (Almond)
4WP489463 Whirlpool Refrigerator Screw
5WP3400012 Whirlpool Refrigerator Screw
6WP3400852 Whirlpool Refrigerator Screw
7Trivet, Shelf (4)
82159072 Whirlpool Refrigerator FIP Gasket
9Insert, Handle (Almond)
10WPW10307490 Whirlpool Door Trim Assembly
12WP489128 Whirlpool Refrigerator Screw
13Wire Harness
14WP2182179 Whirlpool Cam Closer
15WP2154473 Whirlpool Refrigerator Connector
16WP489483 Whirlpool Screw
17Bracket, Door Stop (Chrome)
18Chute, Ice
20WP2182181 Whirlpool Refrigerator Thimble
