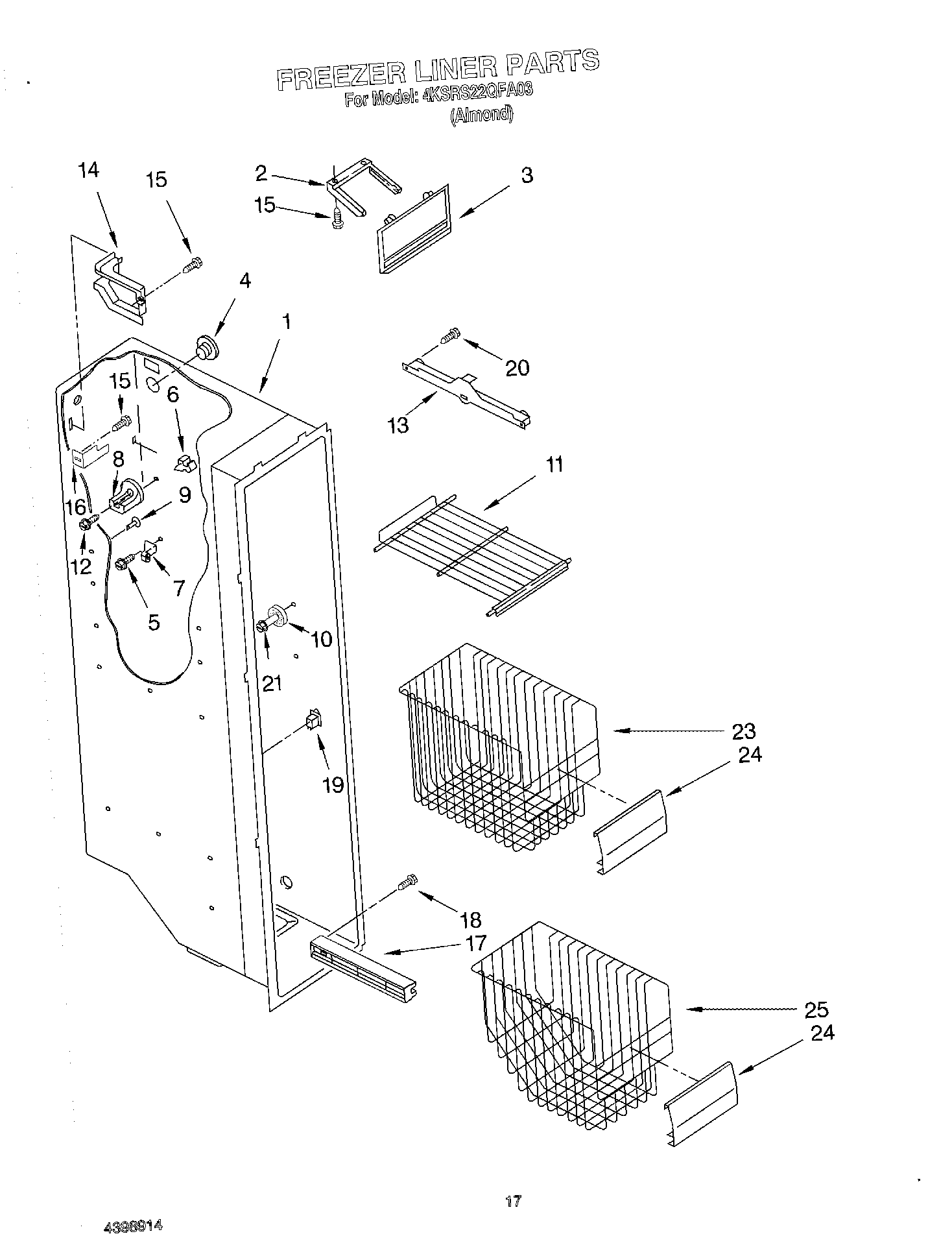

4KSRS22QFA03 10 – FREEZER LINER

4KSRS22QFA03 10 – FREEZER LINER

Written by

in

4KSRS22QFA03 10 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Ice Door
32171712 Whirlpool Refrigerator Ice Door
4940014 Whirlpool Refrigerator Primary Button Plug
5W10142289 Whirlpool Air Conditioner Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Stud, Rear
9Grommet
10WP2196483 Whirlpool Refrigerator Shelf Stud
11WP2174249K Whirlpool Refrigerator Wire Shelf
12WP3400806 Whirlpool Screw
13W10845583 Whirlpool Refrigerator Track
13W10845585 Whirlpool Refrigerator Track
14Cover, Wiring
15SCREW
16Bracket, Fill Tube
17Slide, Basket (Right Side (2))
17Slide, Basket (Left Side (2))
18W10759522 Whirlpool Screw
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20718257 Whirlpool Dishwasher Screw
23Basket, Tall
24Basket, Front
25Freezer Bin
