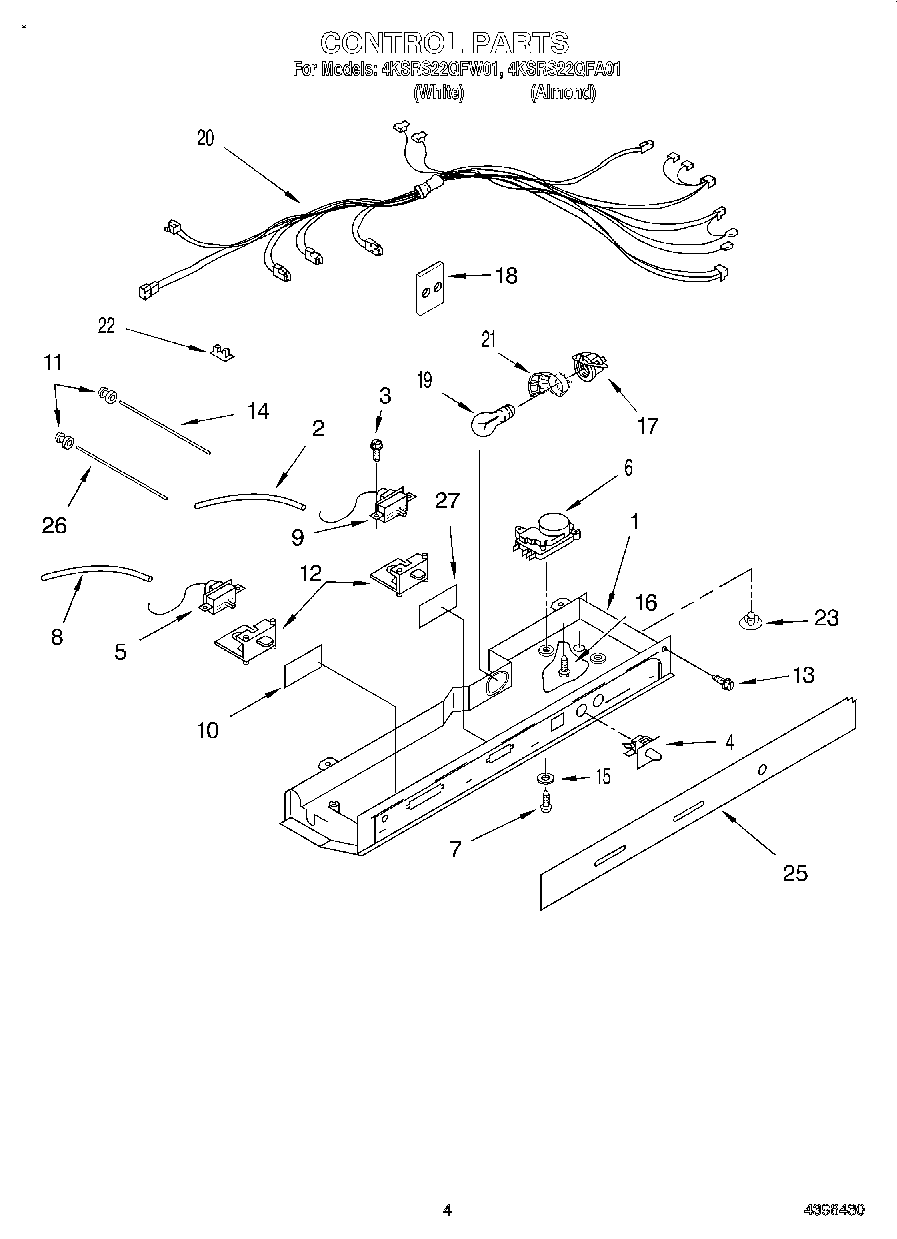

4KSRS22QFW01 03 – CONTROLadmin2025-04-26T13:05:52+00:004KSRS22QFW01 03 – CONTROL ProductsPositionProduct12200135 Whirlpool Refrigerator Control Box2WP2196003 Whirlpool Refrigerator Bar Riser32006254 Whirlpool Refrigerator Screw4WP2149705 Whirlpool Refrigerator Door Switch5WP2182770 Whirlpool Refrigerator Thermostat6WP2166867 Whirlpool Refrigerator Defrost Timer7489392 Whirlpool Refrigerator Screw9WP2161460 Whirlpool Refrigerator Thermostat102172940 Whirlpool Window11Grommet, Light Fiber122161466 Whirlpool Refrigerator Slide14Fiber Optic15Washer16WP488488 Whirlpool Refrigerator Screw174387478 Whirlpool Refrigerator Light Socket182172931 Whirlpool Refrigerator Shield19WP67002552 Whirlpool Refrigerator Light Bulb20Control Box Harness21WP2175210 Whirlpool Refrigerator Shroud22CLIP, WIRING23Hole Plug25Escutcheon, Control Box26Light Bar (FC)27Window
