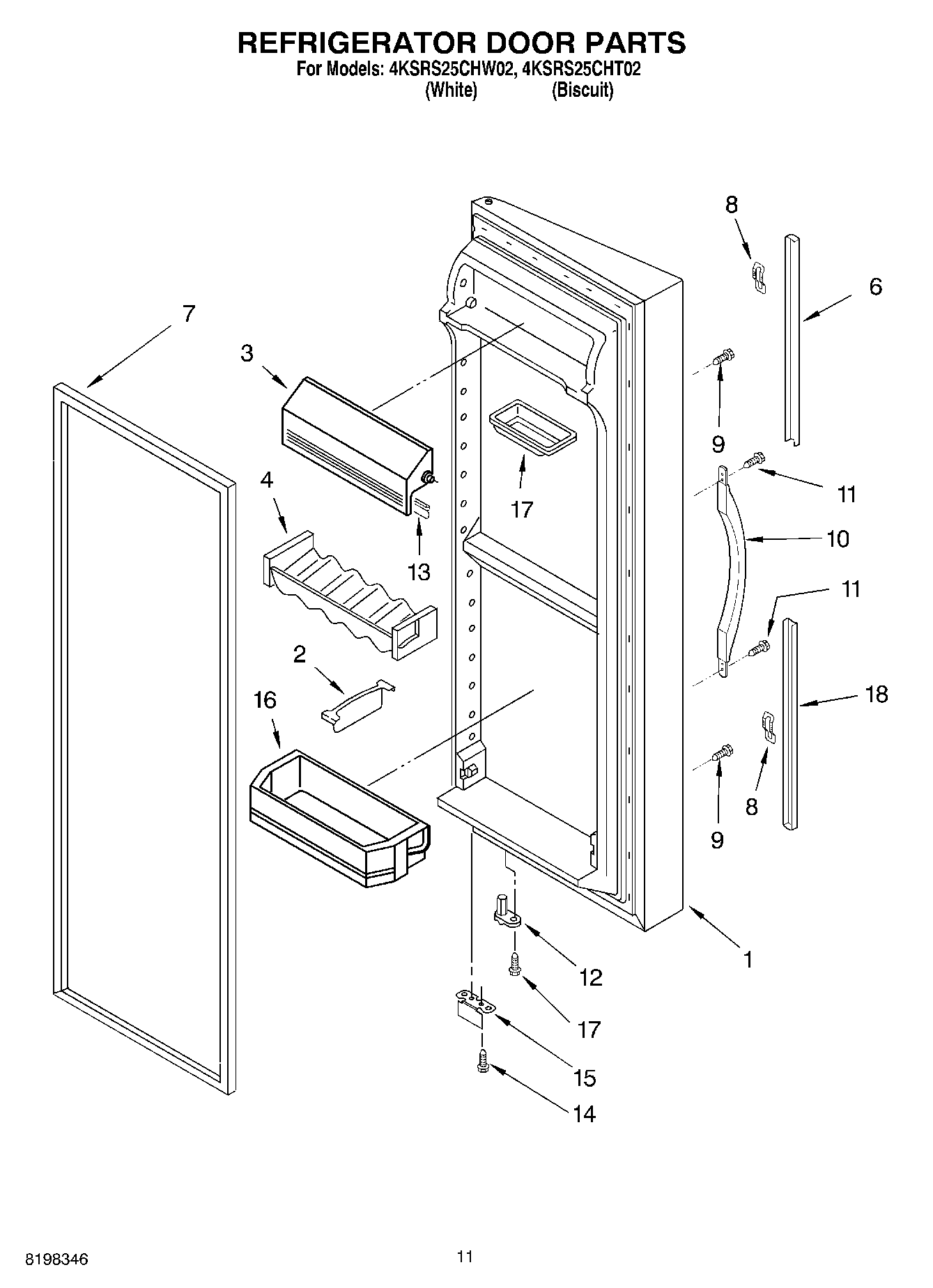

4KSRS25CHT02 07 – REFRIGERATOR DOOR

4KSRS25CHT02 07 – REFRIGERATOR DOOR

Written by

in

4KSRS25CHT02 07 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes 7) (White)
1Refrigerator Door (Includes 7) (Biscuit)
2Divider, Bin
3WP2313637 Whirlpool Cutting Grid Assembly
4Beverage Holder
5Butter Tray
6Trim, Door-Top (Biscuit)
6Trim, Door-Top (White)
72159075 Whirlpool Door Gasket Seal
8WP2195327 Whirlpool Refrigerator Clip
9WP3400852 Whirlpool Refrigerator Screw
10Handle (Biscuit)
10Handle (White)
11WP489491 Whirlpool Refrigerator Screw
12WP2182179 Whirlpool Cam Closer
13Gasket, Door Compartment
14WP489483 Whirlpool Screw
15Bracket, Door Stop
16Bin, Door Shelf
17WP3400012 Whirlpool Refrigerator Screw
18Trim, Door-Bottom (White)
18Trim, Door-Bottom (Biscuit)
