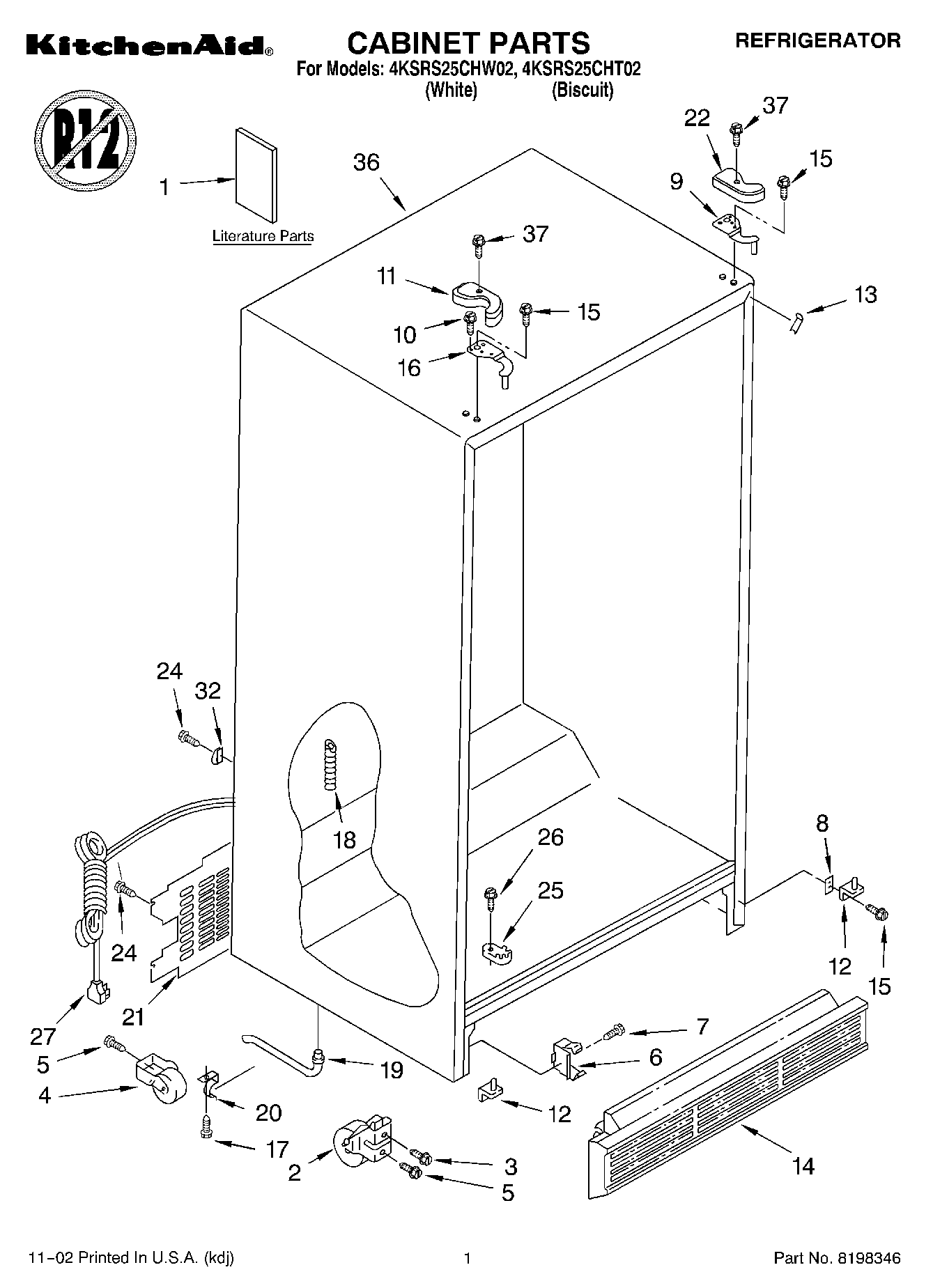

4KSRS25CHW02 01 – CABINET, LITERATURE

Products

Position	Product
1	LITERATURE PARTS (Use & Care Guide)
1	LITERATURE PARTS (Service & Wiring Sheet)
1	WPL LIT628371
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP2209697 Whirlpool Refrigerator Shim
8	WP2181911 Whirlpool Refrigerator Shim
9	WP2203771 Whirlpool Refrigerator Door Hinge
10	WP489128 Whirlpool Refrigerator Screw
11	2203407T Whirlpool Refrigerator Cover
11	WP2203407W Whirlpool Refrigerator Cover
12	8201707 Whirlpool Door Hinge
13	Filler, Wrapper (White)
13	Filler, Wrapper (Biscuit)
14	W10283947 Whirlpool Grille Assembly
14	WPW10283946 Whirlpool Refrigerator Grille
15	WP489497 Whirlpool Screw
16	WP2203770 Whirlpool Refrigerator Door Hinge
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	WP1108438 Whirlpool Refrigerator Extension
20	WP1108439 Whirlpool Refrigerator Clip
21	Cover, Unit
22	WP2203408W Whirlpool Refrigerator Cover
22	Hinge Cover (Biscuit)
25	WPW10329686 Whirlpool Door Cam Black
26	WP489483 Whirlpool Screw
27	Service Cord
32	489348 Whirlpool Refrigerator Tube Clamp
33	WPW10272364 Whirlpool Refrigerator Screw
36	Cabinet (Not A Serviceable Part)
37	WP8281227 Whirlpool Screw
