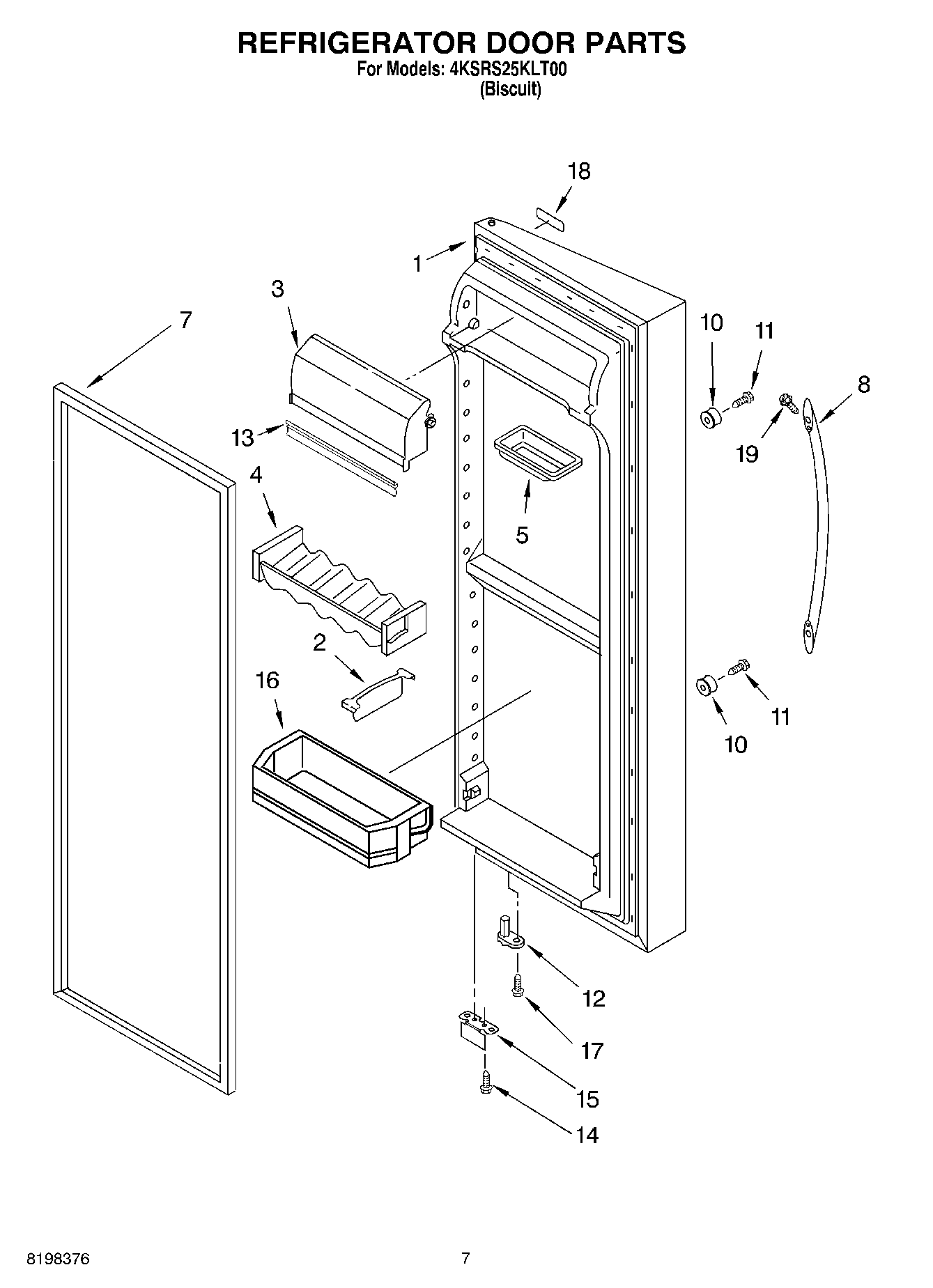

4KSRS25KLT00 05 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item No.6) (Biscuit)
2Divider, Bin
3WP2313637 Whirlpool Cutting Grid Assembly
4Beverage Holder
5Butter Tray
72159075 Whirlpool Door Gasket Seal
8Handle (Biscuit)
10Stud, Handle
11WP488163 Whirlpool Refrigerator Screw
12WP2182179 Whirlpool Cam Closer
13Gasket, Door Compartment
14WP489483 Whirlpool Screw
15Bracket, Door Stop
16Bin, Door Shelf
17WP3400012 Whirlpool Refrigerator Screw
18Nameplate (Biscuit)
19Setscrew, 10-32
