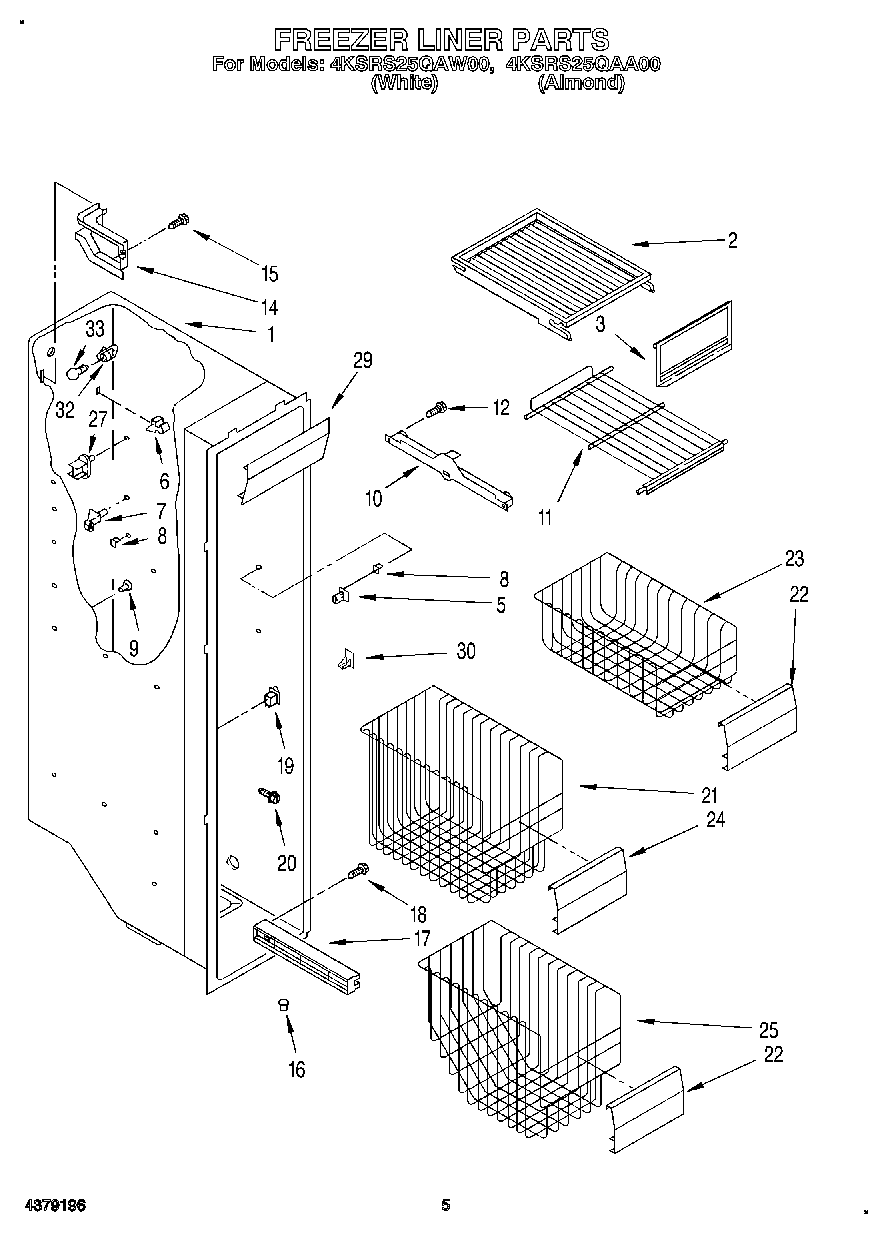

4KSRS25QAA00 04 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Shelf, Top Compartment
3	Door, Ice Compartment
5	Stud, Front R.S.
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	Stud, Support
9	Grommet (8)
10	W10845585 Whirlpool Refrigerator Track
10	W10845583 Whirlpool Refrigerator Track
11	Shelf
12	718257 Whirlpool Dishwasher Screw
14	Cover, Wiring
15	WP488729 Whirlpool Refrigerator Door Screw
16	Drain Ferrule
17	Shelf Track (Right Side (4))
17	Shelf Track (Left Side (4))
18	W11693756 Whirlpool Screw Assembly
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	WP489478 Whirlpool Refrigerator Screw
21	Basket, Middle
22	Front, Basket
23	Basket, Upper
24	Front, Basket
25	Basket, Lower
27	Stud, Shelf (4)
29	Light Lens
30	Stud, Rear R.S.
32	4387478 Whirlpool Refrigerator Light Socket
33	WP67002552 Whirlpool Refrigerator Light Bulb
